No. Name
Description
4 Bottom handles
2, used to move the inverter.
5
Mounting ears 4, used to hang the inverter onto the mounting-bracket.
6
Wiring area
DC switches, DC terminals, and communication terminals.
For details, refer to "5.2 Terminal Description".
7 Labels
To clearly identify the product, including nameplate, warning
symbols and QR code.
Dimensions
The following figure shows the dimensions of the inverter.

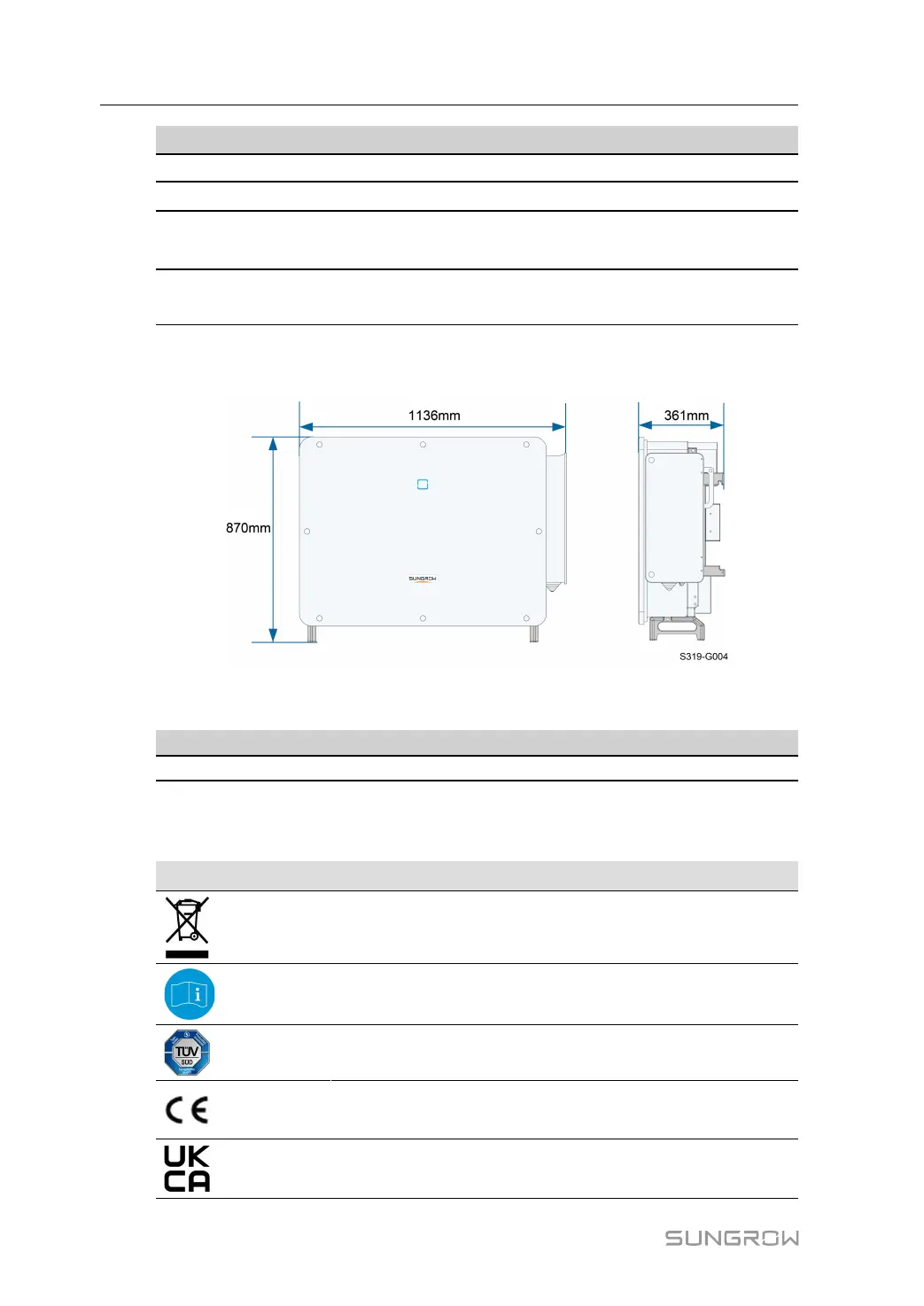

figure 2-3 Dimensions of the Inverter(in mm)
Weight
Model Weight
SG285HX / SG320HX / SG333HX / SG350HX ≤ 116 kg
2.3 Symbols on the Product
Symbol Explanation
Do not dispose of the inverter together with household waste.
Read the user manual before maintenance!
TUV mark of conformity.
CE mark of conformity.
EU/EEA Importer
UKCA mark of conformity.
The height of the label should not exceed 5 mm.
2 Product Description User Manual
