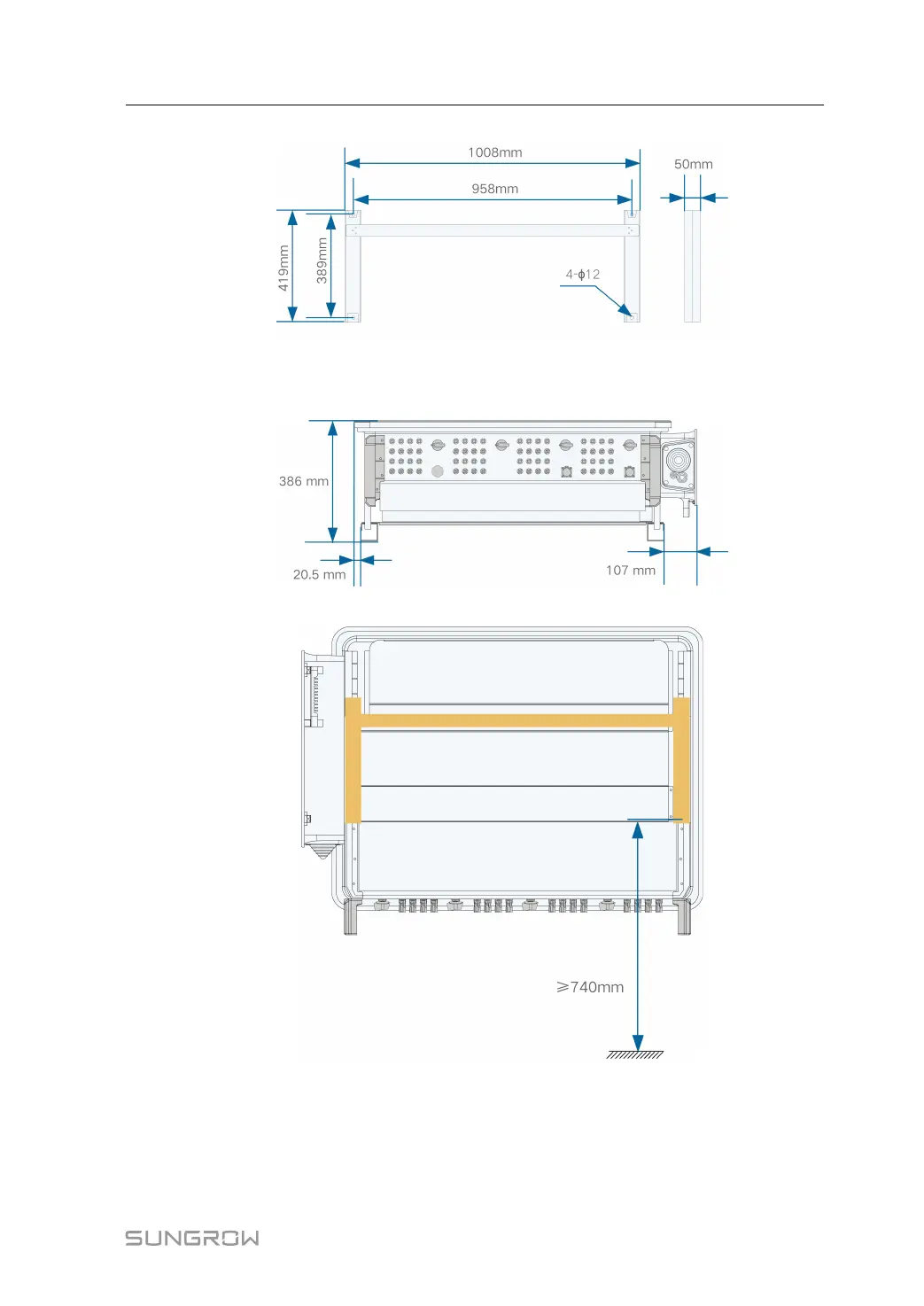

figure 4-1 Dimensions of mounting-bracket
Install the inverter to the mounting-bracket, and dimensions after installation are as follows.
figure 4-2 Dimensions of inverter installed to mounting-bracket
figure 4-3 Distance from mounting-bracket bottom to ground
4.5.1 Bracket-Mounted Installation
Tools
