35
4.6 Installing the Inverter
Tools
Item Specification
Phillips screwdriver M6
Spare parts
Item Quantity Specification Source
Grub screw 2 M6×65 Delivery scope

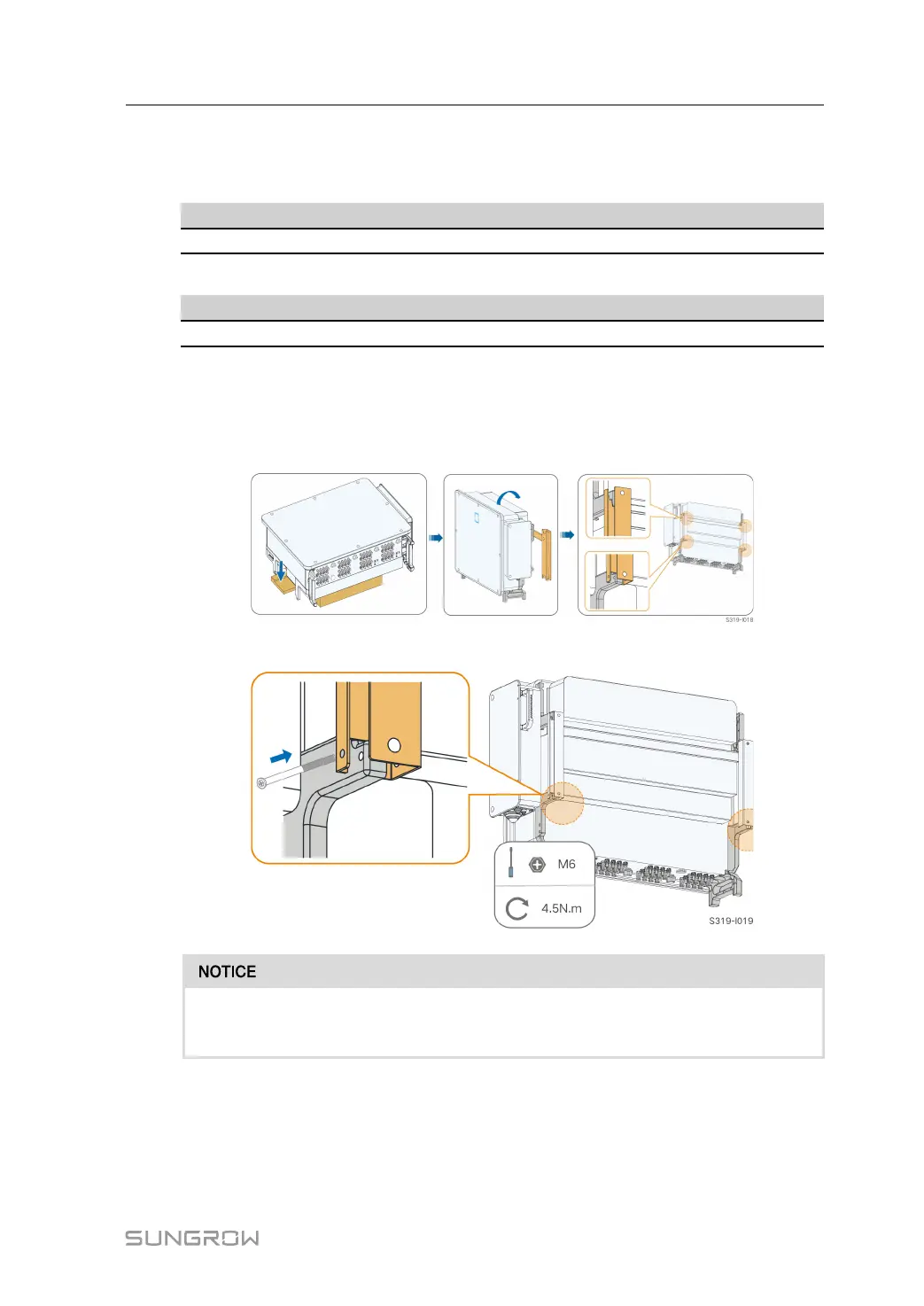

step 1 Hoist the inverter to the installation position when necessary (refer to "4.4.2 Hoisting Trans-
port"). If the installation position is not high enough, skip this step.
step 2 Remove the bottom cushion and lift the inverter onto the mounting-bracket, making sure that
the mounting ears fit well into the grooves of the mounting bracket.
step 3 Fix the inverter with screws.
It is necessary to secure the left and right sides of the inverter to the mounting-
bracket with screws, otherwise the inverter may become unstable.
- - End
User Manual 4 Mechanical Mounting
