30

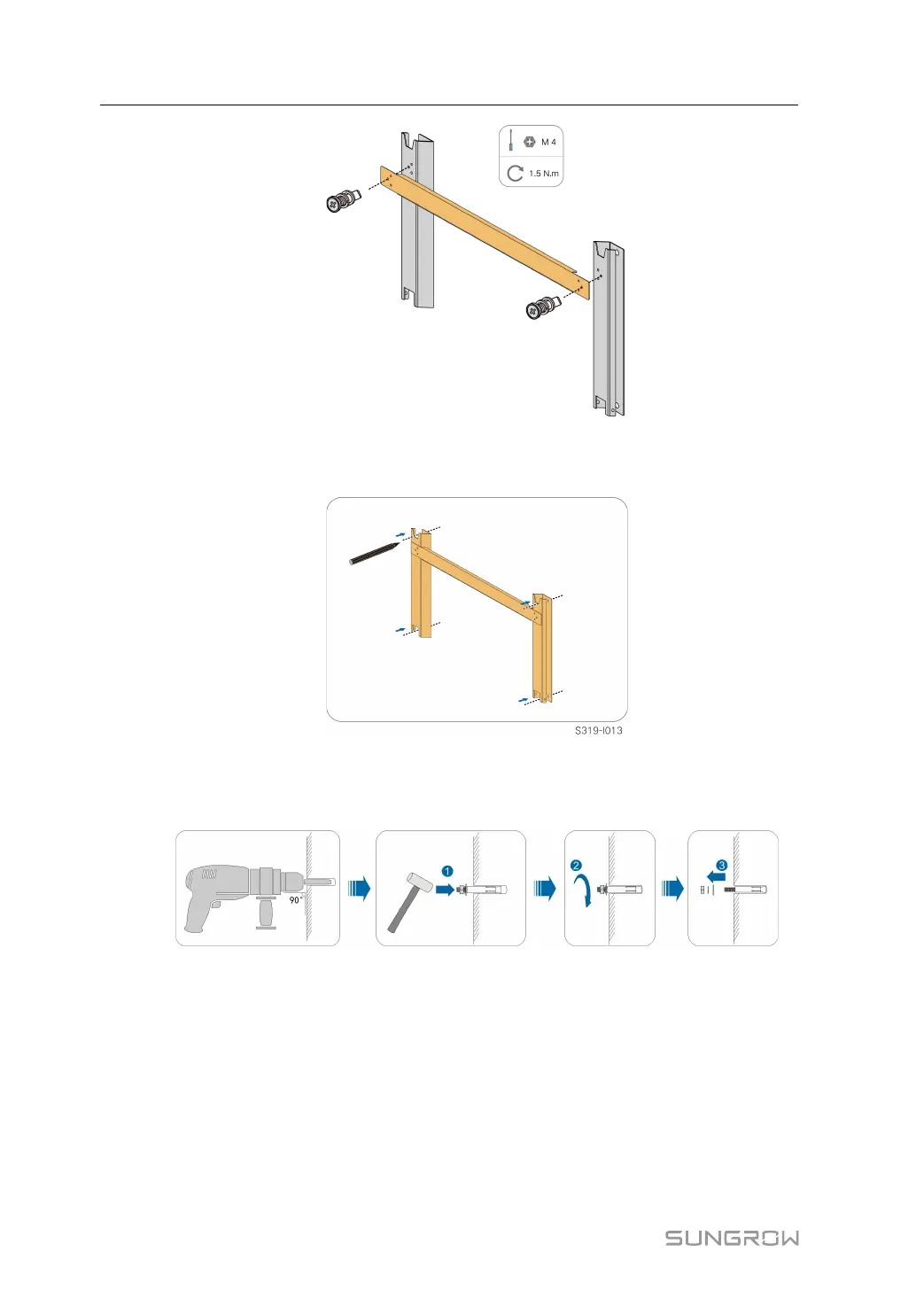

step 2 Level the assembled mounting-bracket by using the level, and mark the positions for drilling
holes on the installation site.
step 3 Drill the holes by using a hammer drill. Insert the expansion bolts into the holes and secure
them with a rubber hammer. Fasten the nut with a wrench to expand the bolt. Remove the
nut, spring washer, and flat washer, and store them properly.
step 4 Fix the mounting-bracket with the expansion bolts.
4 Mechanical Mounting User Manual
