31

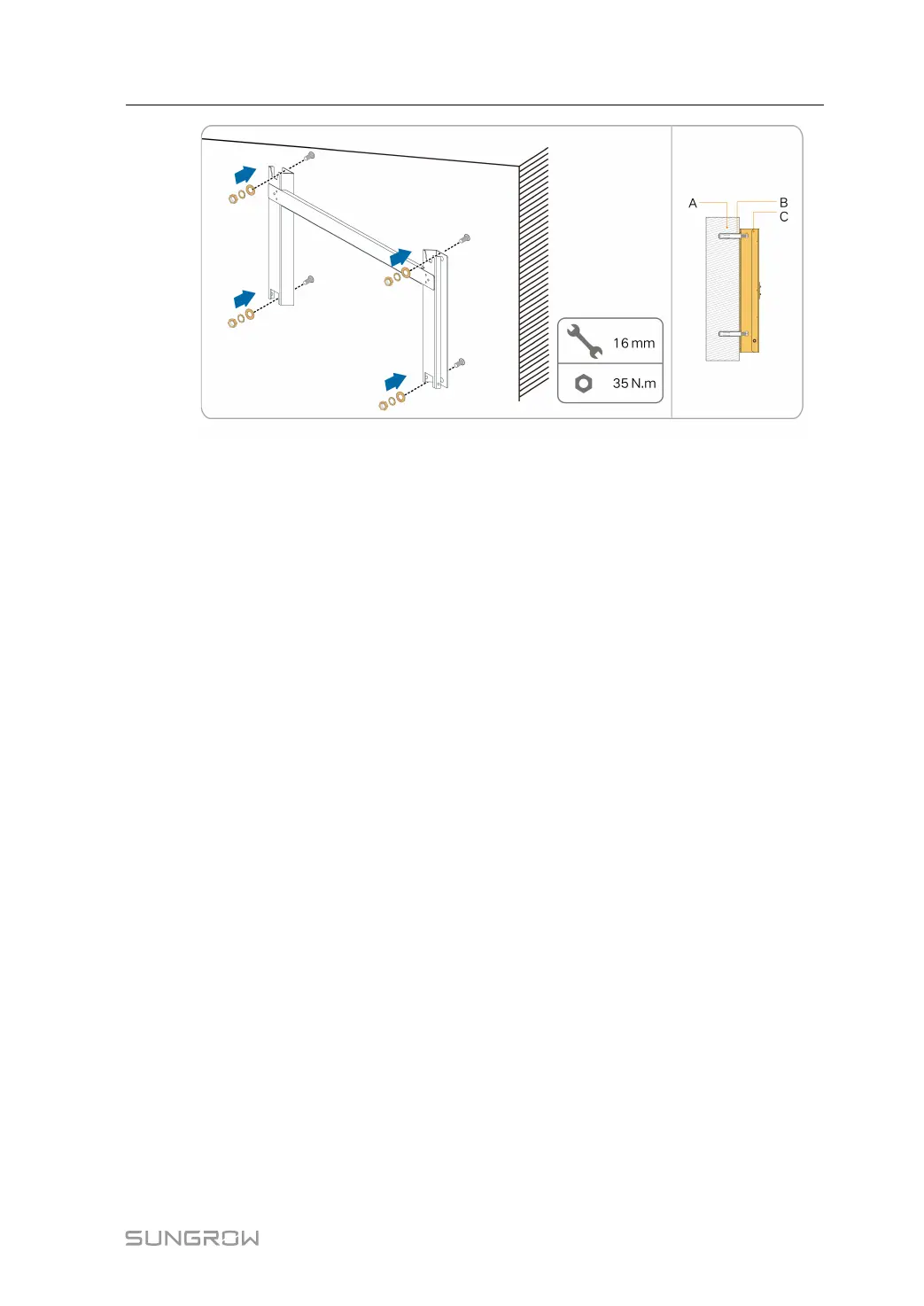

(A) Wall (B) Expansion bolt (C) Mounting-bracket
step 5 Fix the baffle plate to the wall with the expansion bolts.
User Manual 4 Mechanical Mounting
