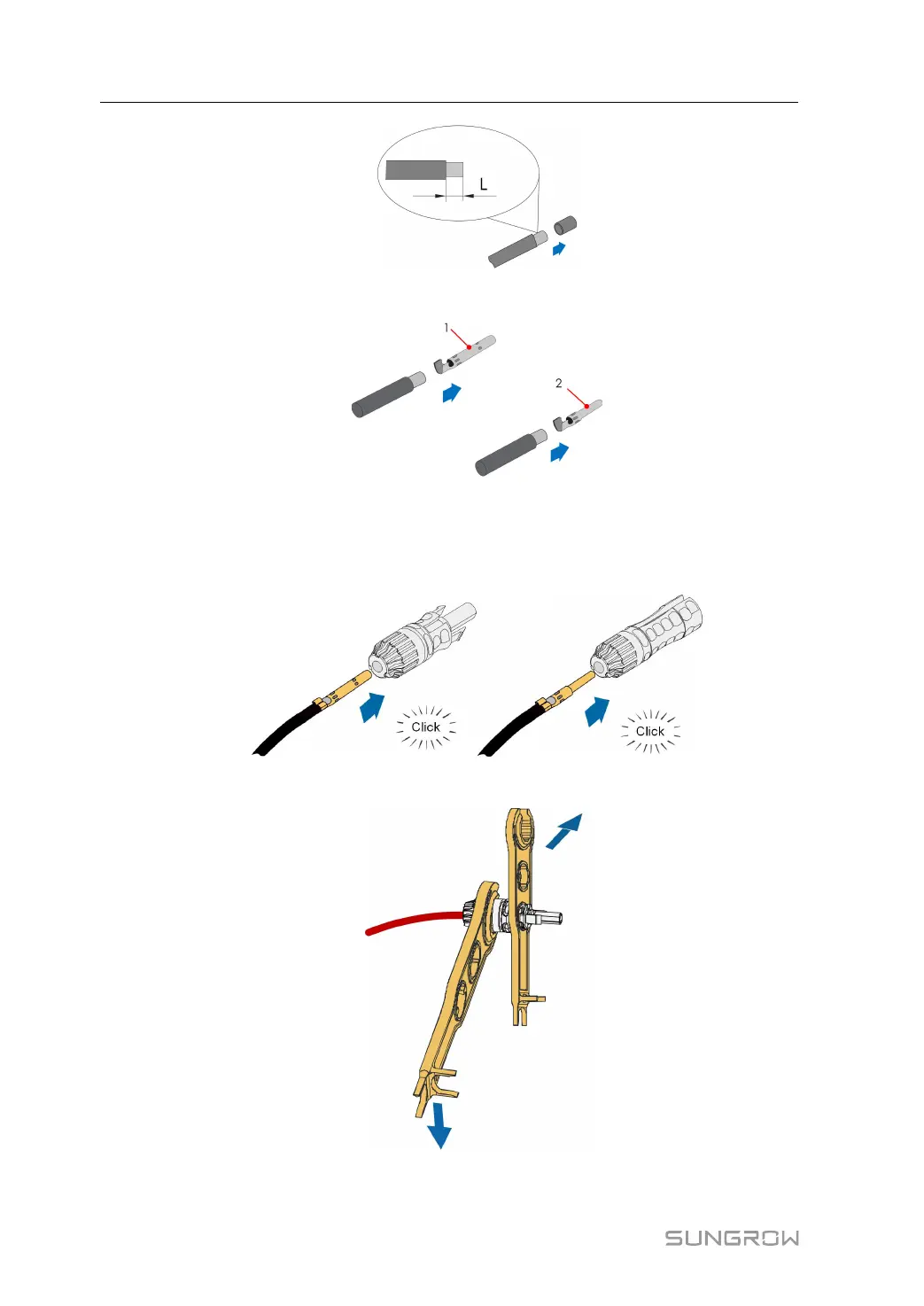

step 2 Assemble the cable ends with the crimping pliers.
1: Positive crimp contact 2：Negative crimp contact
step 3 Lead the cable through cable gland, and insert the crimp contact into the insulator until it
snaps into place. Gently pull the cable backward to ensure firm connection.
step 4 Tighten the cable gland and the insulator.
step 5 Check for polarity correctness.
5 Electrical Connection User Manual
