Sungrow SG320HX - Page 77

67

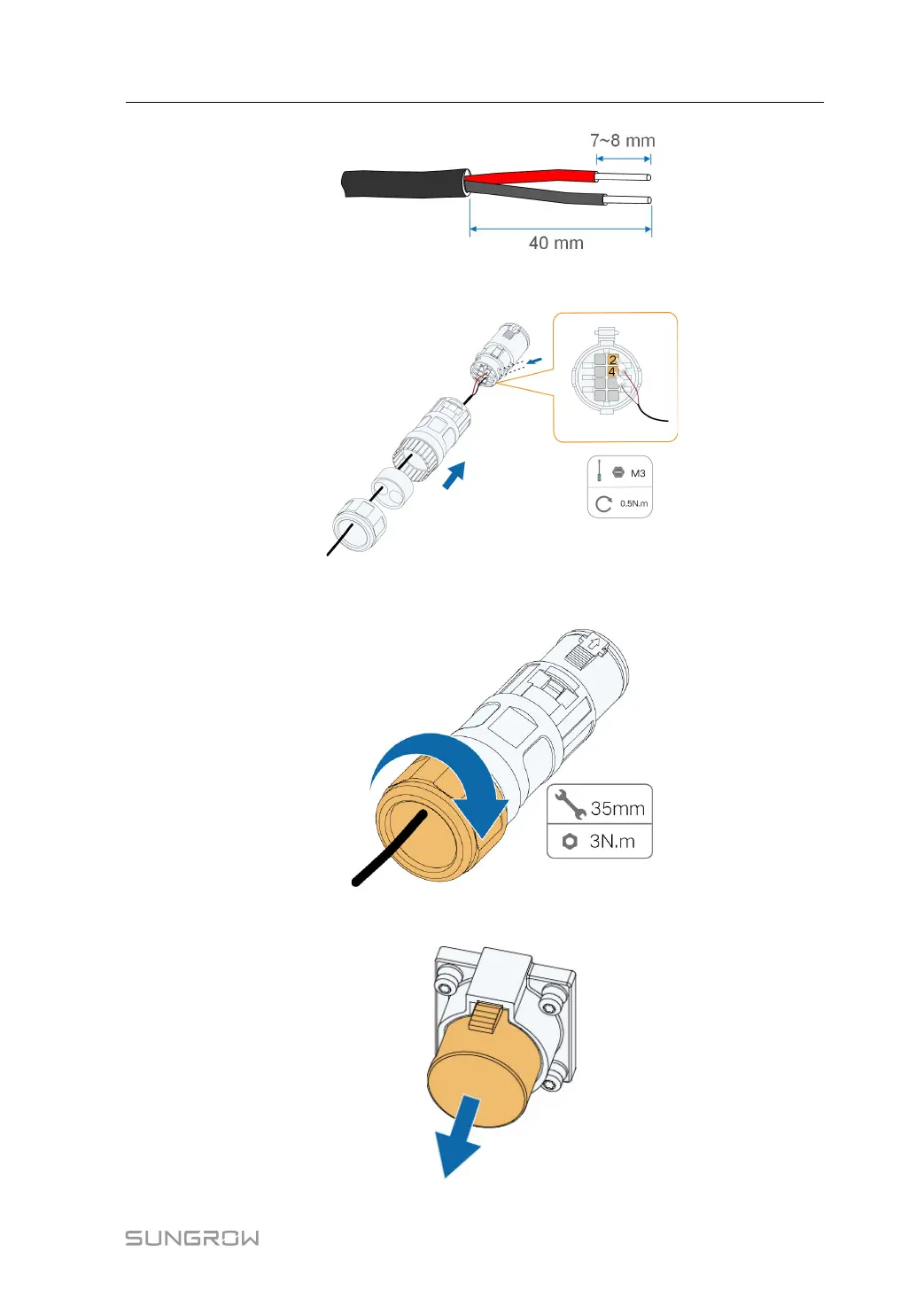

step 5 Secure the wires to corresponding terminals.
step 6 Pull cables outwards to confirm whether they are fastened firmly, then tighten the swivel nut
with appropriate torque.
step 7 Remove the waterproof lid from the communication terminal COM1.
User Manual 5 Electrical Connection
