94
PPaarraammeetteerrss SSGG3366CCXX--UUSS SSGG6600CCXX--UUSS
ACconnection type
OT (#6 - 2/0AWG,
Cu or Al )
OT (#5 - 2/0AWG, Cu or
Al )
Compliance
UL1741, UL 1741 SA, CA Rule 21, IEEE 1547,
IEEE 1547.1, CSA C22.2, No.107.1-01, UL
1699B and FCC Part 15, UL1998, Rule 14, NEC
2019, Sunspec Rapid Shutdown
Grid Support
LVRT, HVRT, active & reactive power control
and power ramp rate control
* Night power consumption excludes the optional power from PID recovery.

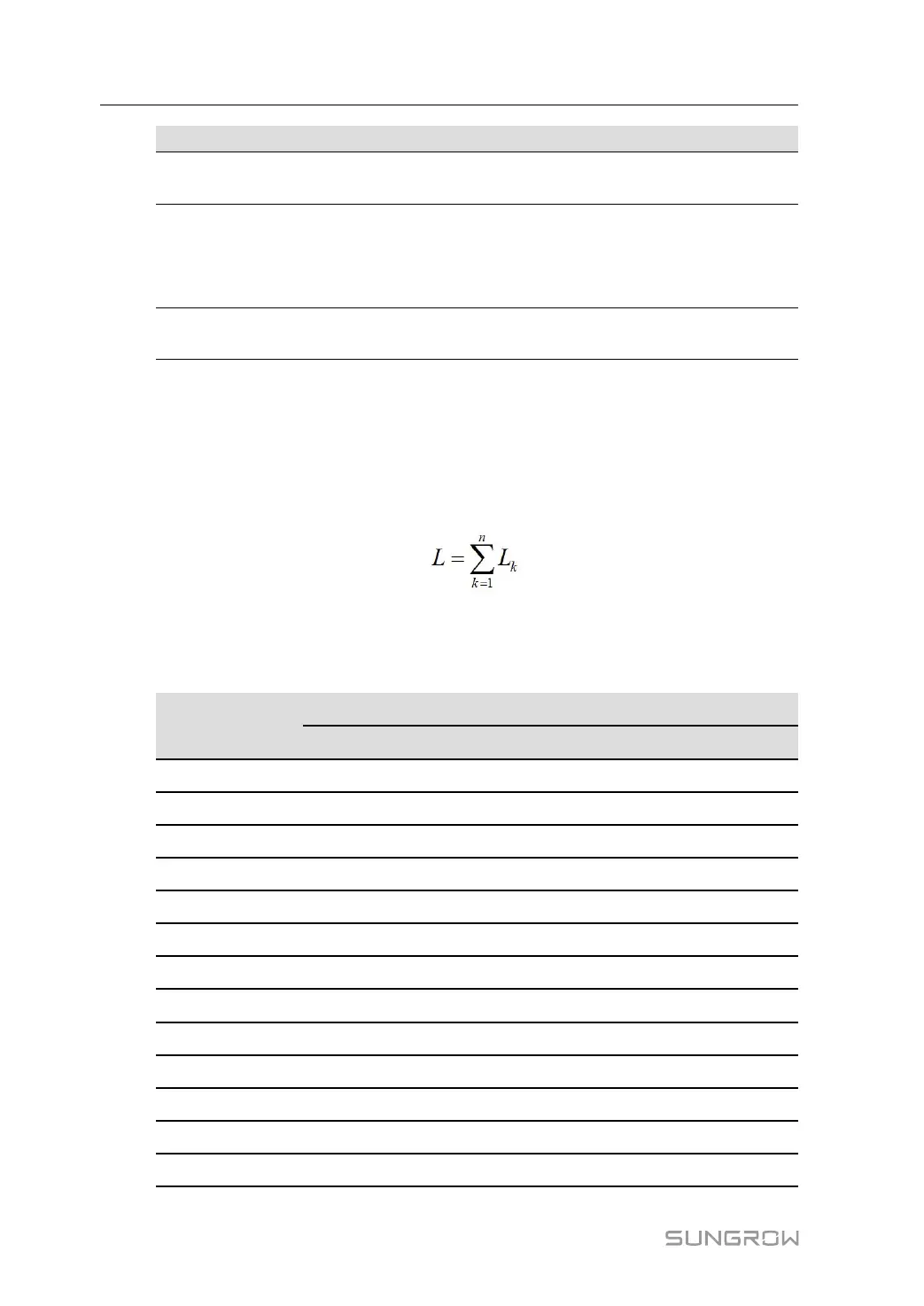

10.2 Wring Distance of DI Dry Contact
The maximum wiring distance of DC dry contact must meet the requirements in the
Table below. The wiring distance L is the total length of all DI signal cables.
L
K
refers to the cable length between the DI dry contact terminal of the k
th
inverter and
the corresponding terminal of the (k-1)
th
inverter.
Table 10-1 Correspondence between number of inverters and maximum wiring distance
NNuummbbeerr ooff
iinnvveerrtteerr
MMaaxxiimmuumm wwiirriinngg ddiissttaannccee((uunniitt::mm))
1166AAWWGG // 11..3311mmmm
22
1177AAWWGG // 11..002266mmmm
22
1 13030 10552
2 6515 5276
3 4343 3517
4 3258 2638
5 2606 2110
6 2172 1759
7 1861 1507
8 1629 1319
9 1448 1172
10 1303 1055
11 1185 959
12 1086 879
13 1002 812
10 Appendix User Manual
