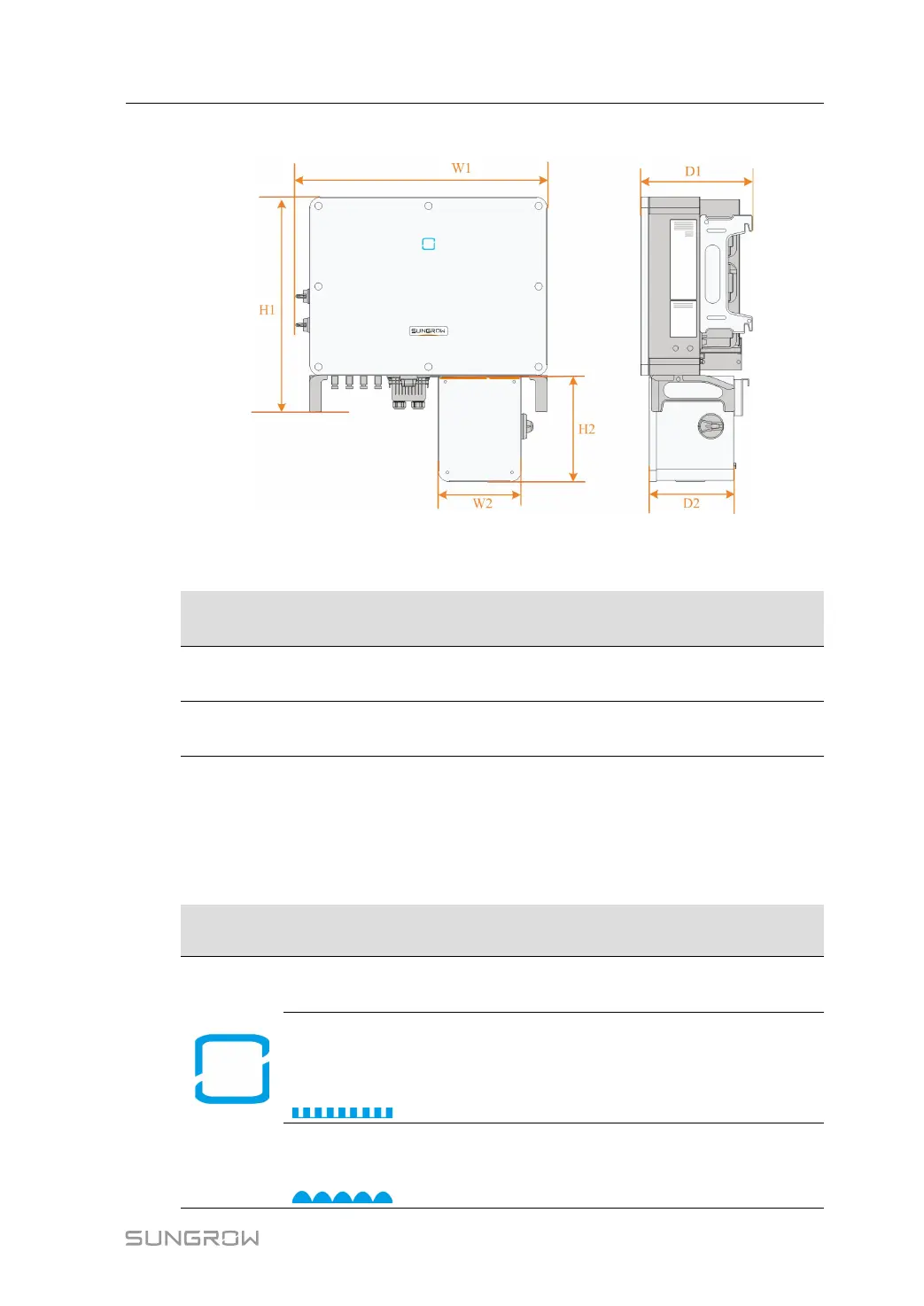

2.2.3 Dimensions
FFiigguurree 22--22 Dimensions of the Inverter
*The image shown here is for reference only. The actual product you receive may differ.
TTyyppee DDiimmeennssiioonnss ((WW11**HH11**DD11))
DDiimmeennssiioonnss
((WW22**HH22**DD22))
WWeeiigghhtt
SG36-
CX-US
702 * 595 * 310 mm (27.6''
* 23.4'' * 12.2'')
231 * 295 * 234 mm
(9.1'' * 11.6'' * 9.2'')
54kg(119.05lbs)
SG60-
CX-US
782 * 645 * 310 mm (30.7''
* 25.4'' * 12.2'')
231 * 295 * 234 mm
(9.1'' * 11.6'' * 9.2'')
65kg(143.3lbs)
2.2.4 LED Indicator Panel
As an HMI, the LED indicator panel on the front of the inverter can indicate the present
working state of the inverter.
Table 2-1 LED indicator description
LLEEDD
iinnddiiccaattoorr
LLEEDD ssttaattee DDeeffiinniittiioonn
Blue
ON
The device is connected to the grid and operating
normally.
Fast blink
(Period:About
0.2s)
The Bluetooth communication is connected and
there is data communication.
No system fault occurs.
Slow flash
(Period:About 2s)
The device is in standby or startup state (not
export power into the grid).
