Product Introduction
2.1 Intended Usage
SG36CX-US, SG60CX-US, a transformerless three-phase PV grid-connected inverter, is
an integral component in the PV power system.
The inverter is designed to convert the DC power generated from the PV modules into
grid-compatible AC power and provide it to local loads or export it into the utility grid.
The intended usage of the inverter is illustrated in "Figure 2-1 Inverter application in PV
power system".

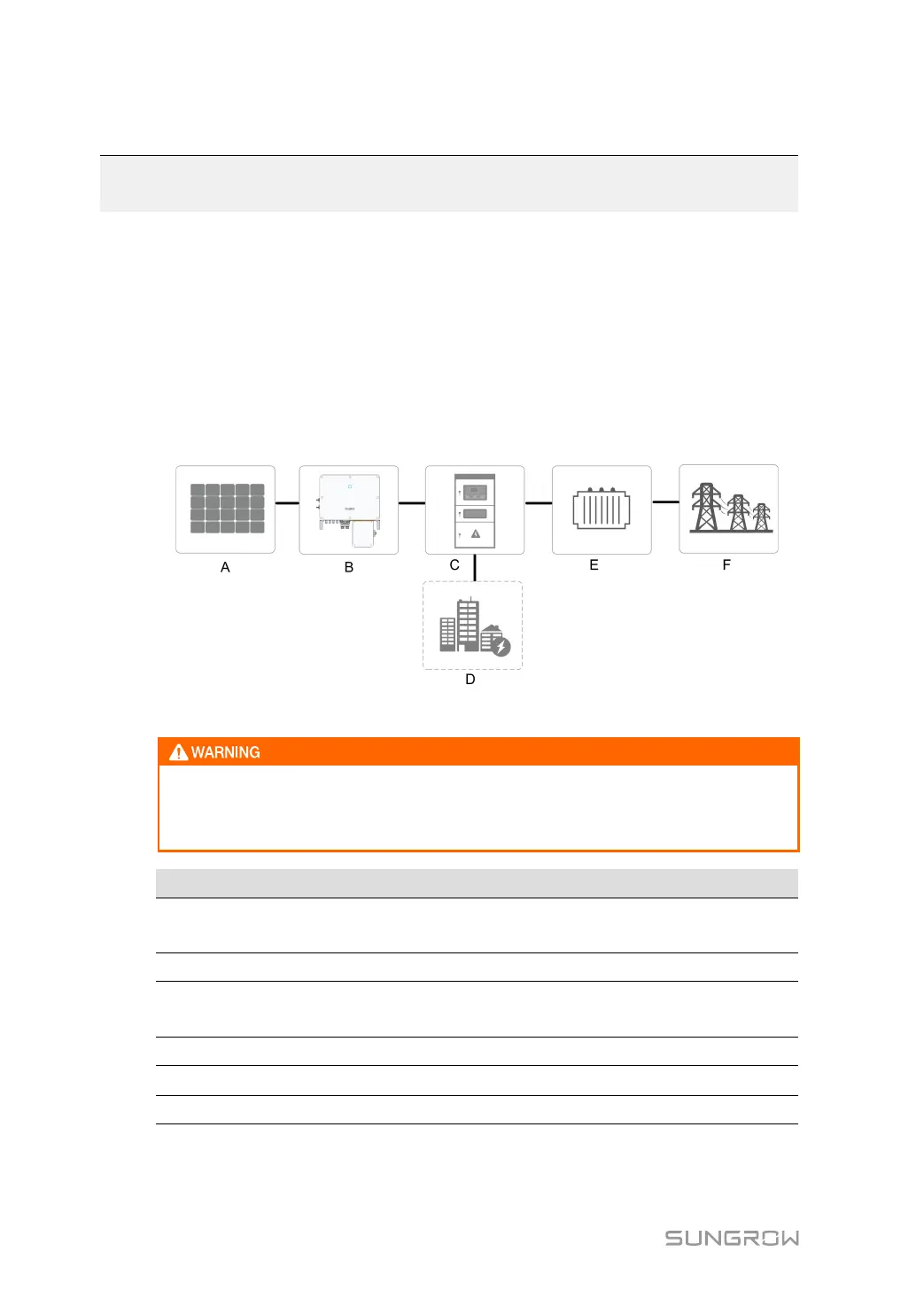

FFiigguurree 22--11 Inverter application in PV power system
Inverter cannot connect the PV strings whose positive and negative terminals
need to be grounded.
Do not connect any local load between the inverter and the AC circuit breaker.
IItteemm
DDeessccrriippttiioonn
NNoottee
A
PV strings
Monocrystalline silicon, polycrystalline silicon and
thin-film without grounding.
B Inverter
SG36CX-US, SG60CX-US.
C
Grid connection
cabinet
Includes devices such as AC circuit breaker, SPD,
metering device.
D Load
Power consumption from local facilities.
E Transformer
Lift the voltage of the power to the grid level.
F
Utility grid
TN-C, TN-S, TN-C-S, TT, IT.
