25
-- -- EEnndd

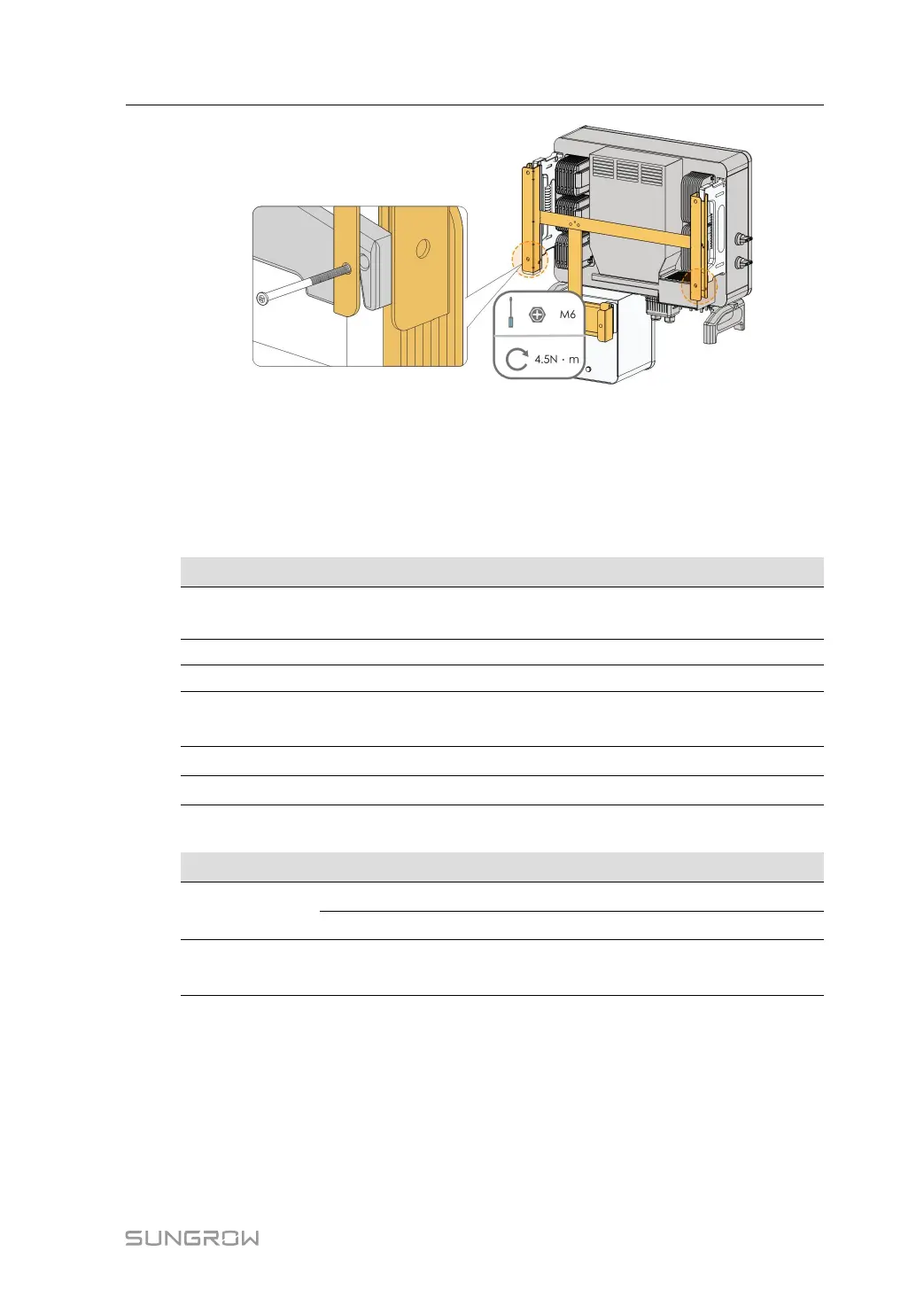

4.7 Wall-Mounted Installation
4.7.1 Preparation Before Mounting
TToooollss
IItteemm
SSppeecciiffiiccaattiioonn
Phillips screwdriver/ electric
screw driver
M4, M6
Marker
-
Level
-
Hammer drill
Drill bit(Select according to expansion bolt
specifications)
Socket wrench
Including 16mm socket
Wrench
Opening: 16mm
SSppaarree ppaarrttss
IItteemm
QQuuaannttiittyy SSppeecciiffiiccaattiioonn
SSoouurrccee
Grub screw
6 M4×10
Delivery scope
2 M6×65
Delivery scope
Expansion bolts
4
M10×95
(Recommended)
Self-prepared
4.7.2 Mounting Steps
Step 1 Assemble the mounting-bracket by using the connecting bar.
User Manual 4 Mechanical Mounting
To Next Page
