24

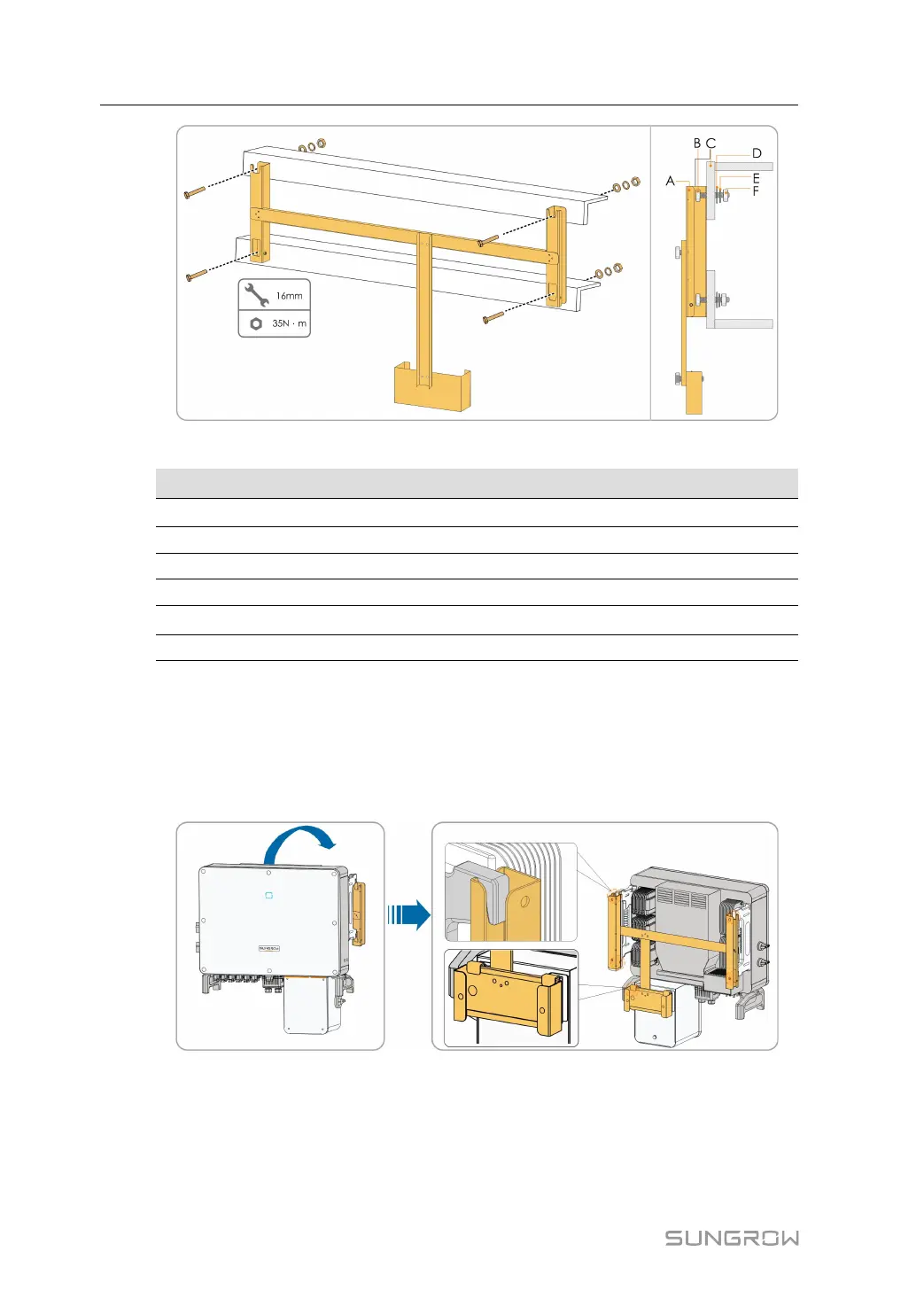

Table 4-2 Fastening sequence
NNoo..
CCoommppoonneennttss DDeessccrriippttiioonn
A
Mounting-bracket
-
B Full threaded bolt M10*45
C Metal bracket
-
D Flat washer
-
E
Spring washer
-
F Hex nuts
-
Step 4 Take out the inverter from the packing case.
Step 5 Hoist the inverter to the installation position when necessary (refer to "4.4.2 Hoisting
Transport"). If the installation position is not high enough, skip performing this step.
Step 6 Hang the inverter to the mounting-bracket and ensure that the mounting ears perfectly
engage with the mounting-bracket.
Step 7 Secure the inverter with two M6×65 screws.
4 Mechanical Mounting User Manual
