17

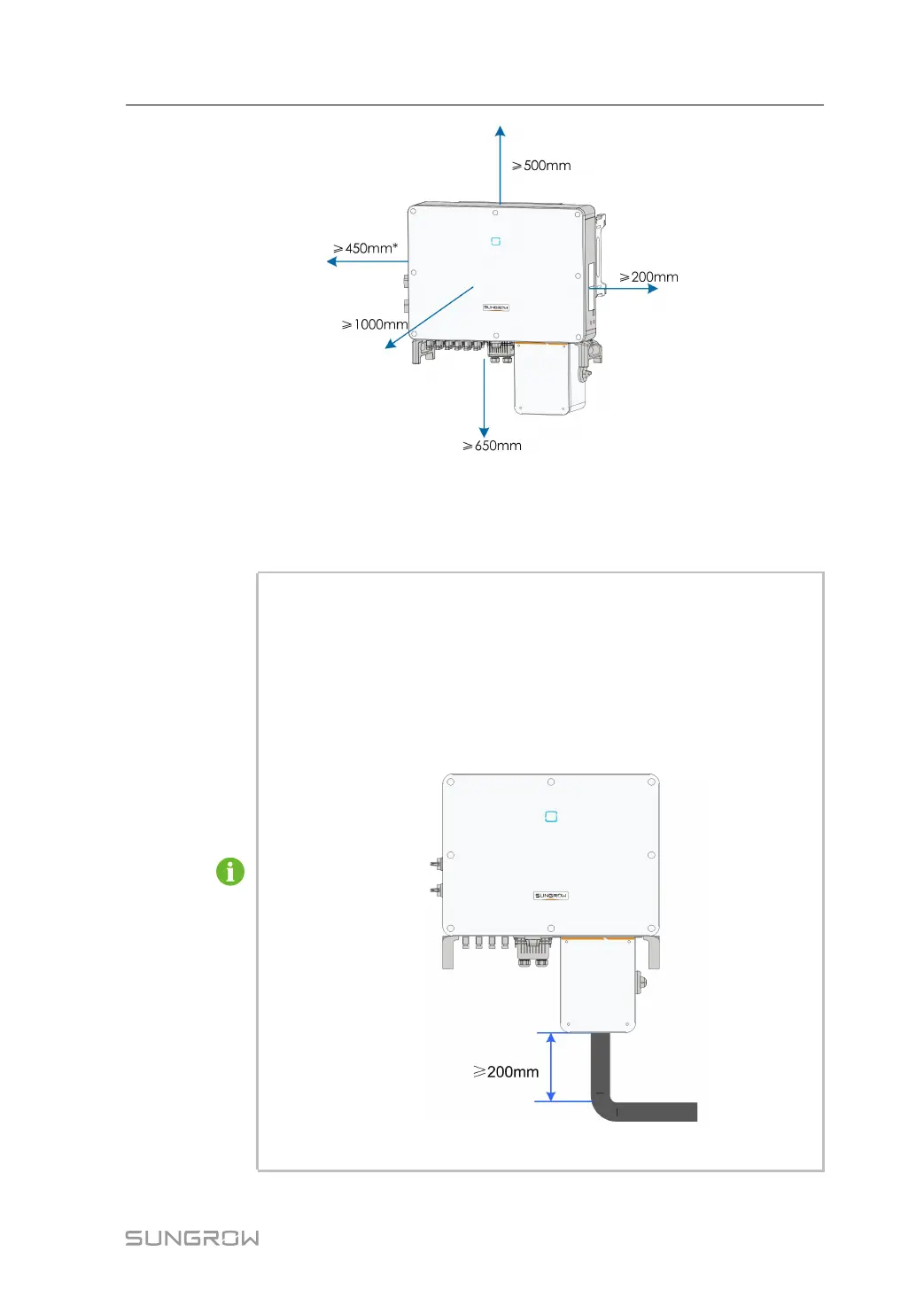

* The distance can be shortened to 200mm according to onsite conditions. In case
the distance is less than 450mm, remove the inverter from the mounting-bracket or
wall before maintaining fans.
The distance between the bottom of the inverter and the ground surface is
determined according to the bending radius of the AC cable used and the
installation environment. In addition, the following conditions must be met:
– The distance between the bottom of the inverter and the ground
surface is not less 650mm.
– The AC cable is vertically led into the cabinet, and the straight length is
not less 200mm.
If there are any questions, please consult the AC cable manufacturer.
User Manual 4 Mechanical Mounting
