When removing the Pentium III/II processor, avoid press-
ing down on the motherboard or components. Instead,
press down on the plastic connectors.
!

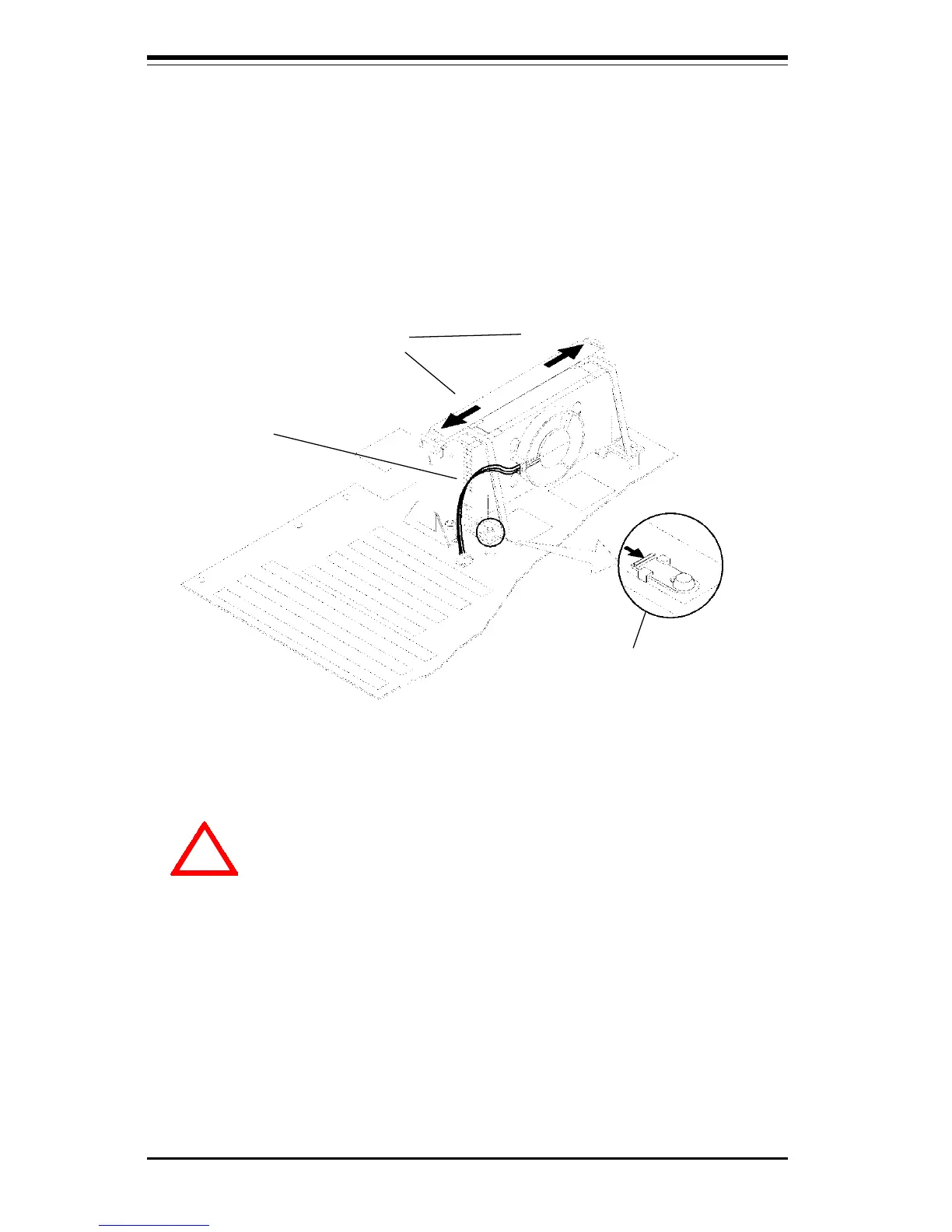

Figure 2-3. Attaching the Fan Power Cable
7. Attach the small end of the power cable (C in Figure 2-3) to the three-pin
connector on the processor, then attach the large end to the three-pin connector
on the motherboard.
