SUPERSERVER 2028R-TXR User's Manual
3-2

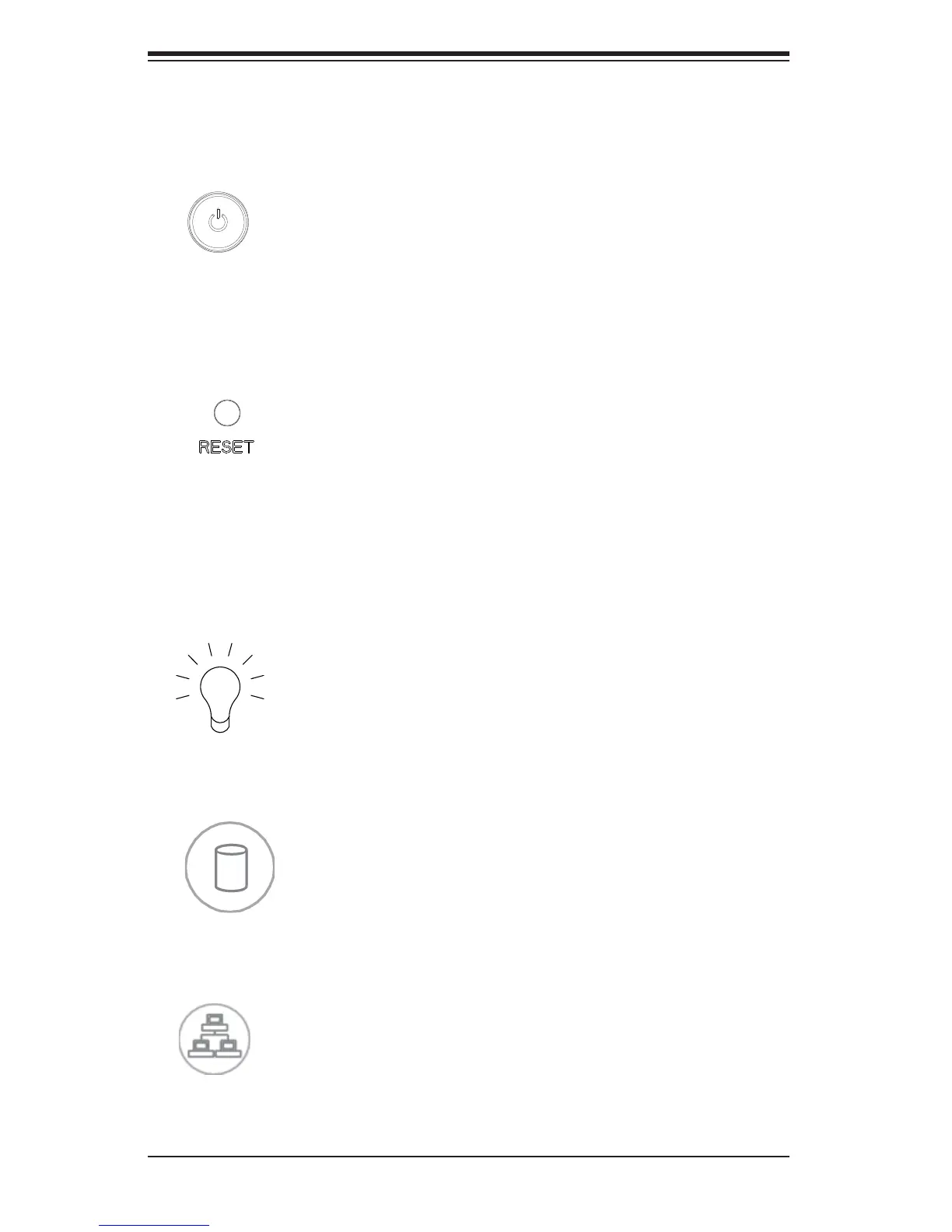

3-3 Control Panel LEDs
There are six LEDs that provide status information about the system.
Power: The main power switch is used to apply or remove power from the power
supply to the server system. Turning off system power with this button removes the
main power but keeps standby power supplied to the system. Therefore, you must
unplug system before servicing.
Reset: The reset button is used to reboot the system.
3-2 Control Panel Buttons
The chassis includes two push-buttons that control power to the system.
Power: Indicates power is being supplied to the system power supply units. This
LED should normally be illuminated when the system is operating.
HDD: Indicates activity on a hard drive when fl ashing.
NIC2: Indicates network activity on GLAN2 when fl ashing.
