Chapter 5: Advanced Serverboard Setup
5-5

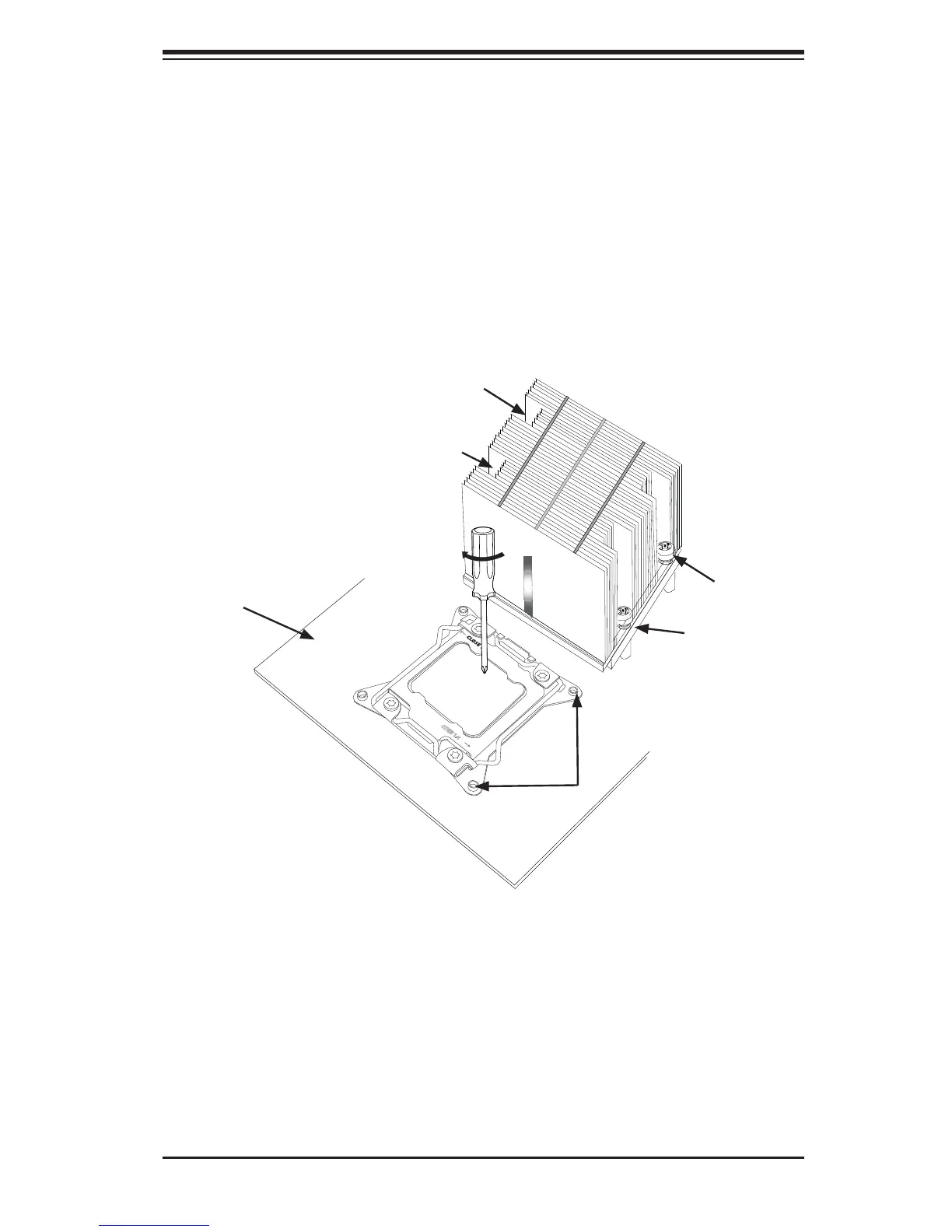

Figure 5-1. Installign a Passive CPU Heatsink
OPEN 1st
Serverboard
Screw#1
Screw#3
Screw#4
Screw#2
Mounting
Holes
Note: For optimized airfl ow, please follow the airfl ow direction of your chassis to
properly install the CPU heatsink. Graphic drawings included in this manual are
for reference only. They might look different from the components installed in your
system.
Installing a Passive CPU Heatsink
1. Apply the proper amount of thermal grease to the heatsink.
2. Place the heatsink on top of the CPU so that the two mounting holes on the
heatsink are aligned with those on the retention mechanism.
3. Insert two push-pins on the sides of the heatsink through the mounting holes
on the motherboard, and turn the push-pins clockwise to lock them.
