Supermicro SuperServer 2028R-TXR User Manual

Chapter 5: Advanced Serverboard Setup
5-25

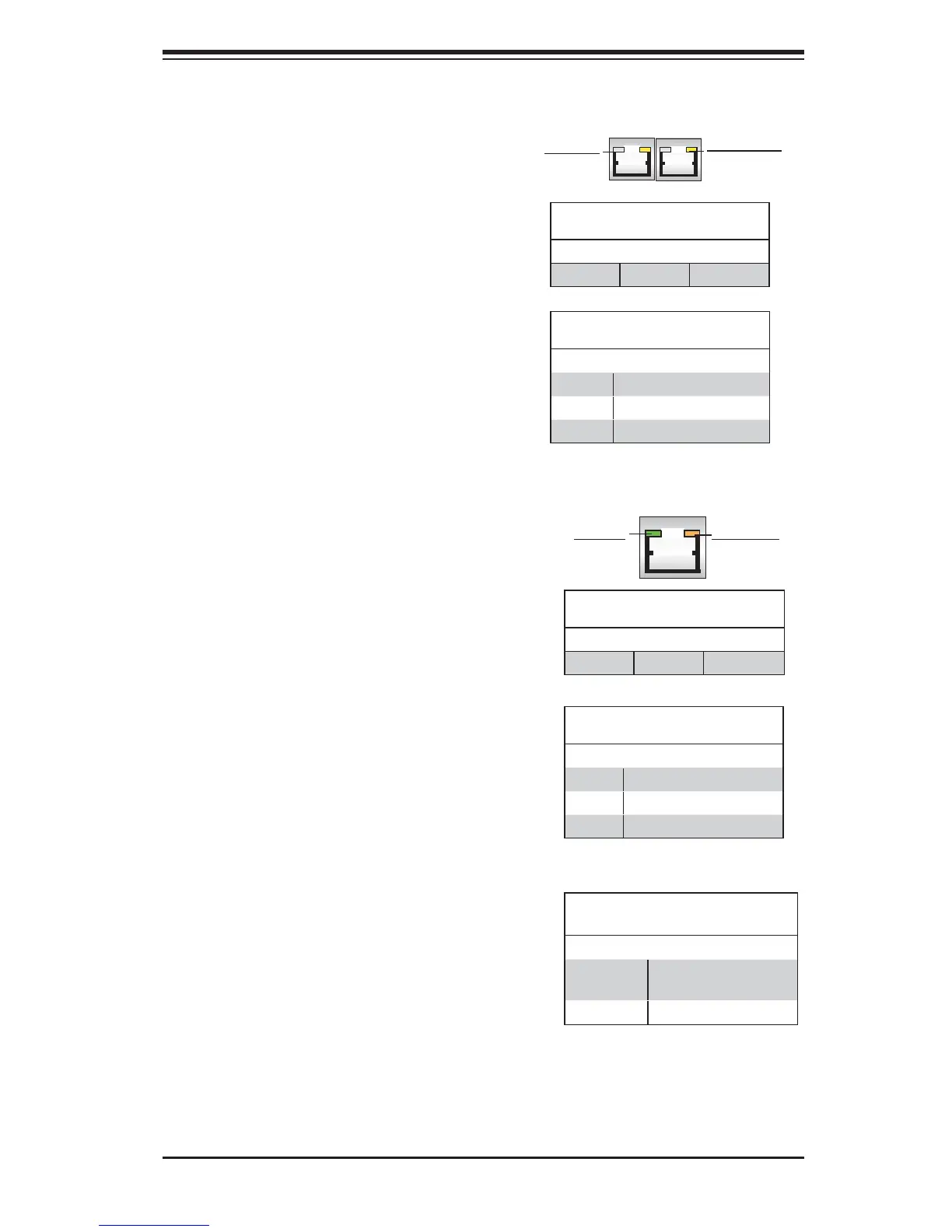

5-9 Onboard Indicators
Dedicated IPMI LAN LEDs
A dedicated IPMI LAN is located on the
I/O back panel. The amber LED on the
right indicates activity, while the other
LED on the left indicates the speed of
the connection. See the tables on the
right for more information.
Link LED Activity LED
Dedicated IPMI LAN Link LED
LED State (Left)
LED Color Defi nition
Off 10 Mbps, or No Connection
Green 100 Mbps
Amber 1 Gbps
Dedicated IPMI LAN Activity LED
LED State (Right)
Color Status Defi nition
Amber Flashing Active
Link LED
Activity LED
LAN 1/2 LEDs
Two LAN ports (LAN 1/LAN 2) are located
on the I/O back panel of the motherboard.
Each Ethernet LAN port has two LEDs.
The green LED indicates activity, while
the other Link LED may be green, amber
or off to indicate the speed of the con-
nections. See the tables on the right for
more information.
LAN 1/LAN 2 Activity LED (Right)
LED State
Color Status Defi nition
Green Flashing Active
GLAN 1/2 Link LED (Left)
LED State
LED Color Defi nition
Off 10 Mbps or No Connection
Green 100 Mbps
Amber 1 Gbps
Onboard PWR LED Indicator
LED States
Color/State Defi nition
Off System Off (PWR cable
not connected)
Green: On System Power On
Onboard Power LED
An Onboard Power LED is located at
LED2 on the serverboard. When this
LED is on, the system is on. Be sure
to turn off the system and unplug the
power cord before removing or install-
ing components.See the tables at right
for more information.
