Chapter 4: AMI BIOS
4-41

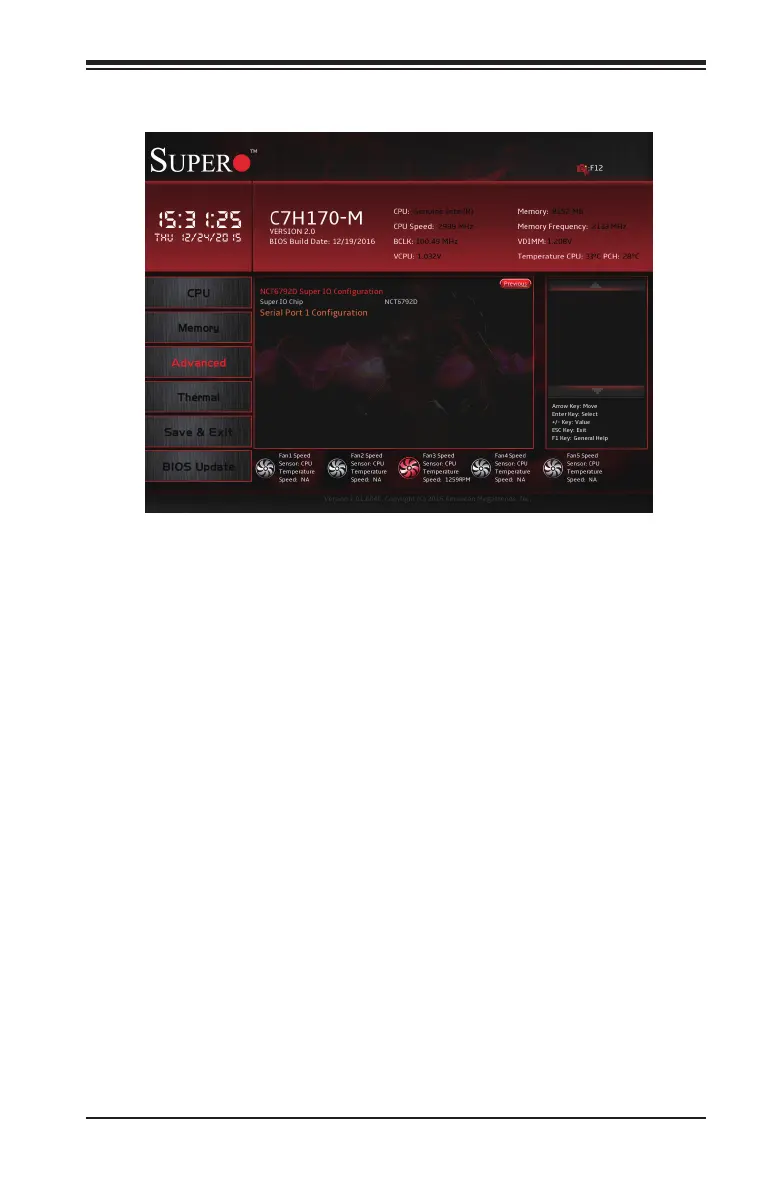

NCT6792D Super IO Conguration
SuperIO Chip NCT6792D
Serial Port 1 Conguration
Serial Port
This item will Enable or Disable Serial Port 1 (COM1). Place a tick mark
on the box to enable Serial Port 1. The default is Checked (Enabled).
Device Settings
This item displays the current IRQ setting for Serial Port 1 (COM1).
Change Settings
This item congures the IRQ setting for Serial Port 1 (COM1).
The options for Serial Port 1 are Auto, (IO=3F8h; IRQ=4), (IO=3F8h;
IRQ=3, 4, 5, 6, 7, 9, 10, 11, 12), (IO=2F8h; IRQ=3, 4, 5, 6, 7, 9, 10,
11, 12), (IO=3E8h; IRQ=3, 4, 5, 6, 7, 9, 10, 11, 12), and (IO=2E8h;
IRQ=3, 4, 5, 6, 7, 9, 10, 11, 12).
