4-56
Supermicro C7Z170-M/C7H170-M Motherboard User’s Manual
SATA Controller(s)
Select Disabled to disable the onboard SATA Controllers. The options are
Enabled and Disabled.
SATA Mode Selection
This item selects the mode for the installed SATA drives. The options
are AHCI and RAID.
SATA Controller Speed
Use this option to specify the maximum speed the SATA controller can
support. The options are Default, Gen 1, Gen 2, and Gen 3.
SATA Frozen
Select Disabled to disable the Freeze Lock Security feature. The options
are Disabled and Enabled.
The remaining options in the section are similar across Serial ATA
Ports 0 through 5.
Serial ATA Port 0~5
This item displays the detected SATA drive, If any.
Hot Plug
This feature designates the port specied for hot plugging. Set this item
to Enabled for hot-plugging support, which will allow the user to replace

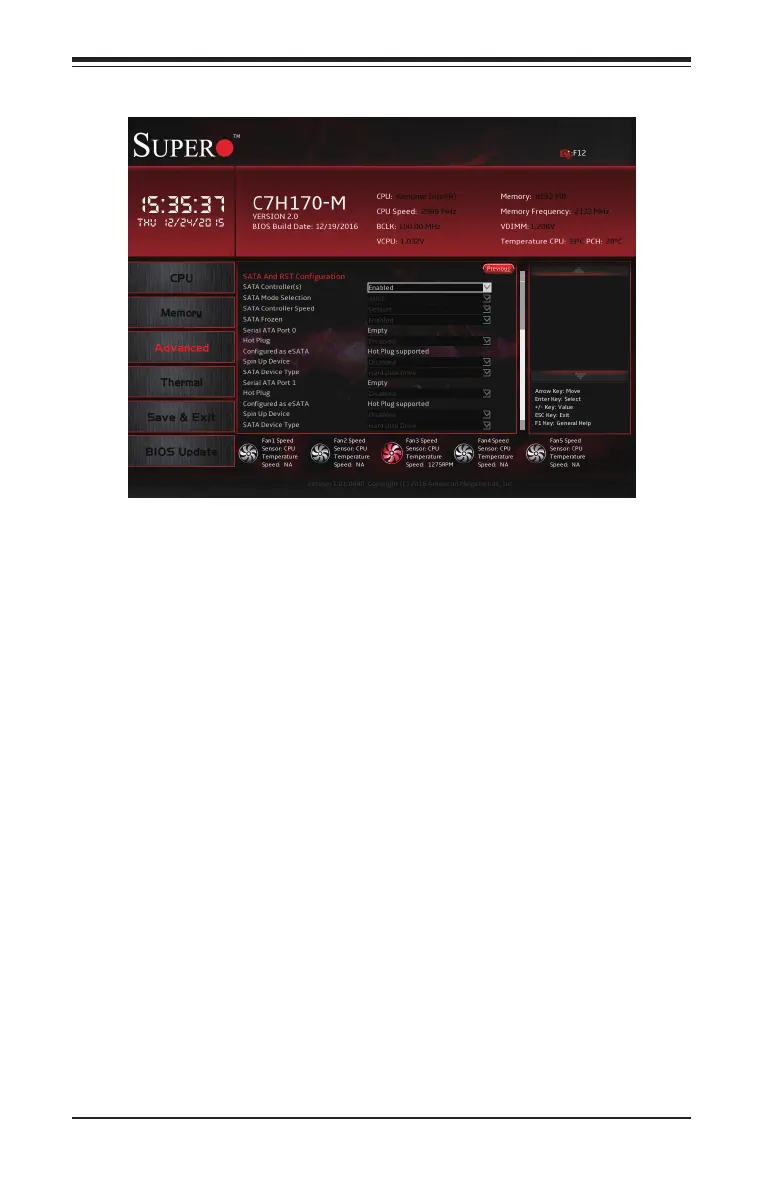

SATA And RST Configuration
