4-6 Thermal
System Temperature
Fan Speed Control Mode

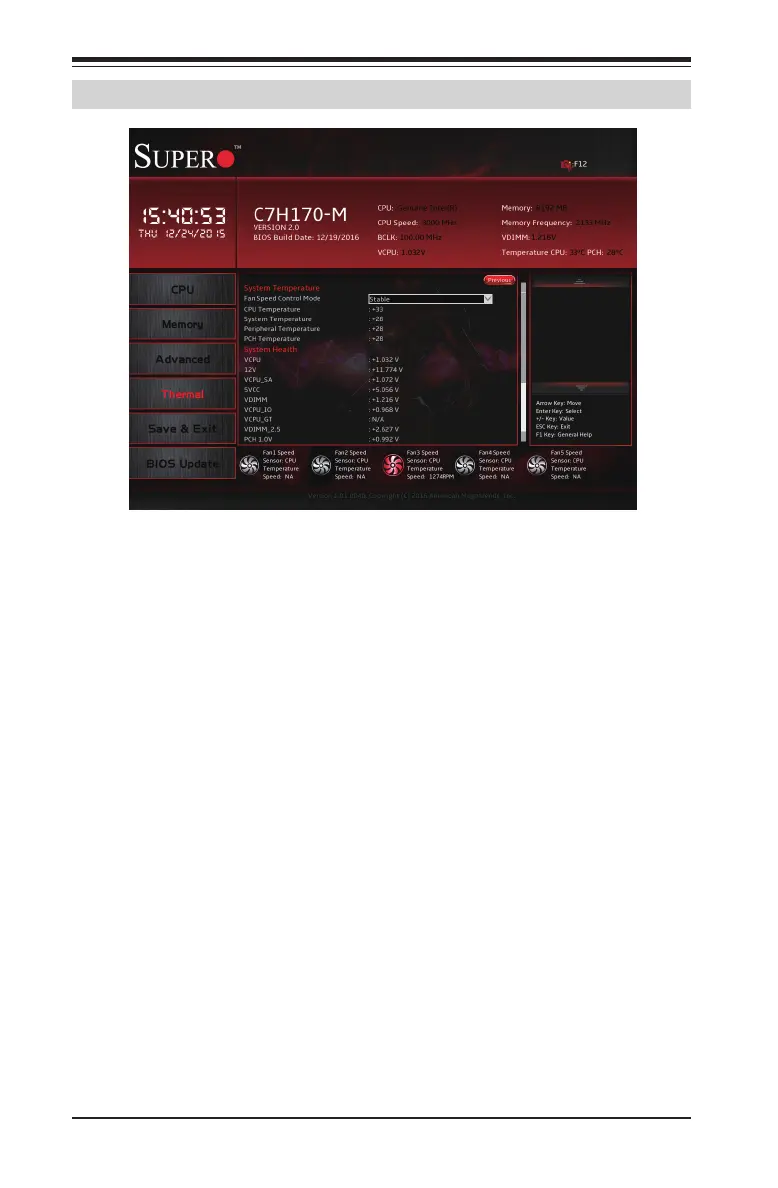

This feature allows the user to decide how the system controls the
speeds of the onboard fans. The CPU temperature and the fan speed
are correlative. When the CPU on-die temperature increases, the
fan speed will also increase for effective system cooling. Select "Full
Speed" to allow the onboard fans to run at full speed (of 100% Pulse
Width Modulation Duty Cycle) for maximum cooling. This setting is
recommended for special system conguration or debugging. Select
"Stable" for the onboard fans to run at 50% of the Initial PWM Cycle in
order to balance the needs between system cooling and power saving.
This setting is recommended for regular systems with normal hardware
congurations. The options are Stable and Full Speed.
The following items are displayed:
• CPU Temperature - displays the CPU temperature detected by
PECI.
• System Temperature - indicates the system internal tempera-
ture.
