Supermicro C7Z170-M/C7H170-M Motherboard User’s Manual

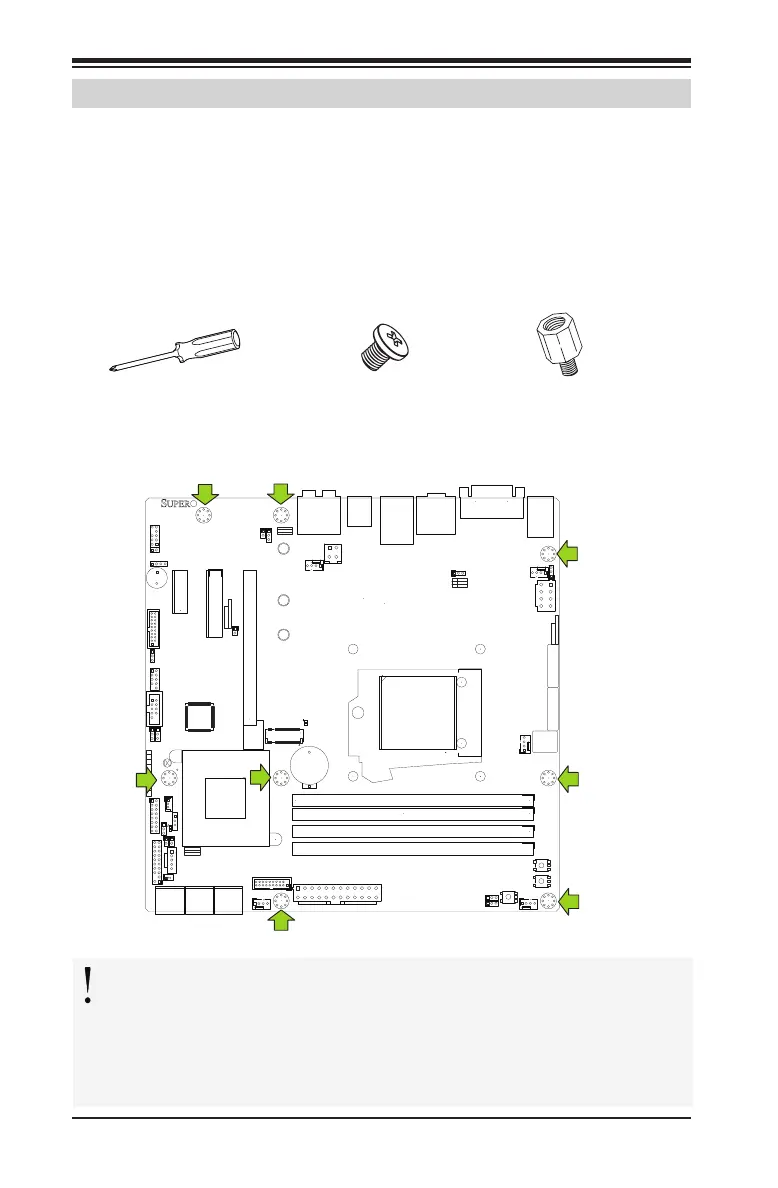

Location of Mounting Holes
2-5 Motherboard Installation
All motherboards have standard mounting holes to t different types of
chassis. Make sure that the locations of all the mounting holes for both
motherboard and chassis match. Although a chassis may have both plas-
tic and metal mounting fasteners, metal ones are highly recommended
because they ground the motherboard to the chassis. Make sure that
the metal standoffs click in or are screwed in tightly. Use a screwdriver
to secure the motherboard onto the motherboard tray.
Philips Screwdriver
(1)
Standoffs (8)
Only if Needed
Philips Screws (8)
Tools Needed
JBR1
JTBT1
JPW3
+
MH12
JSTBY1
JF1
JTPM1
S1
JAUDIO1
JPCIE1
JPCIE2
JD1
JUSBLAN1
JBT1
FAN4
FAN1
FAN2
FAN3
FAN5
S4
S8
S11
7
JUSB30_I4
19
JPW1
1
LED1
LED2
A
C
JPW2
JHD_AC1
JI2C2
JI2C1
JL1
JSPDIF_OUT
JSMB1
JLED1
JSMB2
JPUSB1
JPUSB2
1
JPL1
JPME2
JWD1
1
3
DESIGNED IN USA
C7Z170-M
REV:1.00
MAC CODE
BAR CODE
TP104
TP103
TP100
MH2
MH1
Power Button
BIOS Restore
CLEAR CMOS
JHD_AC1:Audio AC97 and HD audio jumper
3 PIN POWER LED
JLED1:
2-3:BIOS RECOVERY
1-2:NORMAL
JBR1:
USB 10/11(3.0)
USB 8/9(3.1)
USB 2/3
USB 4/5(3.0)
USB 6/7(3.0)
HDMI/DP
DVI
1-2 ENABLE
2-3 DISABLE
JPUSB2:USB 8/9 WAKE UP
1-2 ENABLE
2-3 DISABLE
JPUSB1:USB0/1 WAKE UP
PCH SLOT1 PCI-E 3.0 X1
JPAC1
5V STBY POWER
PCH SLOT2 PCI-E 3.0 X4
LAN
KB/MOUSE
JWD1:
JSD1:
LAN
DISABLE
ENABLE
2-3
1-2
JPL1
2-3:NMI
1-2:RST
WATCH DOG
CPU
2-3:ME MANUFACTURING MODE
/CPU FAN
USB 0/1
1-2:NORMAL
JPME2:
SATA DOM PWR
JTPM1:TPM/PORT80
JL1:
AUDIO FP
HDD PWR
LEDLED
CMOS CLEAR
DIMMB1
DIMMB2
NIC1
SPEAKER:1-4
JD1:
BUZZER:3-4
JI2C1/JI2C2
ON:ENABLE
OFF:DISABLE
NIC2
HD AUDIO
OH/FF
LED
X
CHASSIS INTRUSION
DIMMA1
DIMMA2
RST
PWR
JF1
ON
ALWAYS POPULATE RED SOCKET FIRST
UNB NON-ECC DDR4 DIMM REQUIRED
CPU SLOT3 PCI-E 3.0 X16
M.2 PCI-E X4
COM1
2-3:DISABLE
1-2:ENABLE
JPAC1:AUDIO
I-SATA2
I-SATA3
I-SATA1
I-SATA5
I-SATA0
I-SATA4
BT1
S/PDIF OUT
Attention! 1) To avoid damaging the motherboard and its compo-
nents, please do not use a force greater than 8 lb/inch on each mount-
ing screw during motherboard installation. 2) Some components are
very close to the mounting holes. Please take precautionary measures
to avoid damaging these components when installing the motherboard
to the chassis.
