Supermicro C7Z170-M/C7H170-M Motherboard User’s Manual
B
C
A

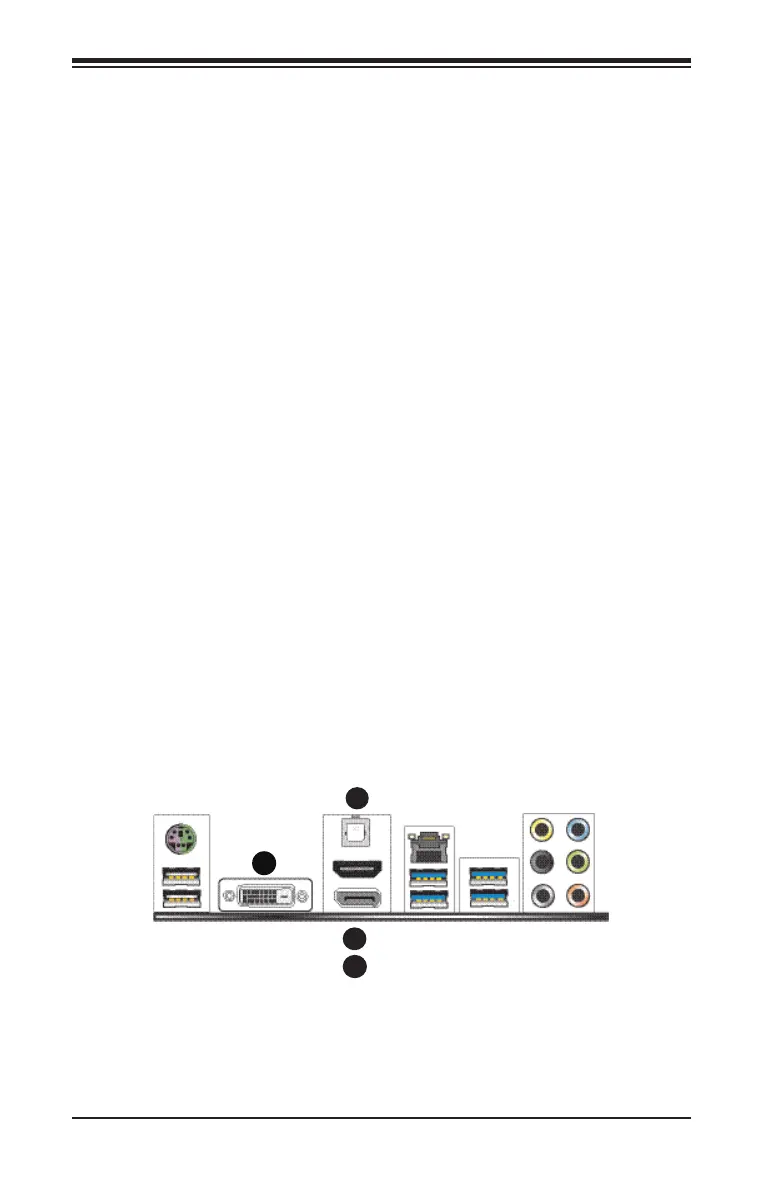

A. S/PDIF Port
B. HDMI Port
C. VESA Display Port
D. DVI-D
HDMI Port
One HDMI (High-Denition Multimedia Interface) is located on the I/O
backpanel. This connector is used to display both high denition video
and digital sound through an HDMI capable display, using a single HDMI
cable (not included).
S/PDIF Port
A S/PDIF port is located next to the DVI-D port on the I/O backpanel.
Use this port to connect to a compatible S/PDIF optical audio device.
DVI-D Port
A DVI-D port is located on the I/O backpanel. Use this port to connect
to a compatible DVI (Digital Visual Interface) display.
VESA® DisplayPort™
DisplayPort, developed by the VESA consortium, delivers digital display
at a fast refresh rate. It can connect to virtually any display device using
a DisplayPort adapter for devices such as VGA, DVI, or HDMI.
D

Supero C7Z170-M Specifications

General

Brand	Supero
Model	C7Z170-M
Category	Motherboard
Language	English
