4-68
Supermicro C7Z170-M/C7H170-M Motherboard User’s Manual

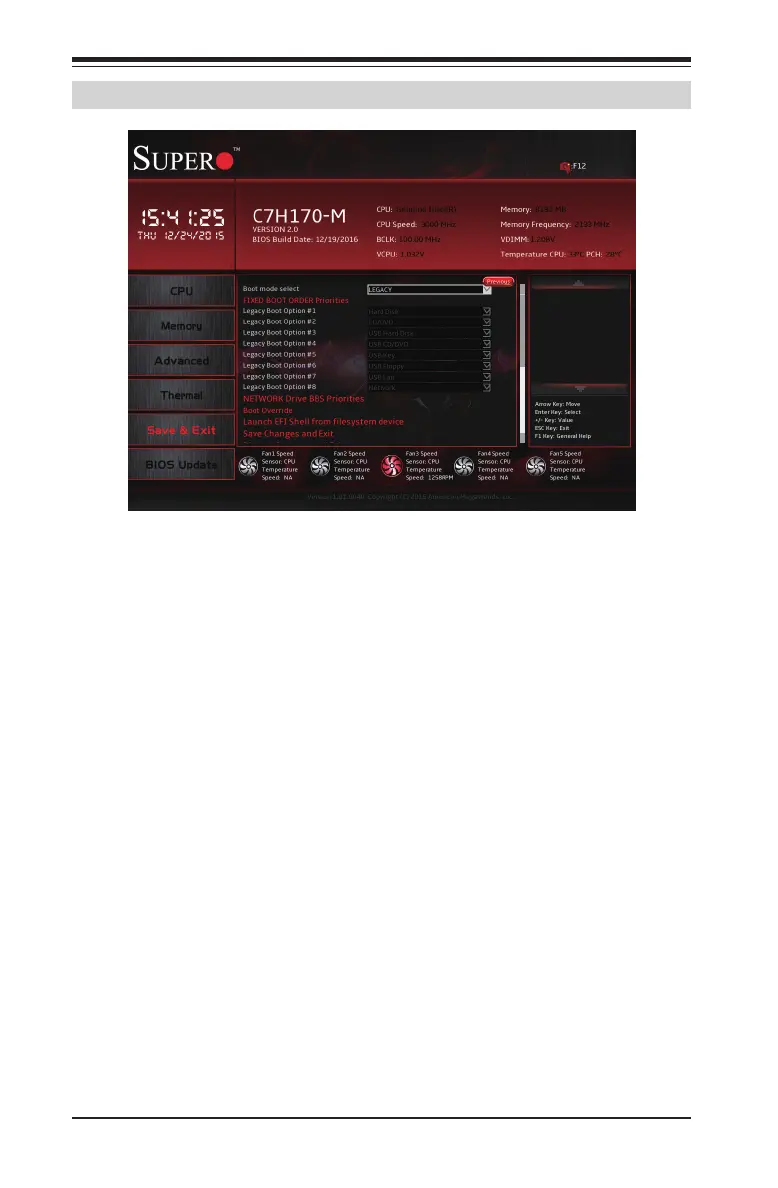

4-7 Save & Exit
Boot mode select
Use this item to select the type of device to be used for system boot.
The options are Legacy, UEFI, and Dual.
FIXED BOOT ORDER Priorities
This option prioritizes the order of bootable devices from which the
system will boot. Choose an entry from top to bottom to select devices.
Legacy Boot Option #1~#8
The options are Hard Disk, CD/DVD, USB Hard Disk, USB CD/DVD, USB
Key, USB Floppy, USB Lan, Network, and Disabled.
NETWORK Drive BBS Priorities
Boot Option #1
Species the Boot Device Priority sequence from available Network Drives
the options are IBA CL Slot 00FE v0110 and Disable.
Boot Override
(Available when the boot device is detected by the BIOS) Saves the
specied boot override and resets the system, i.e., IBA CL Slot 00FE
v0110. Select OK to activate, otherwise, click Cancel.
To Next Page
