Supero X10SAT User Manual

2-16
X10SAT User’s Manual
2-6 Connectors/IO Ports
The I/O ports are color coded in conformance with the PC 99 specication. See the
gure below for the colors and locations of the various I/O ports.

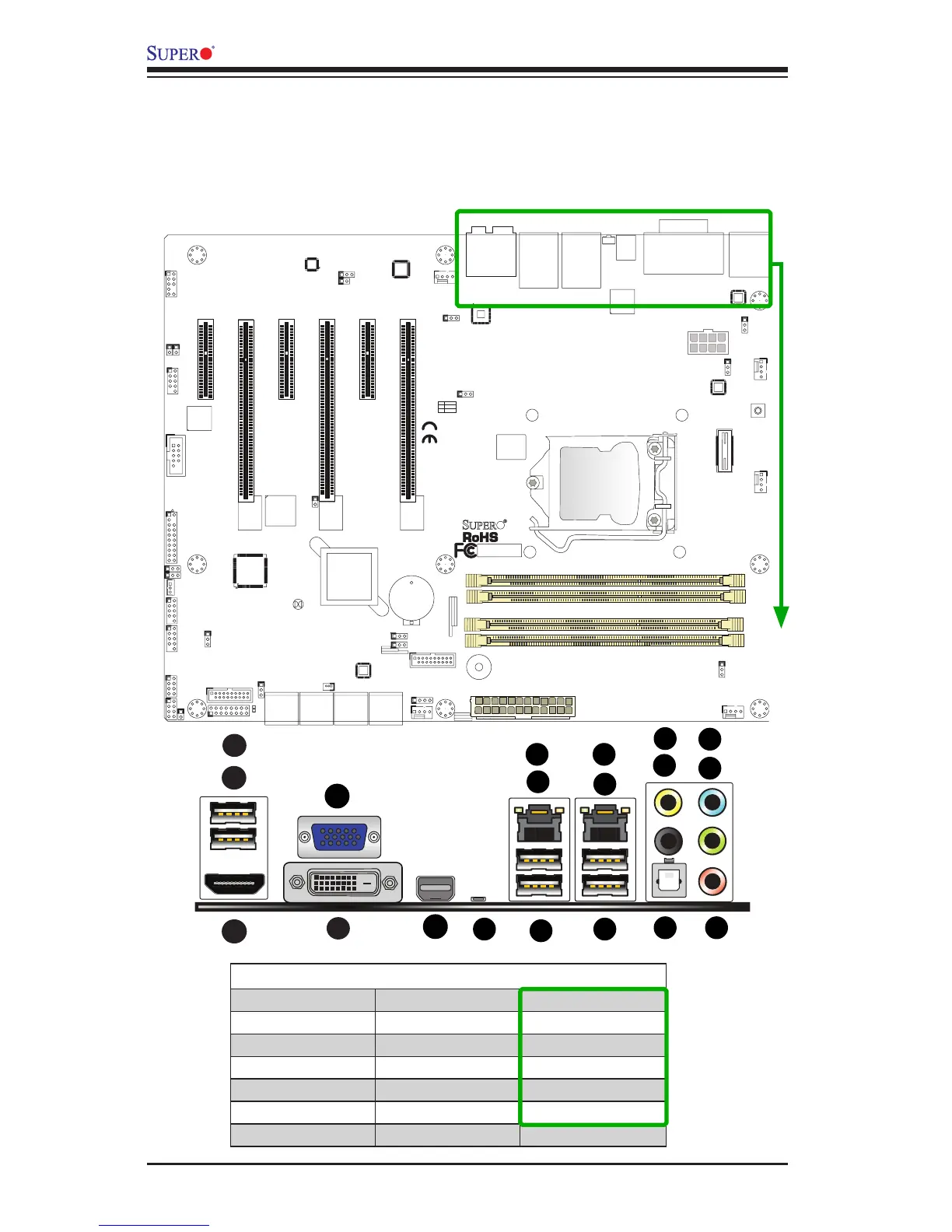

Backplane I/O Panel
A. USB 2.0 Port 0 H. Gb LAN Port 1 N. Center/LFE Out
B. USB 2.0 Port 1 I. USB 3.0 Port 6 O. Surround Out
C. HDMI Port J. USB 3.0 Port 7 P. S/PDIF Out
D. VGA Port K. Gb LAN Port 2 Q. Line In
E. DVI Port L. USB 3.0 Port 4 R. Line Out
F. Thunderbolt Port M. USB 3.0 Port 5 S. Mic In
G. CMOS Reset
Backplane I/O Panel
E
A
B
C
F
D
G
H
I
J
K
L
M
N
O
P
Q
R
HD Audio
S
