Chapter 2: Installation
2-35
USB Wake-Up (JPUSB 1/2)
Use jumper JPUSB1 to activate the "wake-
up" function of the USB ports by pressing
a key on a USB keyboard or clicking the
USB mouse connected. This jumper is used
together with a USB Wake-Up feature in the
BIOS. Enable this jumper and the USB sup-
port in the BIOS to wake up your system via
USB devices.
Note: Use JPUSB1 for the USB ports on
the back panel, and JPUSB2 for the front
panel USB headers.

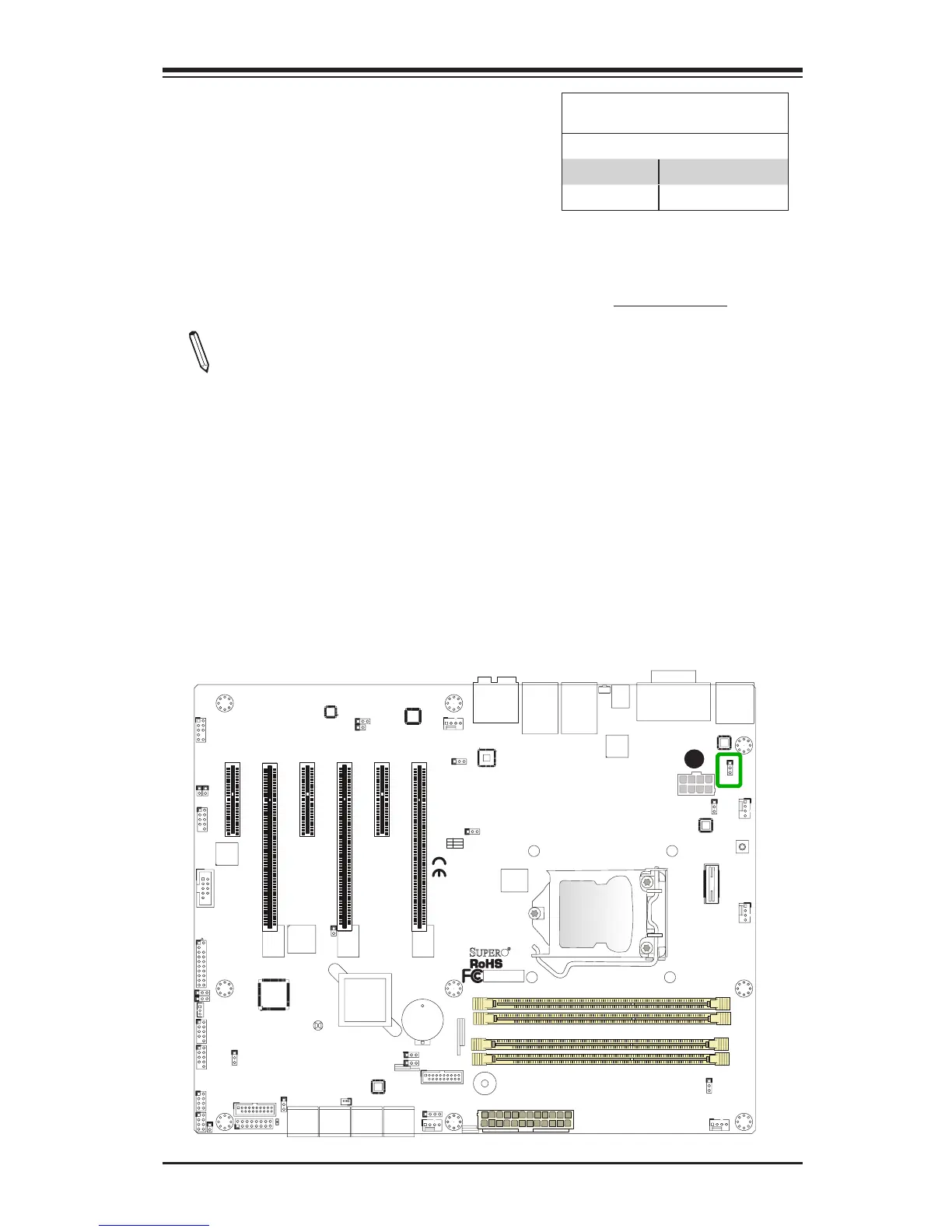

A
USB Wake-Up
Jumper Settings
Jumper Setting Denition
Pins 1-2 Enabled
Pins 2-3 Disabled (Default)
A. USB Wake Up
