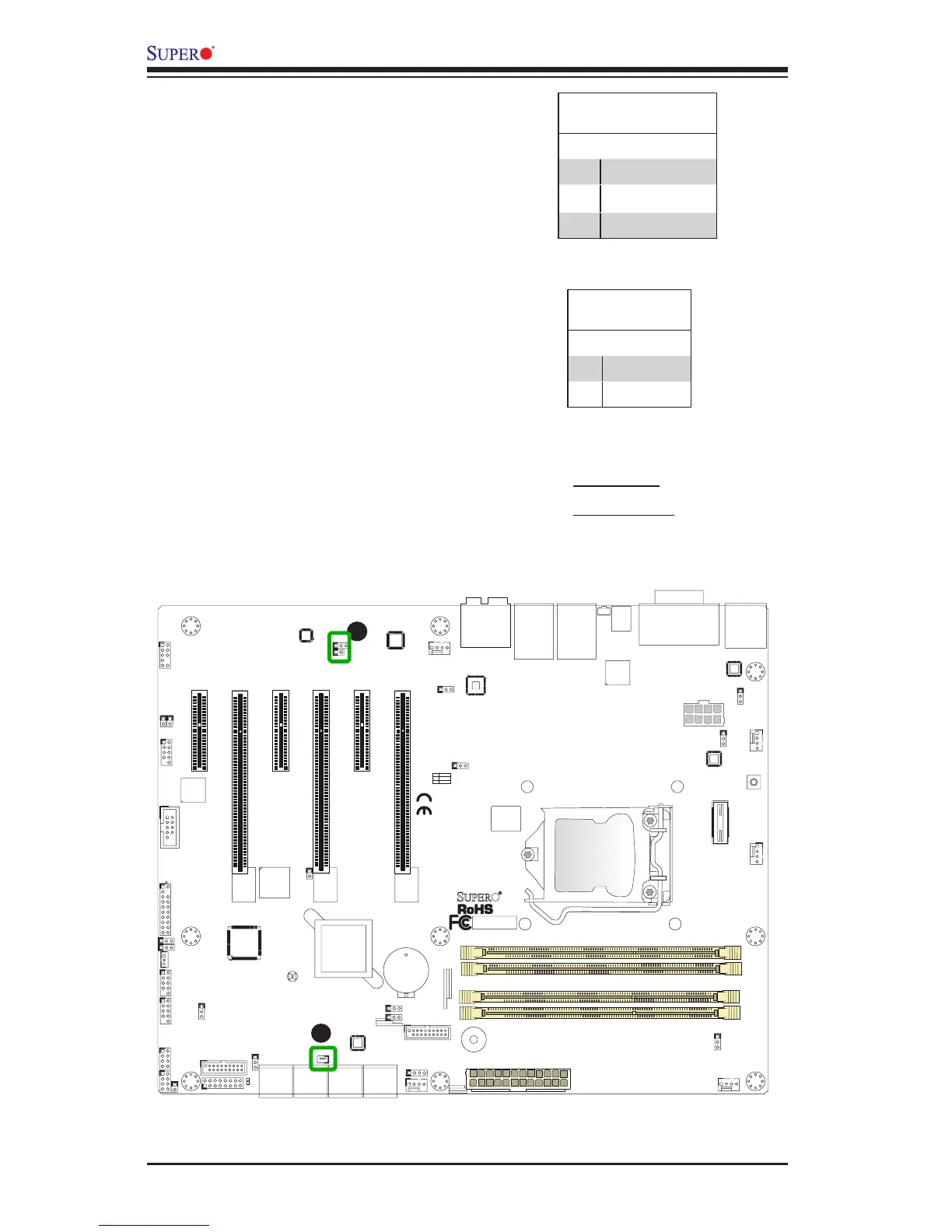

DOM PWR Connector (JSD1)
The Disk-On-Module (DOM) power
connector, located at JSD1, provides
5V (Gen1/Gen) power to a solid state
DOM storage device connected to one
of the SATA ports. See the table on the
right for pin denitions.
DOM PWR
Pin Denitions
Pin# Denition
1 5V
2 Ground
3 Ground
A.DOM PWR
B. S/PDIF OUt
SPDIF OUT (JSPDIF_OUT)
The SPDIF Out (JSPDIF_OUT) is
used for digital audio output. You will
also need the appropriate cable to use
these features.
SPDIF_OUT
Pin Denitions
Pin# Denition
1 S/PDIF_Out
2 Ground
A
B
