Supero X10SAT User Manual

2-38
X10SAT User’s Manual

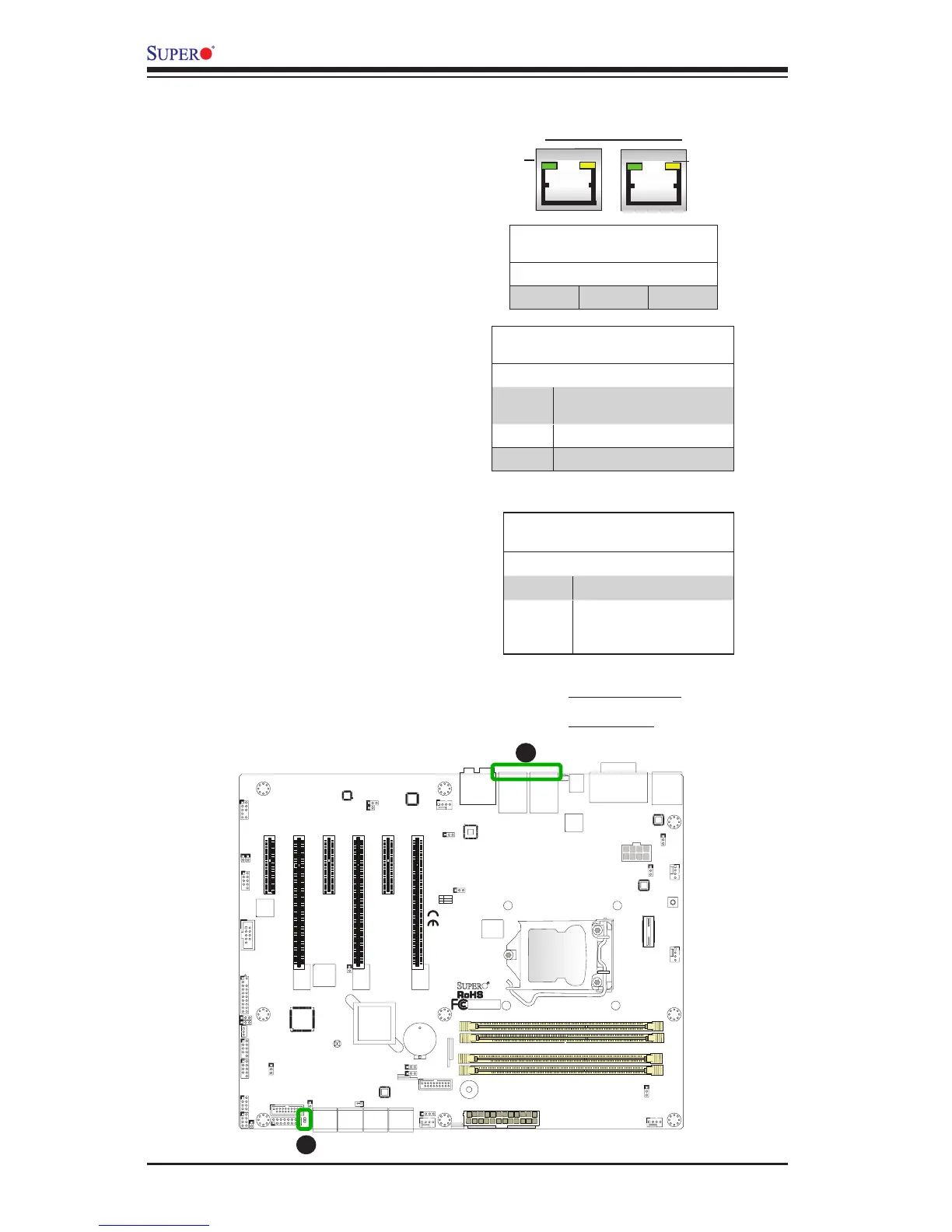

A. LAN 1/2 LEDs
B. PWR LED
A
B
LAN 1/LAN 2 LEDs
Two LAN ports (LAN 1/LAN 2) are
located on the I/O backplane of the
motherboard. Each Ethernet LAN
port has two LEDs. The yellow LED
indicates activity, while the Link
LED may be green, amber, or off
to indicate the speed of the con-
nections. See the tables at right for
more information.
2-9 Onboard Indicators
LAN1 LAN2
Activity LED
Link LED
Onboard PWR LED Indicator
LED Status
Status Denition
Off System Off
On System on, or
System off and PWR
Cable Connected
Onboard Power LED (LED1)
An Onboard Power LED is located
at LED1 on the motherboard. When
LED1 is on, the AC power cable is
connected. Make sure to disconnect
the power cable before removing or
installing any component. See the
layout below for the LED location.
GLAN Ports 1/2 Link Indicator
LED Settings
LED Color Denition
Off No Connection/10 Mbps/100
Mbps
Amber 1 Gbps
Green 10 Gbps.
GLAN 1/2 Activity Indicator
LED Settings
Color Status Denition
Yellow Flashing Active
