Chapter 2: Installation
2-37
BIOS Recovery (JBR1)
The BIOS Recovery (JBR1) is used to en-
able or disable the BIOS Recovery feature
of the motherboard. Install the jumper on
pins 2-3 to begin the recovery process.
See Appendix D for related information.
Power Button
In addition to the soft power switch
provided in JF1, your motherboard is
equipped with a 'soft' power button on the
motherboard. This switch works the same
way as the soft power switch on JF1.

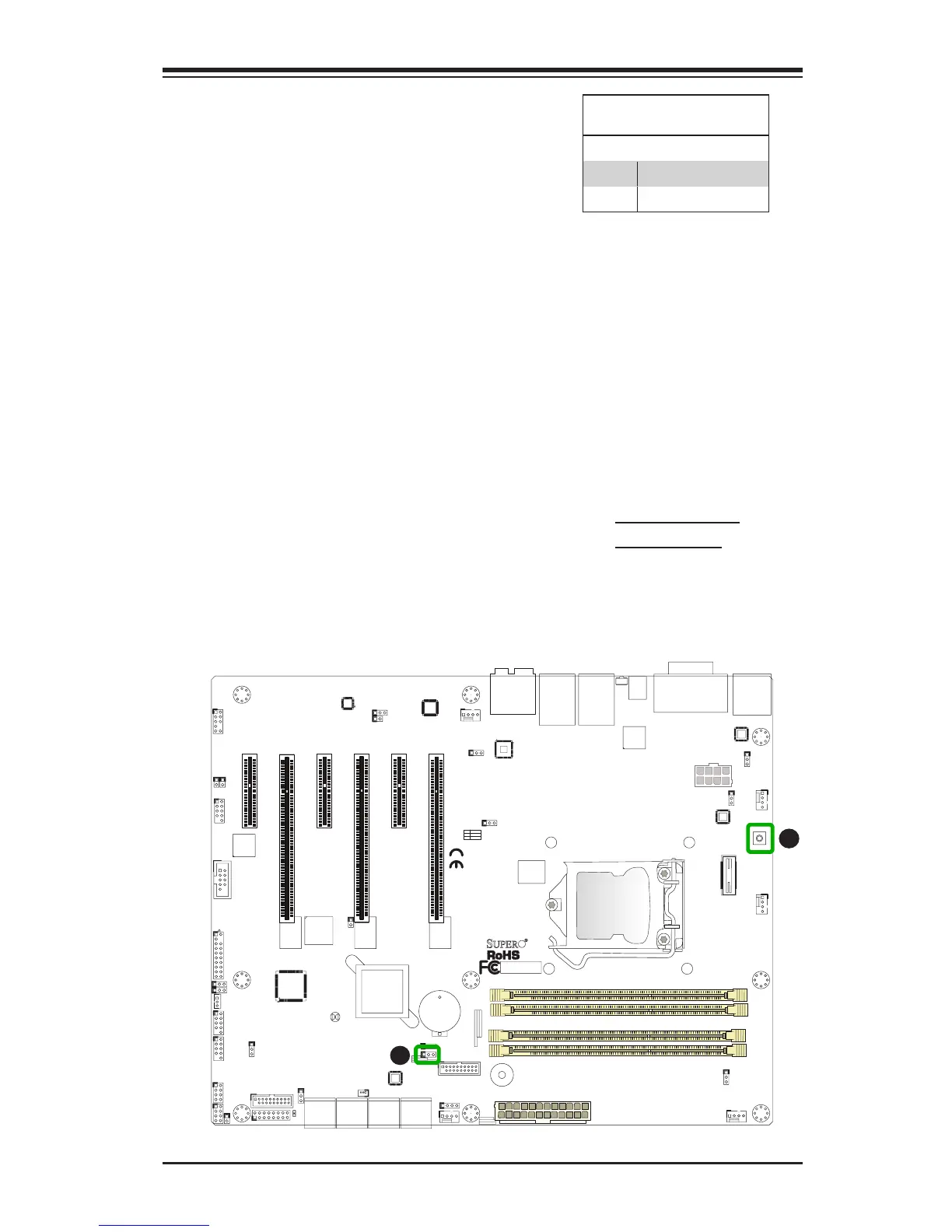

BIOS Recovery (JBR1)
Jumper Settings
Pin# Denition
1-2 Normal (Default)
2-3 Recover
A. BIOS Recovery
B. Power Button
A
B
