2-32

X10SAT User’s Manual

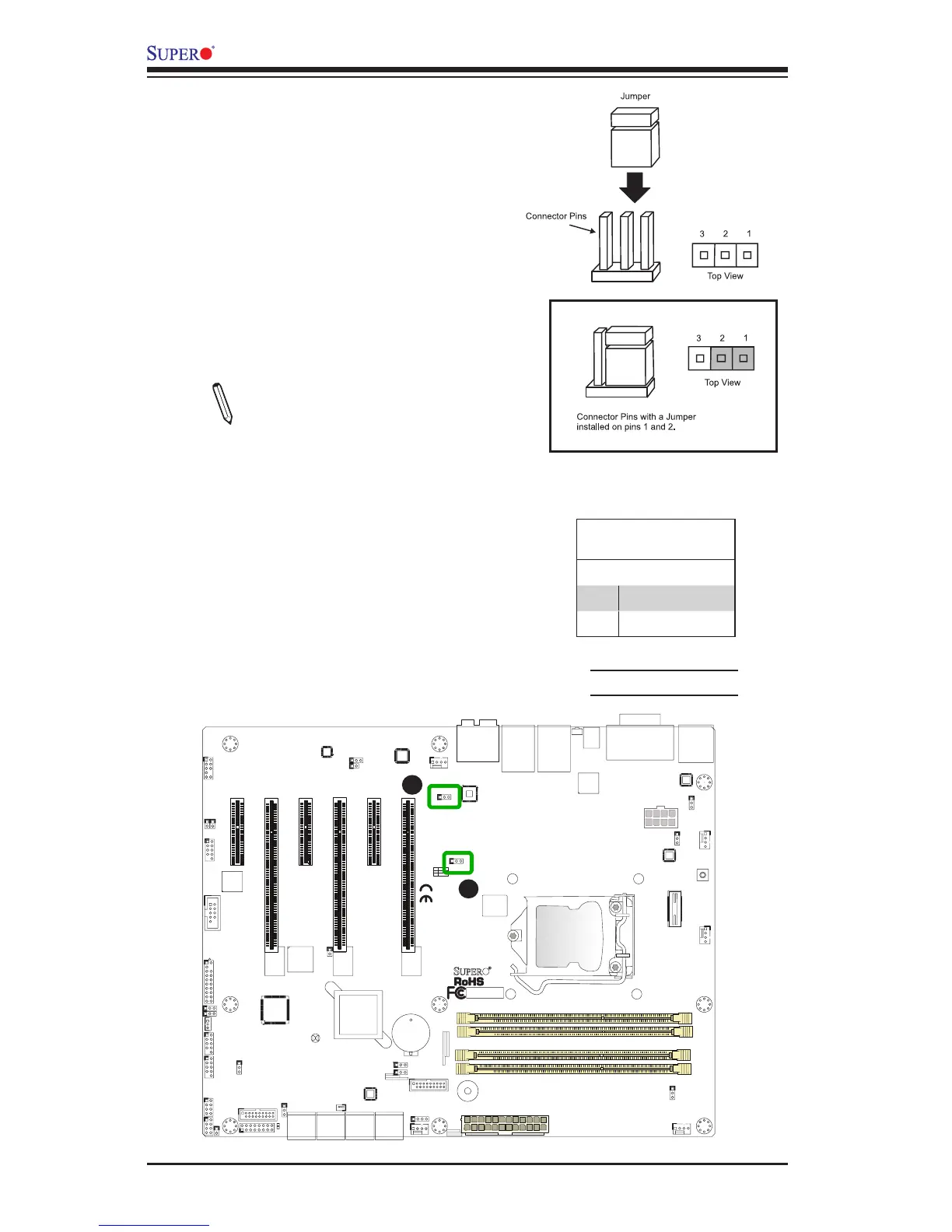

2-8 Jumper Settings

Explanation of Jumpers

To modify the operation of the mother-

board, jumpers can be used to choose

between optional settings. Jumpers create

shorts between two pins to change the

function of the connector. Pin 1 is identied

with a square solder pad on the printed

circuit board.

Note: On two-pin jumpers,

"Closed" means the jumper is on,

and "Open" means the jumper is

off the pins.

A. JPL1: LAN1 Enable

B. JPL2: LAN2 Enable

LAN1/LAN2 Enable/Disable

Jumpers JPL1/JPL2 enable or disable

LAN ports 1/2 on the motherboard. See

the table on the right for jumper settings.

The default setting is enabled.

GLAN Enable

Jumper Settings

Pin# Denition

1-2 Enabled (default)

2-3 Disabled
