Chapter 2: Installation

2-27

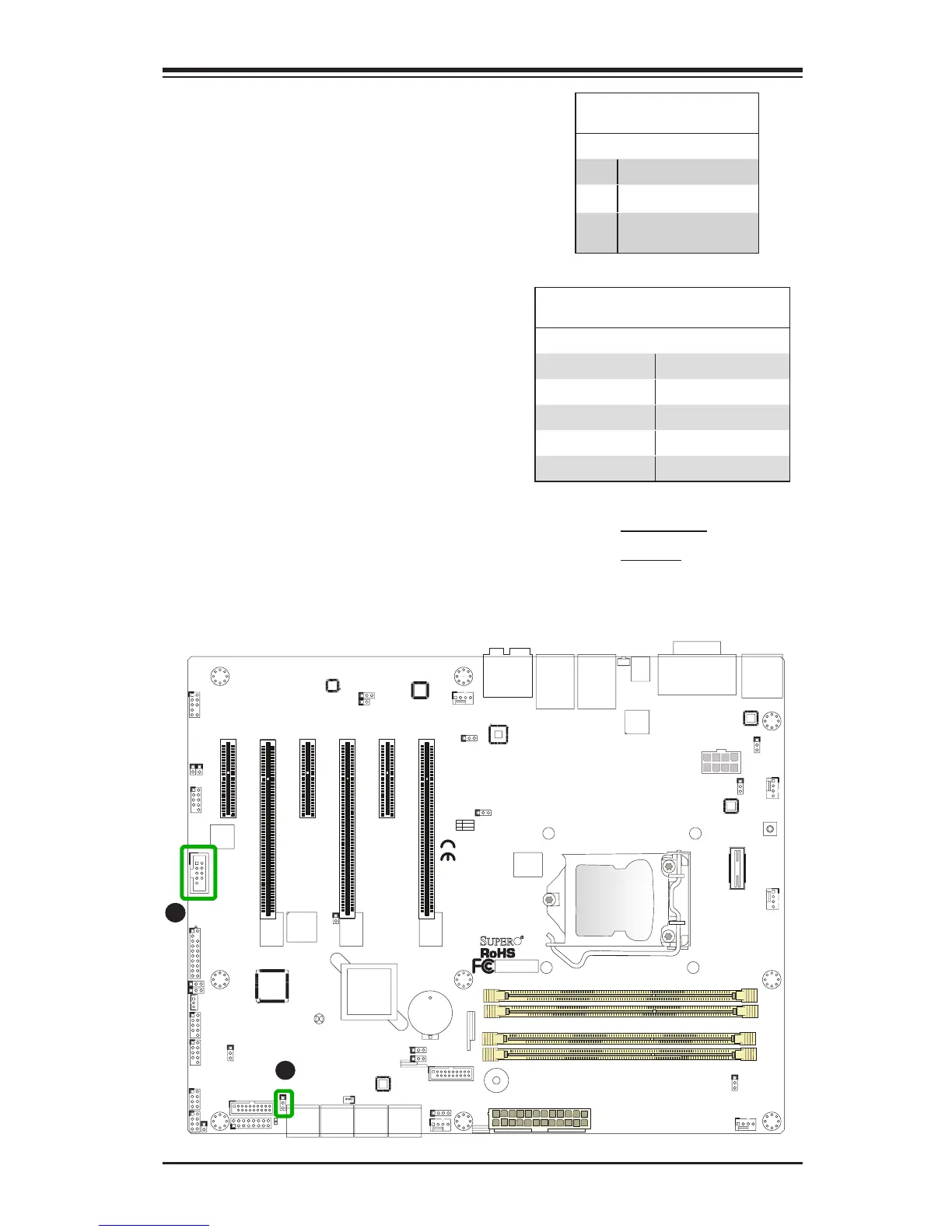

A. PWR LED

B. COM1

Onboard Power LED (JLED1)

An onboard Power LED header is lo-

cated at JLED1. This Power LED header

is connected to Front Control Panel

located at JF1 to indicate the status of

system power. See the table on the right

for pin denitions.

Onboard PWR LED

Pin Denitions

Pin# Denition

1 VCC

2 No Connection

3 Connection to PWR

LED in JF1

Serial Port (COM1)

There is one serial (COM) port header

on the motherboard. COM1 is located

next to the 1394 connection header.

See the table on the right for pin de-

nitions.

Serial/COM Ports

Pin Denitions

Pin # Denition Pin # Denition

1 DCD 6 DSR

2 RXD 7 RTS

3 TXD 8 CTS

4 DTR 9 RI

5 Ground 10 N/A

Supero X10SAT User Manual
