Supero X10SAT - DVI Port; HDMI Port; VGA Port

Chapter 2: Installation
2-19
B
C
A

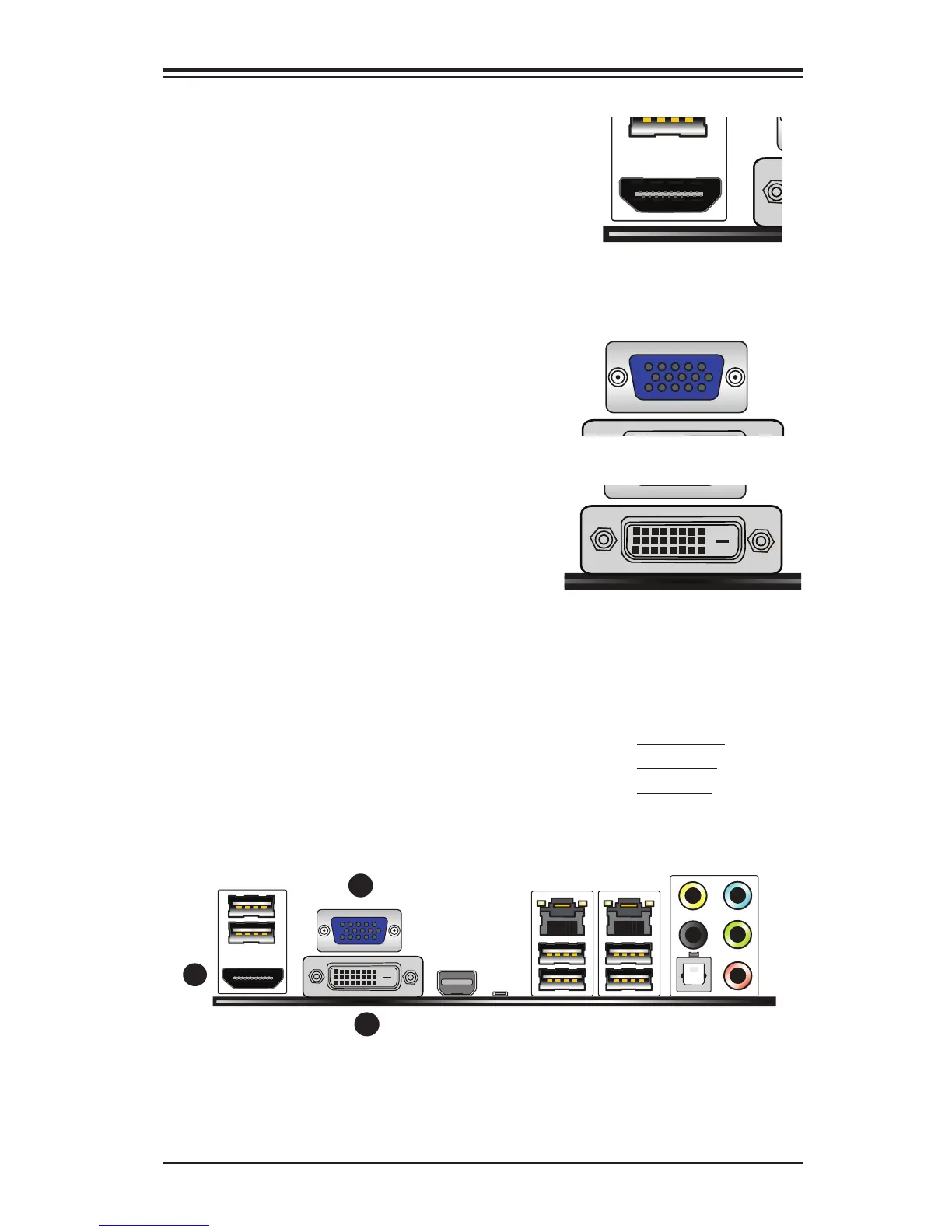

A. HDMI Port
B. VGA Port
C. DVI Port
HDMI Port
One HDMI (High-Denition Multimedia In-
terface) is located next to the VGA port on
the I/O backpanel. This connector is used to
display both high denition video and digital
sound through an HDMI capable display,
using a single HDMI cable (not included).
VGA Port
A VGA port is located next to the USB ports
0/1 on the I/O backpanel. Use this port to
connect to a compatible VGA display.
DVI Port
A DVI port is located just under the VGA
port on the I/O backpanel. Use this port to
connect to a compatible DVI (Digital Visual
Interface) display.
