CMOS Clear (JBT1)
JBT1 is used to clear the saved system setup conguration stored in the CMOS
chip. To clear the contents of the CMOS, completely shut down the system, remove
the AC power cord and then short JBT1 with a jumper. Remove the jumper before
powering on the system again. This will erase all user settings and revert everything
to their factory-set defaults.

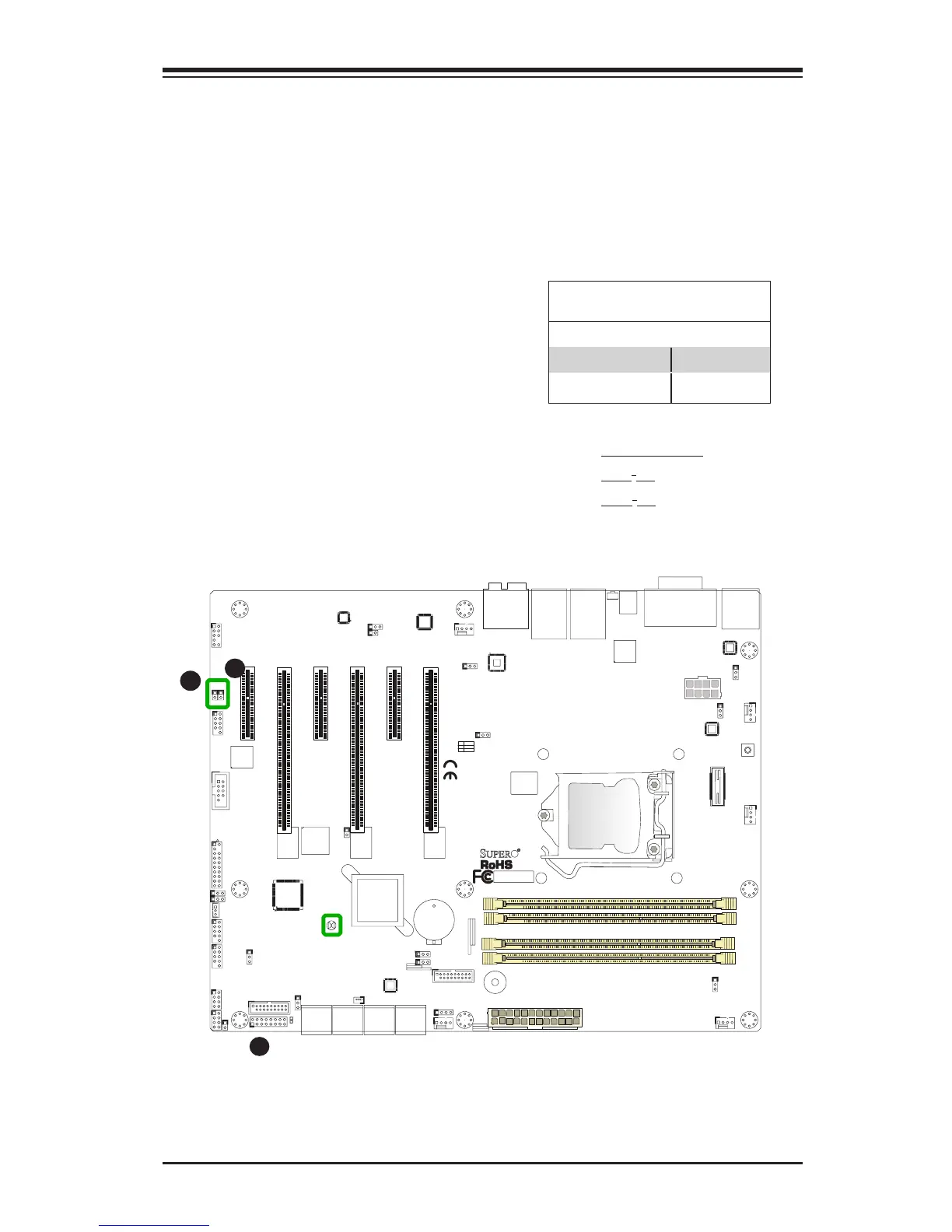

A. Clear CMOS
B. JI
2
C1
C. JI
2
C2
PCI Slot_SMB Enable
Jumper Settings
Jumper Setting Denition
Short Enabled
Open (Default) Disabled
PCI Slot SMB Enable (I
2
C1/I
2
C2)
Use Jumpers I
2
C1/I
2
C2 to enable PCI
SMB (System Management Bus) support
to improve system management for the
PCI slots. See the table on the right for
jumper settings.
