Supero X10SAT User Manual

Chapter 2: Installation
2-31

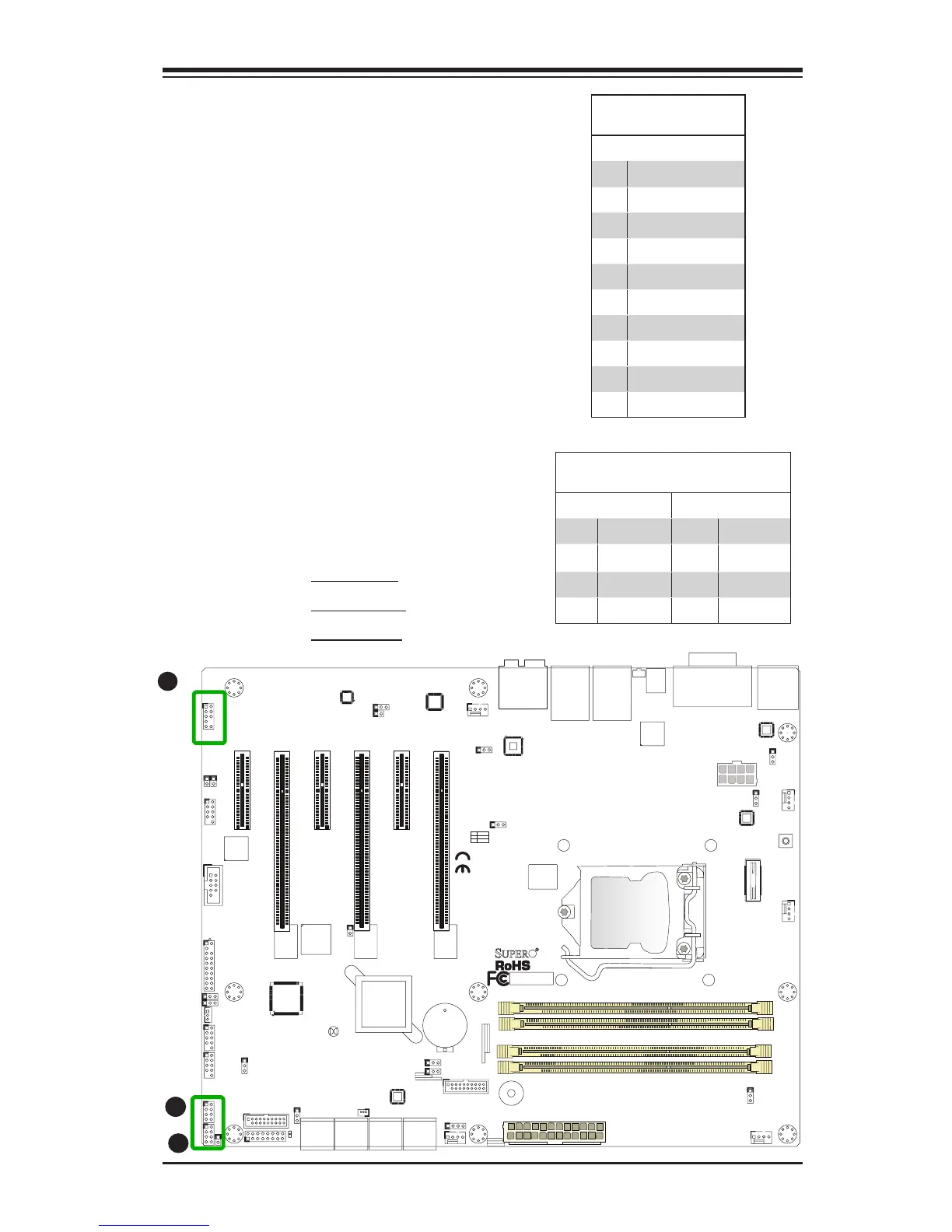

B
C
A. AUDIO FP
B. T-SGPIO 1
C. T-SGPIO 2
A
Front Panel Audio Header (AUDIO FP)
A 10-pin Audio header is supported on the
motherboard. This header allows you to
connect the motherboard to a front panel
audio control panet, if needed. Connect an
audio cable to the audio header to use this
feature (not supplied). See the table at right
for pin denitions for the header.
10-in Audio
Pin Denitions
Pin# Signal
1 Microphone_Left
2 Audio_Ground
3 Microphone_Right
4 Audio_Detect
5 Line_2_Right
6 Ground
7 Jack_Detect
8 Key
9 Line_2_Left
10 Ground
T-SGPIO 1/2 Headers
Two SGPIO (Serial-Link General Pur-
pose Input/Output) headers (TSGPIO-1/T-
SGPIO-2) are located on the motherboard.
These headers support serial link interfaces
for the onboard SATA and SAS connectors.
See the table on the right for pin deni-
tions. Refer to the board layout below for
the location.
T-SGPIO
Pin Denitions
Pin# Denition Pin Denition
1 NC 2 NC
3 Ground 4 Data
5 Load 6 Ground
7 Clock 8 NC
