D-4
X10SRL-F
User
’s
Manual
5.

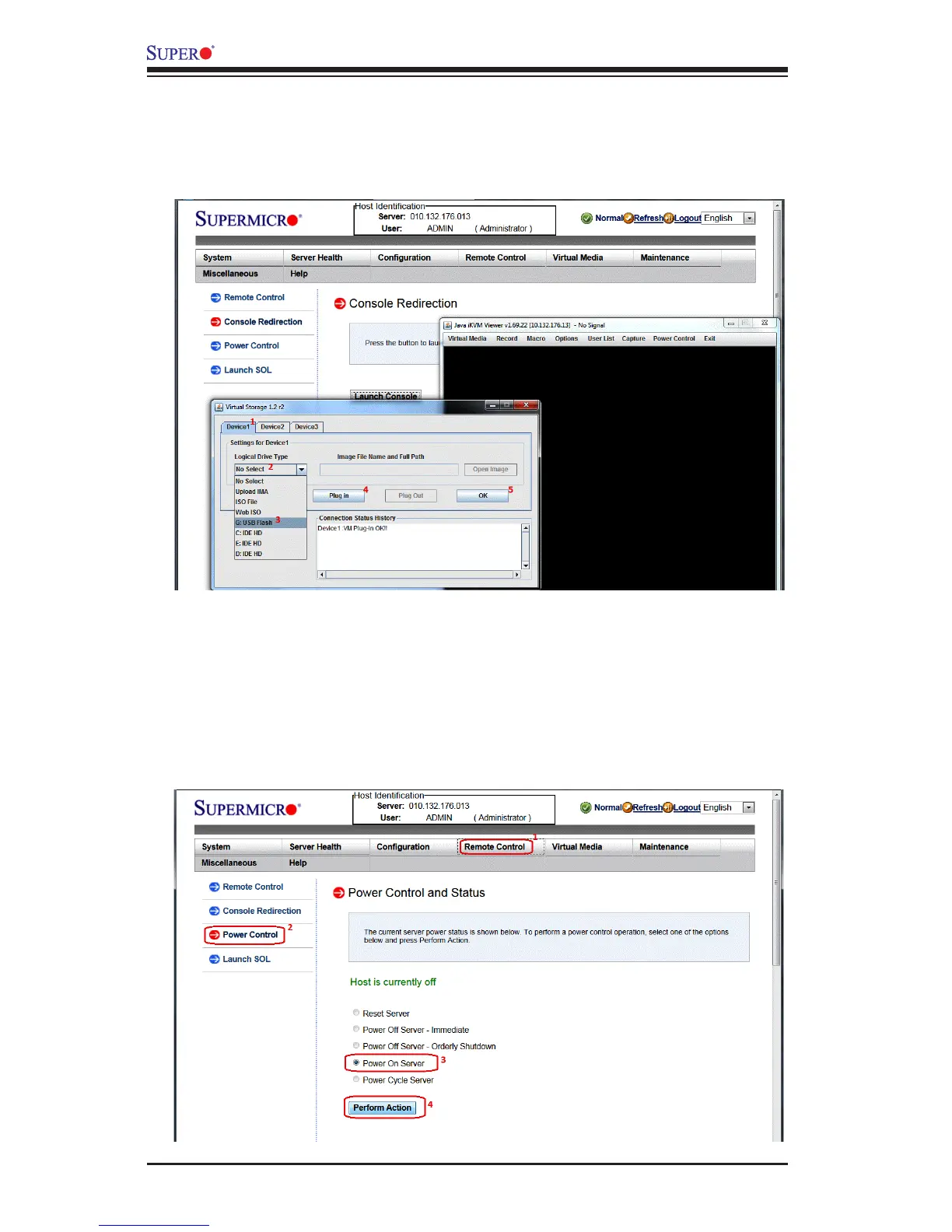

In the Virtual Media loader
, click on the
Device1
tab, then
Logical Drive
T
ype
drop-down
menu,
then
select
the
USB
ash
drive
with
Super
.ROM.
Click
Plug In
, then
OK
.
6.
Click on the
Remote Control
tab, then
Power Control
, then check the
Power On Server
button. Click on the
Perform Action
button to power up
the system.
125
127
