6.3.6 Fuses
To protect the battery against short-circuits, fuses must be installed in the POSITIVE
line between the wind generator and the charge controller and in the POSITIVE line
between the charge regulator and the battery. These fuses must be 10 amp slow-blow
type or appropriate circuit breakers. See Fig. No. 6.3.5.5.
The fuses or breakers must be installed as close to the battery as possible, but not
within the same compartment, due to the possible generation of explosive hydrogen
gas while charging the batteries.

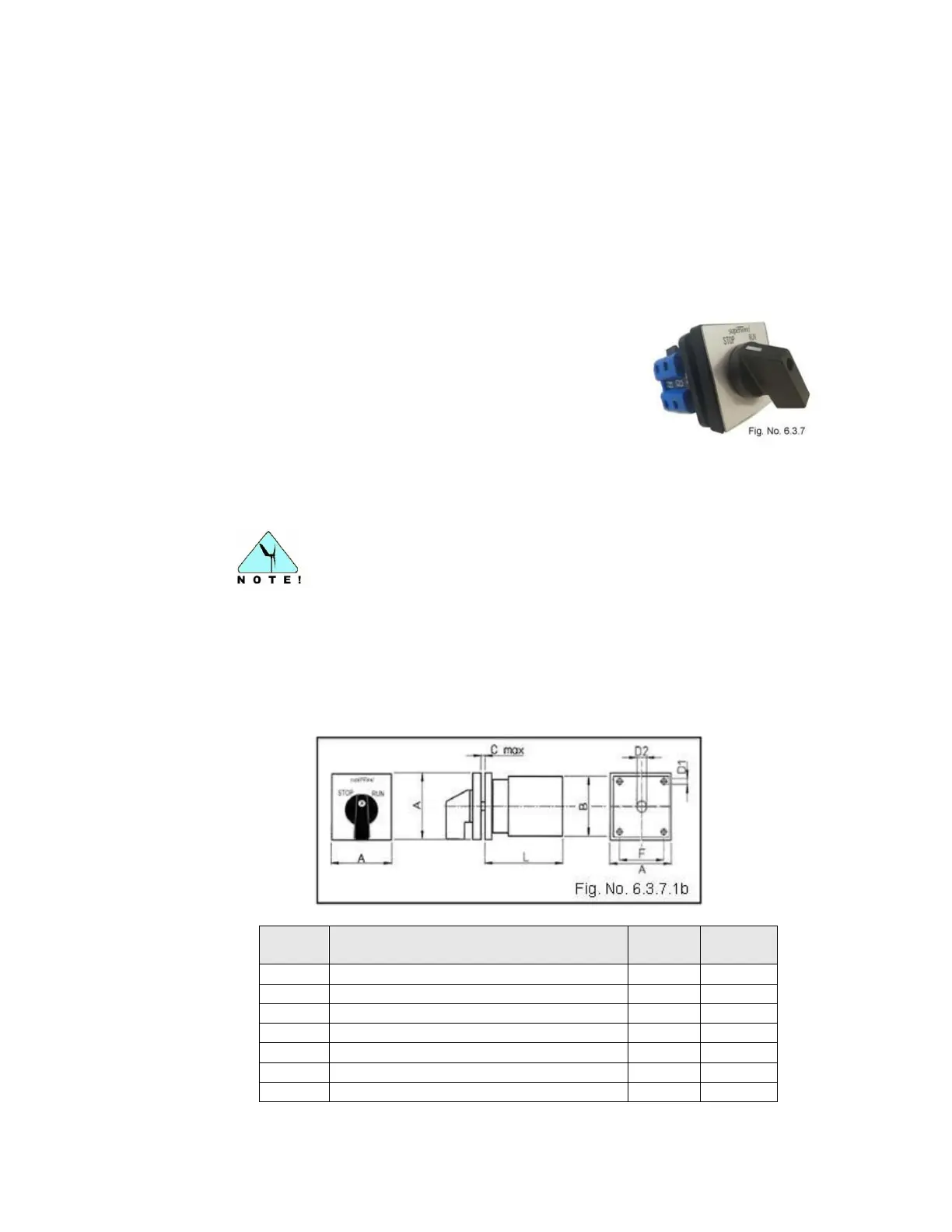

6.3.7 Stop Switch
The stop switch is used to shut down the wind generator
or to prevent starting of the rotor during maintenance,
repairs or when working in the turbine operational area.
In the STOP position, the switch connects the positive and
negative output wires of your Superwind 350/48V, short-circuiting its generator and
substantially reducing rotor speed. In the stop position, the switch also disconnects the
shorted generator from the battery circuit.
Installation of the provided Stop Switch is mandatory for safe
operation of your Superwind 350/48V.
6.3.7.1 Mounting
The stop-switch is designed for indoor panel mounting only. The stop switch
shaft is adjustable to fit panels up to 7/8” (22 mm) thick. Fig. No. 6.3.7.1a.
6.3.7.2 Dimensions
Side
Dimensions
Table No. 6.3.7.2
mm
inches
A
FRONT VIEW: length & width
48
1.88”
B
REAR VIEW: length & width
42
1.65”
C
Panel Maximum Fitting Space
22
0.86”
D1
Screw fitting hole1 OD
4.1
1.61”
D2
OD Switch axle
20
0.78”
F
Screws fitting holes distance OC
36
1.41”
L
Inside cabinet
55
2.16”
