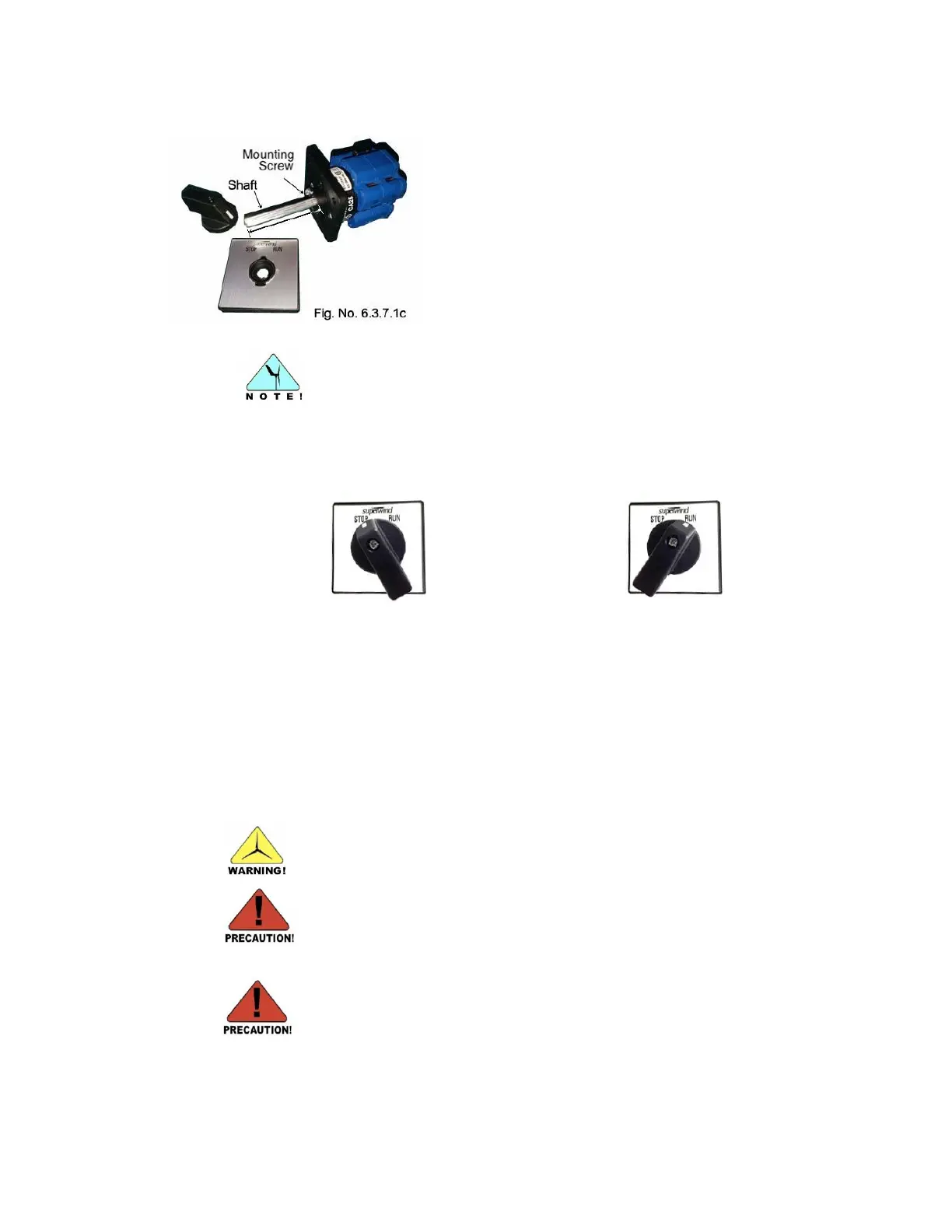

Before installing the switch, adjust the shaft to the
length required and secure it by means of the mounting
screw (Fig No. 6.3.7.1c).
For very thin panels, it may be necessary to cut off the mounting
screw head afterwards for proper mounting.
6.3.7.3 Electrical Connection
The stop switch has two positions:
The positive and the negative wires from
the wind generator are short-circuited
(generator short-circuit brakes the rotor).
The positive and the negative lines from
the battery or battery bank are open and
disconnected from the wind generator.
The positive and negative wires
from the wind generator are
connected to the battery or battery
bank via the SCR 48V charge
regulator.
All electrical work must be completed only by properly trained
technicians!
Disconnect all battery or battery bank terminals from the system prior to
making any system connections!
INSTALLATION OF THE INCLUDED STOP SWITCH AND SCR 48V
CHARGE REGULATOR IS MANDATORY!
IF THE CHARGE REGULATOR BECOMES INOPERATIVE, TURN
THE TURBINE OFF UNTIL THE CHARGE REGULATOR CAN BE
REPLACED.
DO NOT OPERATE THE SUPERWIND 350/48V WITHOUT AN
OPERATIONAL CHARGE REGULATOR INSTALLED!
