BUSHING QUICK GUIDE
BUSHING QUICK GUIDE
Chart No. 7.2.2
Type of Bushing
Dampener
Rings
On/Off
Inner Hardware
Outer Hardware
American Delrin
®
(White)
Fig. No. 7.2.2a
ON
(3) – Socket Cap
Screw
with rubber rings (M6
X 8)
(2) – Hexagon socket button
head screw (M6 x 6 or M6 x
12)
American
Stainless Steel
Fig. No. 7.2.2b
OFF
(3) – M6 x 14
(4) – Pan head ¼” 20 screw
(or alternative) with TUFLOK
American Delrin
®
(Black)
Fig. No. 7.2.2c
OFF
(3) – Socket Cap
Screw
with rubber rings (M6
X 8)
(2) – Hexagon socket button
head screw (M6 x 6 or M6 x
12)

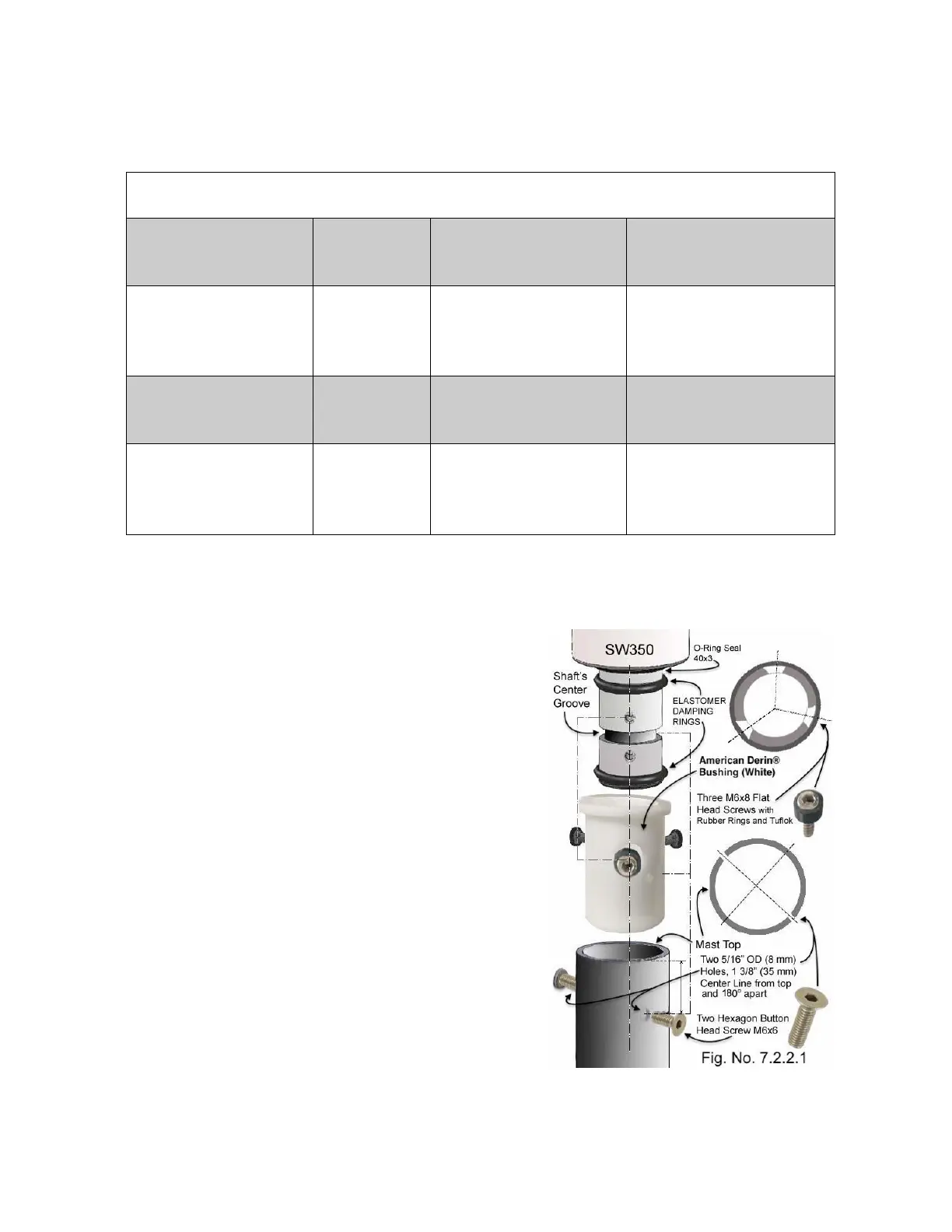

7.2.2.1 American Delrin
®
(White) Bushing
The Superwind 350/48V comes
with two (2) black elastodamphner
rings installed on the yaw shaft (Fig.
No. 7.2.2.1). When using the
American Delrin
®
(White) bushing,
both of the black elastodamphner
rings installed on the SW350/48V
must stay on the yaw shaft during
installation. Coating the elasto-
damphner rings and inside of the
bushing with Vaseline
®
(supplied)
prior to installation will lessen
resistance when inserting the yaw
shaft into the bushing. Delrin
®
will
swell slightly in salt water
applications. This can be useful in
helping to reduce any non-circular
dimensions of the mast. When
installed correctly, the bushing
provides both sound and vibration
dampening.
The inner diameter of the American
Delrin
®
(White) bushing is 44.2 mm
(1.74 inches). The maximum outer
