Never substitute or install a non-Superwind stop switch. The Superwind stop
switch is specifically designed to disconnect the Superwind 350/48V from the
battery while simultaneously shorting the turbine leads, shutting down the
rotor. The stop switch must be installed in line between the wind generator
and the SCR 48V, as close to the wind generator as possible (see Fig.
6.3.7.5).
The wires between the Superwind generator and the stop switch must be kept
as short as possible. For appropriate conductor cross-section refer to section
6.3.1.
Installation of 10 amp slow-blow fuses in the positive (+) wire
between the stop switch and SCR 48V and the positive (+) wire
between the SCR 48V and the battery is mandatory!
Never install a circuit breaker or fuse between the stop switch and
the Superwind generator!

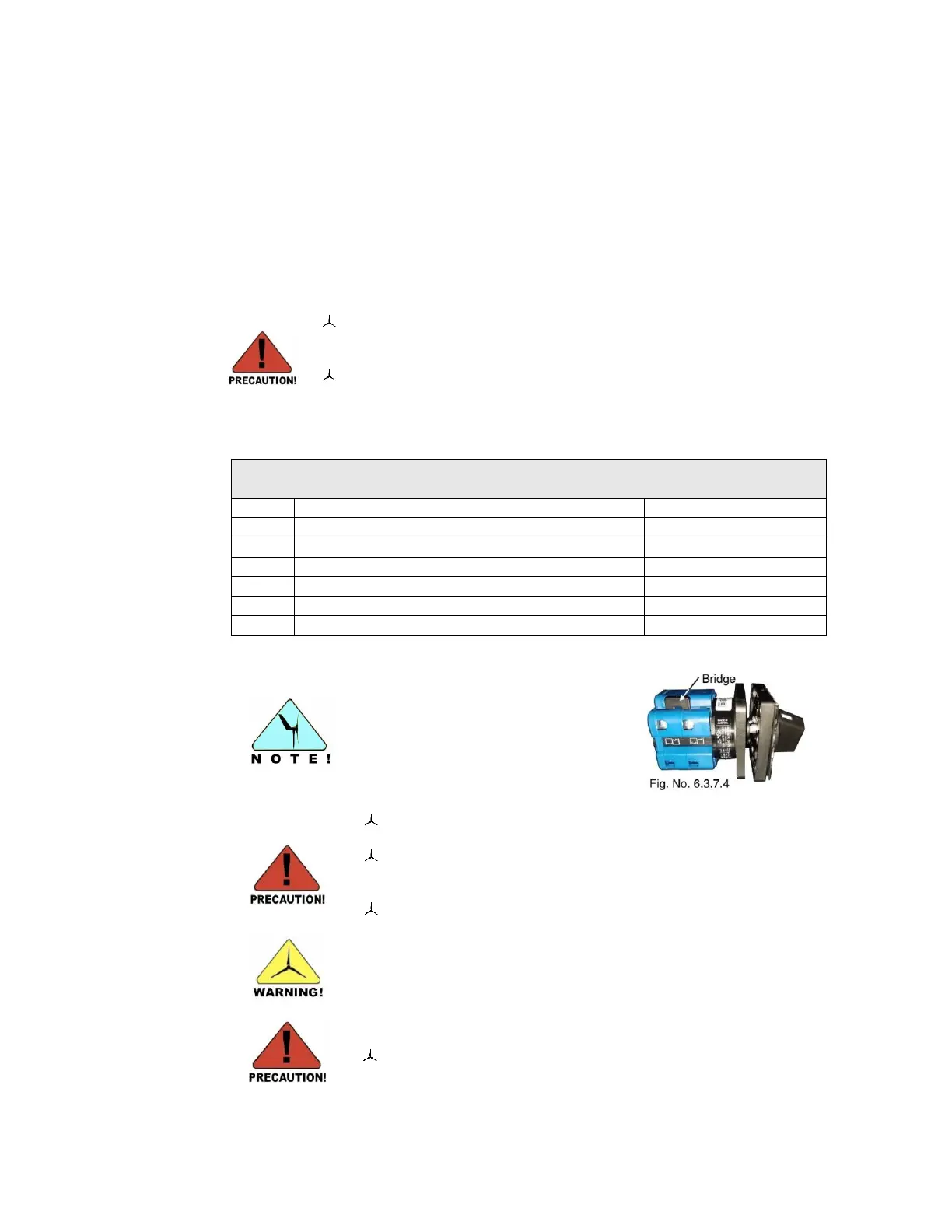

6.3.7.4 SWITCH TERMINALS
SWITCH TERMINALS
Table 6.3.7.4
Line
Description
Terminal Number
1
Superwind generator (+) Positive
2
2
Superwind generator (-) Negative
6
3
Charge regulator input (+)
3
4
Charge regulator input (-)
7
5
No connection allowed
4
6
No connection allowed
8
Do not remove the bridge
connecting terminals 1 and 5! The
stop switch will not operate
properly without it!
There are 8 wiring posts on the stop-switch. Only those
described in Table 6.3.7.4 should be used.
Ensure all terminal screws are properly tightened. If terminal
screws are loose (even those for terminals not in use) your
Superwind unit may not perform correctly.
Check the tightness of all stop switch terminal screws as part
of your annual Superwind inspection.
NEVER INSTALL A CIRCUIT BREAKER OR FUSE BETWEEN
THE STOP SWITCH AND THE WIND TURBINE.
Never install a non-Superwind stop switch!
