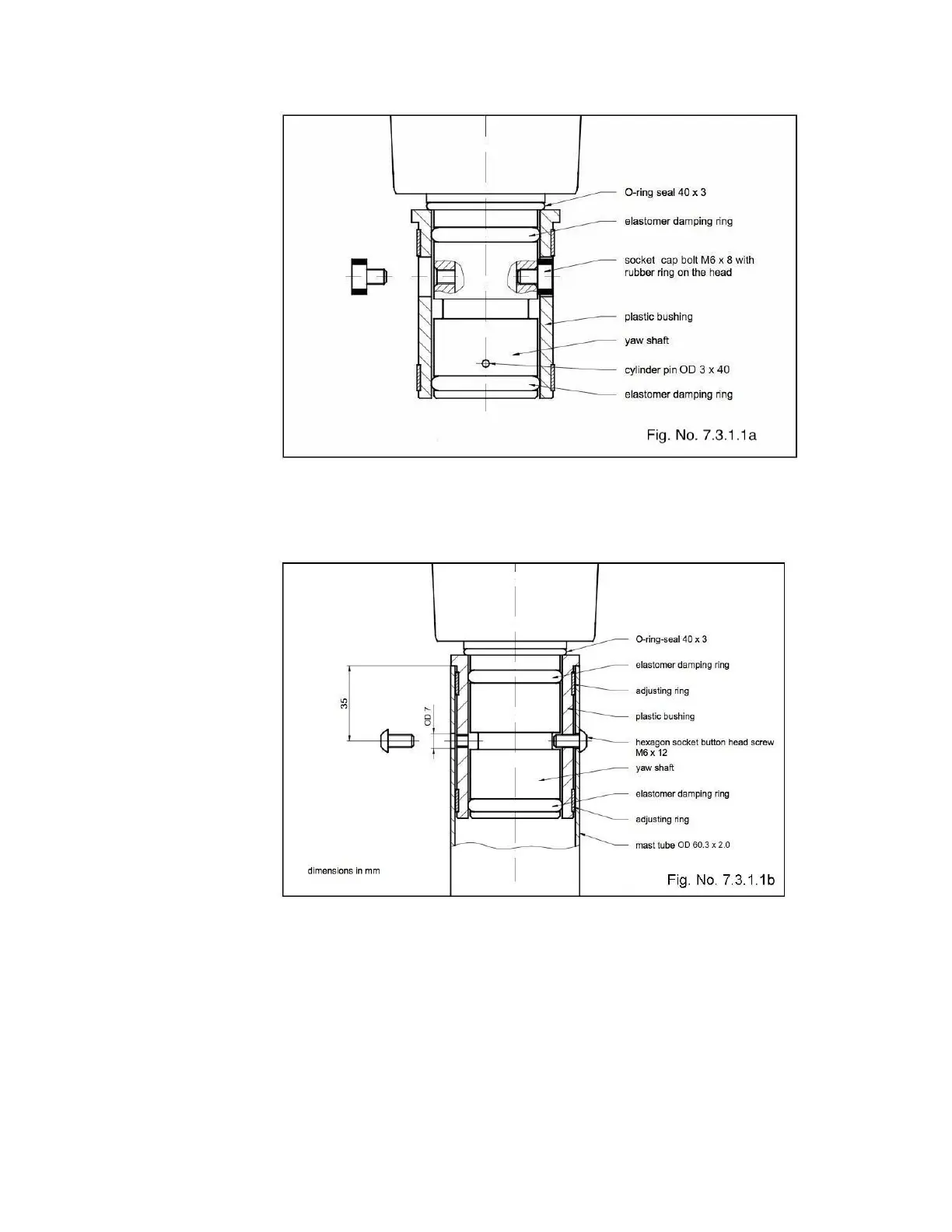

Insert the yaw shaft of the Superwind 350/48V with the plastic bushing to the
limit stop (collar) and align the tapped holes with the drilled holes of the mast
(Fig. No. 7.3.1.1b).
Apply a small amount of Locktite
®
to the threads of the two hexagon socket
button head bolts (M6 x 12), insert and tighten for axial attachment. The bolts
now extend into (but do not touch) the groove of the yaw shaft.
