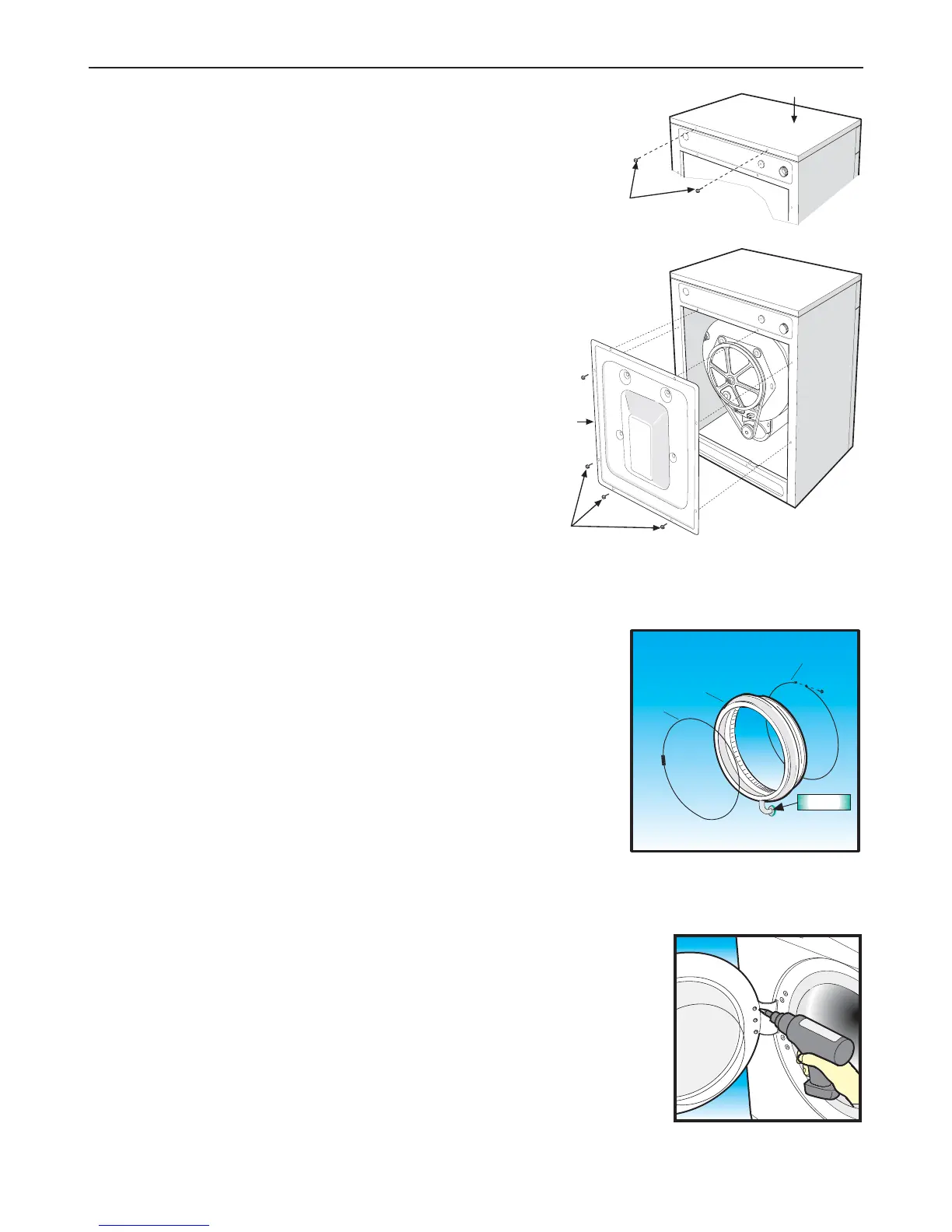

Step 3 Removing the door gasket (E020):
(a) Remove the top cover and rear panel (Steps 1 and 2).
(b) Open the door and remove the sprung clamp band (E030).
Then release the door gasket (E020) from the front panel
of the cabinet.
(c) From above, unscrew the inner sprung clamp band (E010)
then carefully remove the door gasket from the tub. Note that
the water drain pipe at the bottom must also be removed with
the gasket. The drain pipe is held in position by a high tempe-
rature water resistant sealant (Bostik type).
(d) To re-assemble, follow the same procedure in reverse order,
taking care to clean any hardened sealant from the door seal
drain pipe housing.
For 33 cm and 39 cm washing machines: to re-assemble, insert a spacer under
the wash motor to obtain more working space for fitting the
door gasket.
Follow the same procedure in reverse order, taking care to clean
any hardened sealant from the door gasket drain pipe housing.
(e) Apply new high temperature water-resistant sealant (Bostik
type) to the door gasket drain pipe.
Step 4 Removing the door:
(a) Open the door and remove the three screws (E120)
fixing the door to the hinge.
(b) To re-assemble, follow the same procedure in reverse order
A030
A080
Step 1 Removing the top cover (A020):
(a) Remove the 2 fixing screws (A070) on the rear of the top
cover (A020) of the cabinet.
(b) Lift the back part of the cover and push it forwards to remove it.
(c) To re-assemble, follow the same procedure in reverse order
Step 2 Removing the rear cover (A030):
(a) Remove the eight fixing screws (A080) securing the
rear panel (A030) to the cabinet.
For 33 cm and 39 cm washing machines:
(a) Remove the twelve fixing screws (A080) securing
the rear panel (A030) to the cabinet.
(b) To re-assemble, follow the same procedure in reverse order.
DASVDFFB
VV, LBB 2
E010
BOSTIK
E030
E020
