Supra SW5L65D - Replacing the Tub And;Or the Lower Counterweight

F070
E020
BOSTIK
C060
G310
G140
G210
G580
G170
G160
G060
G530
G340
G350
G440
G450
G070
G360
G030
G044
G570
G240
G550
G670
G080
G300
G290
G004
For screwed
tub back plates
G005
G560
G570
G019
Version
with 2
thermostats

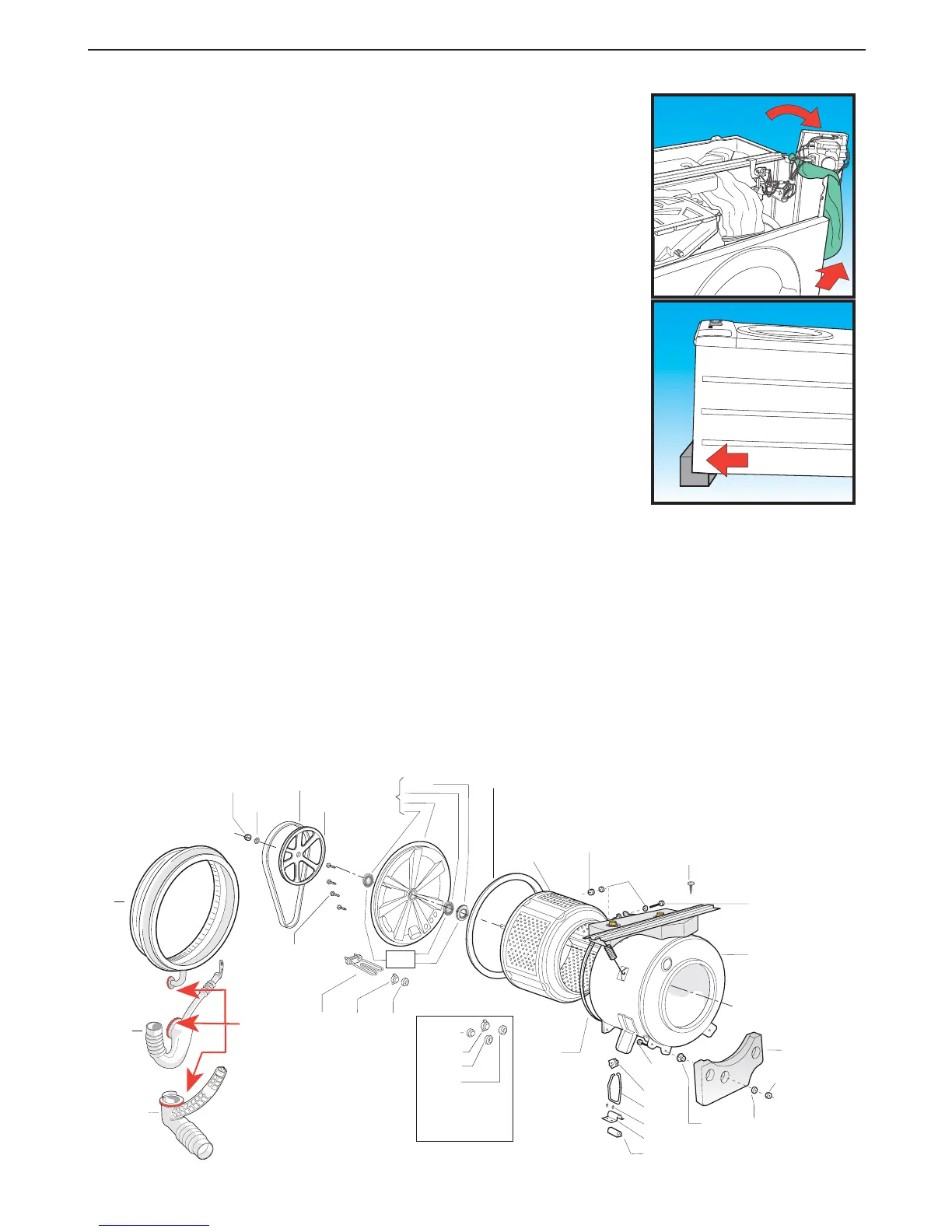

Step 20 Replacing the tub (G030) and/or the lower counterweight (G080):
(a) Remove the top cover (Step 1).
(b) Remove the rear cover (Step 2).
(c) Remove the door gasket (E020) (Step 3).
(d) Remove the detergent drawer (Step 21) and detergent dispenser
(Step 12).
(e) Remove the control panel (Step 28) without removing the electrical
components, buttons, knobs and move it to one side (see drawing).
(f) Remove the two fixing screws (A220) securing the electronic module
support (A200) to the cabinet (Step 10) without removing the
electronic wash module (A210).
(g) Disconnect the wires from the main motor, the heater element, the
fixed thermostat (G560), thermistor (G005), the solenoid valves
(D010) and (D300) and the electric pump (F010). Disconnect the
earthing system from the tub by removing the relative screws.
(h) Free the lower part of the tub from the friction pads or from the
dampers using a 17 mm box spanner.
(h) Remove the cable grommet and pressure switch support (D019)
(Step 11), and disconnect the pressure switch (D020) from the air
pipe (F190).
For 39 cm, 33 cm and 47 litre washing machines:
(i) Remove the cable grommet (D070) (Step 11), and disconnect
the pressure switch (D020) from the air pipe (F190).
(j) Use a 7 mm box spanner to remove the hose clip (F110) in order
to disconnect the pressure switch chamber rubber coupling (F070)
from the filter body (F020).
(k) Remove the drive belt (G170) (Step 9) and motor (G130) (Step 13).
(l) Remove the tub back plate (G550) together with the drum assembly
(G530) (Step 18).
(m) Lie the machine on its back on a blanket.
(n) Remove the four cross-member fixing screws (G440), remove the
wiring from under the spring anchor cross-member in order to
protect it from damage during the removal of the tub.
Place two pieces of wood between the tub and the cabinet. Extract the tub (G030) from the top part
of the cabinet, sliding it on the two pieces of wood.
Recover all the remaining fixed components.
(o) To re-assemble, follow the same procedure in reverse order, taking care to apply BOSTIK type
sealant between the tub and the various rubber unions (see drawing).
Removing the lower counterweight (G080):
(p) Carry out all the operations described above except for points k and l.
Once the tub has been removed, use a 13 mm box spanner to remove the three nuts (G290),
the three washers (G300) and then replace the counterweight (G080).
To re-assemble, follow the same procedure in reverse order.
G100
G110
G460
G120
Z240
