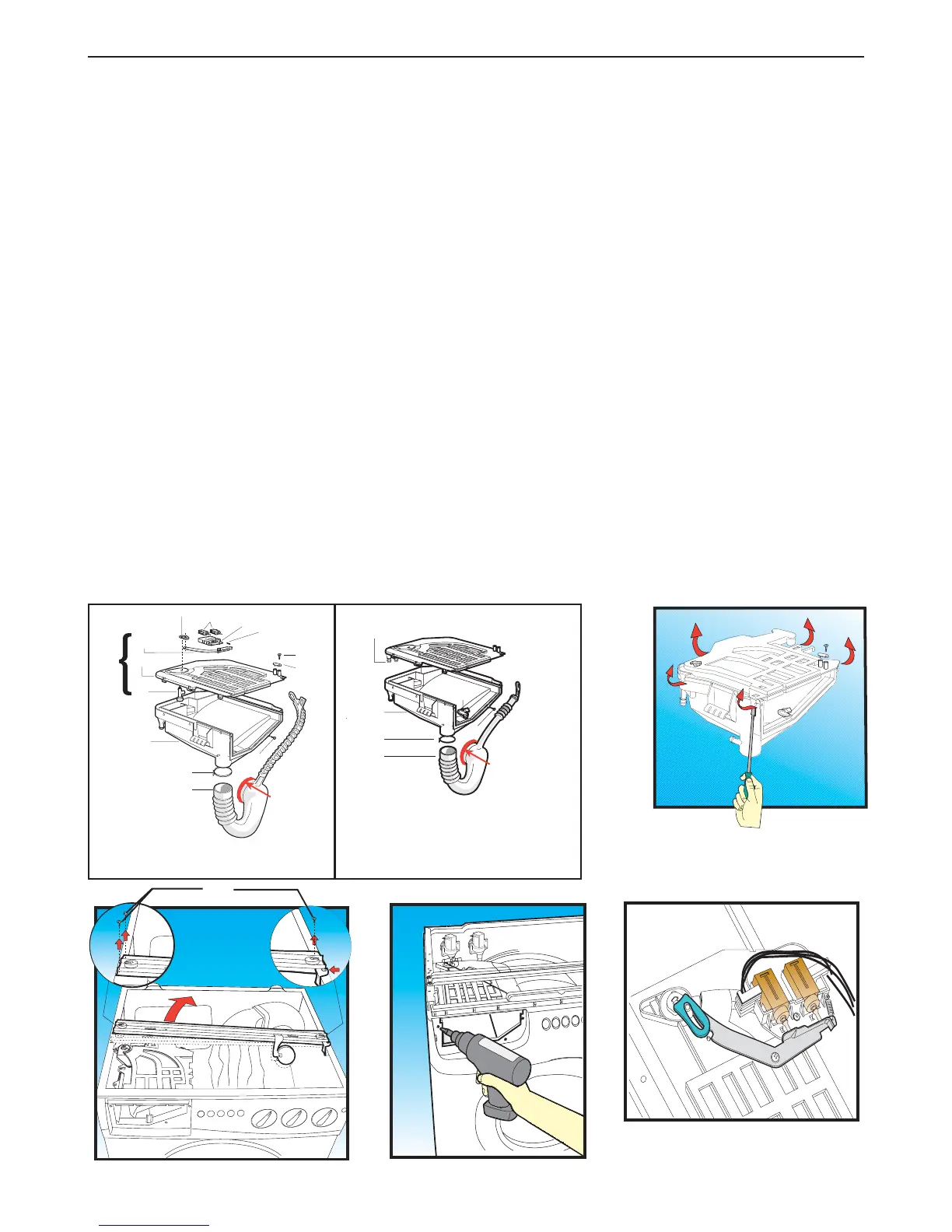

Step 12 Removing:
- the detergent dispenser cover (C020)
- the detergent feed/steam discharge coupling (C060)
- the detergent dispenser (C010)
Common operations:
(a) Remove the top cover (Step 1).
(b) Remove the detergent drawer (C030) from its housing by levering downwards and pulling. (Step 21).
(c) Remove the two thermo-actuators (C006) without disconnecting the wiring.
(d) Unscrew the three screws (G440) of the spring anchor cross-member (G010), the two on the left and
the back right one (looking at the front of the machine  see drawing). Lift the cross-member (G010) and
move the oscillating unit a few centimetres towards the back of the appliance, taking care not to allow it
to fall inside the cabinet.
(e) Remove the three steel screws (C150) securing the dispenser to the front panel.
(f) Release the steam discharge coupling fitted on the right of the dispenser.
- the detergent dispenser cover (C020)
(g) From the top, remove the detergent dispenser from its housing.
(h) Use a flat screwdriver to lever the sides of the cover (C020) near to the lugs clamping it to the dispenser
body (C010) and lift off the cover. Recover the following components:
- distributor control lever arm (C180)*
- distributor control activation lever (C180)*
- thermoactuator housing (C005)*
- thermoactuators (C006)*
- linkage lever return spring (C004)*.
*If fitted to the particular model.
- the detergent dispenser (C010)
(i) Use a pair of pliers to remove the spring clip (C140) securing the detergent feed coupling to the dispenser.
(j) Remove the hose clip (C130) from the solenoid valve pipe and hose clip (C008) from the conveyor pipe.
Then disconnect the pipes from the detergent dispenser.
- the detergent feed/steam discharge coupling (C060)
(k) Remove the detergent feed and steam discharge coupling (C060) from the tub.
(l) To re-assemble, follow the same procedure in reverse order, applying Bostik type sealant between
the coupling and the tub.
Position spring clip (C140) in such a manner that it does not interfere with the tub during operation.
Screws (C150) securing the detergent dispenser to the front panel must be screwed in using a
manual screwdriver to prevent stripping the threads in the detergent dispenser holes.
D
A
SV
D
FF
B
V
V, LB
B 2
G440
Version with thermoactuator
water control
Version with dual solenoid
valve water control
