Supra SW5L65D - Removing And;Or Replacing the Power Supply Cable;Supressor

Step 11 For 39 cm washing machines:
For 47 litre washing machines:

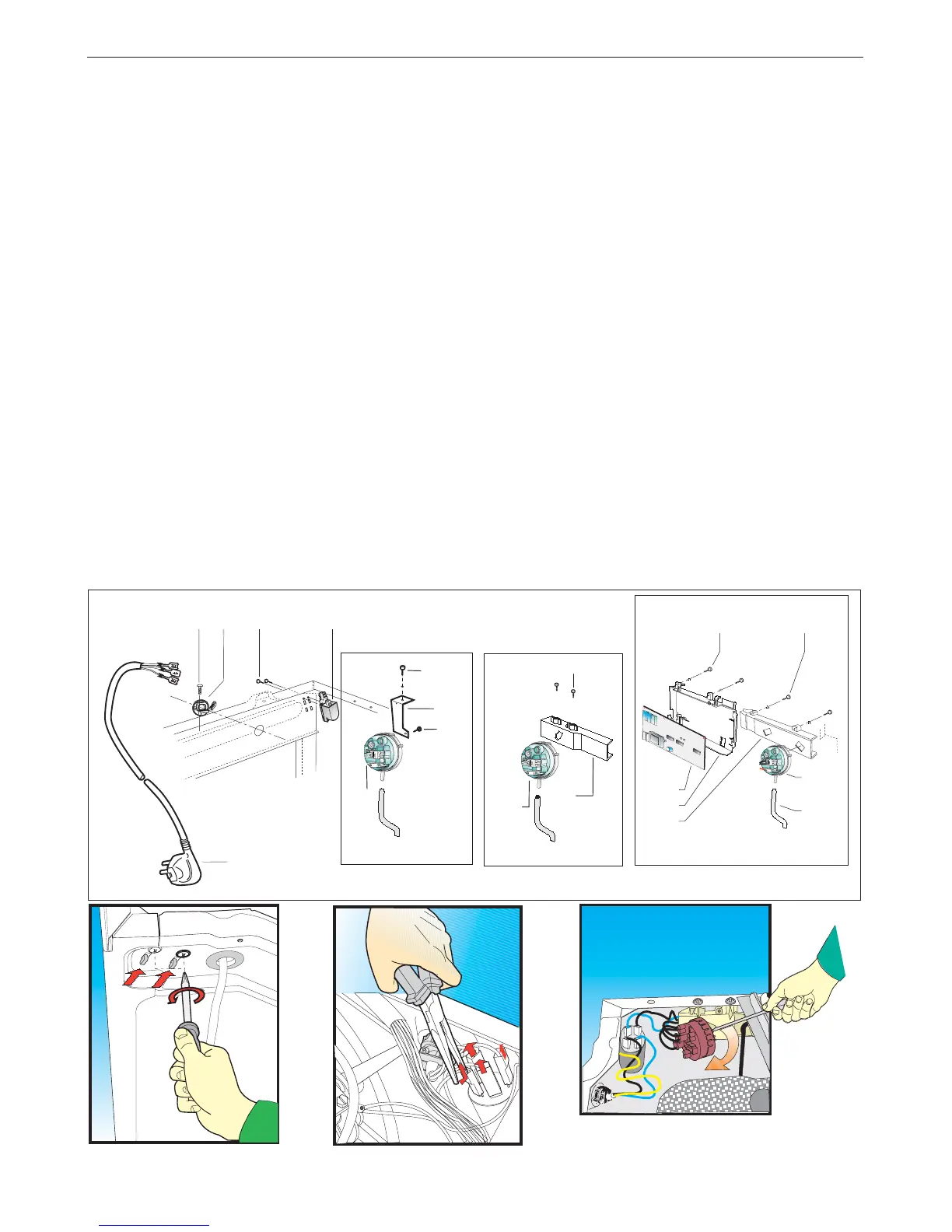

Removing and/or replacing:
- the power supply cable (D100)
- the suppressor (D240)
- the cable grommet (D070)
- the pressure switch (D020)
The following operations are common to all four components:
Remove the top cover (Step 1).
(a) To remove the power supply cable (D100), simply disconnect the wires from the suppressor (D060),
noting their positions. Important : The wires must be disconnected using a pair of pliers to pull off the
fastons without any sideways movement. It is also important not to pull the wires as this may
compromise the operation of the faston connectors.
(b) Use a crosshead screwdriver to slacken screw (D260) on the cable grommet (D070), then pull the cable
(D100) outwards.
To re-assemble, follow the same procedure in reverse order.
(c) To remove the suppressor (D240), disconnect the power supply cable (D100).
(d) Use a crosshead screwdriver to slacken the two screws (A015) from the outside of the appliance,
then release it.
To re-assemble, follow the same procedure in reverse order, taking care to insert the two radio suppressor
lugs in their respective slots in the appliance cabinet.
(e) To remove the cable grommet (D070), first remove the power supply cable (D100), then press the retaining
lugs on the sides of the cable grommet, grasp the cable and remove the entire unit (power cable plus
grommet).
(f) Remove fixing screw (D260) and then remove the power supply cable (D100).
To re-assemble, follow the same procedure in reverse order.
(g) To remove the pressure switch (D020), disconnect the wires, noting their positions, then remove the
switch itself from its mounting box (D013) using a flat head tool to lever the locking tabs. Remove the air
pipe (F190).
For 33 cm machines:
(g) To remove the pressure switch (D020), disconnect the wires, noting their positions, then use a
crosshead screwdriver to remove fixing screw (D210) securing it to the support bracket (D006).
Remove the air pipe (F190).
To re-assemble, follow the same procedure in reverse order.
D240
D070D260 A015
D210
D020
D006
D015
D020
D013
D014
A220
A200
D013
D014
A210
D020
F190
39 cm
33 cm
47 litres
D100
