Supra SW5L65D - Removing the Door Handle Assembly And;Or the Door Surround; Removing the Door Glass

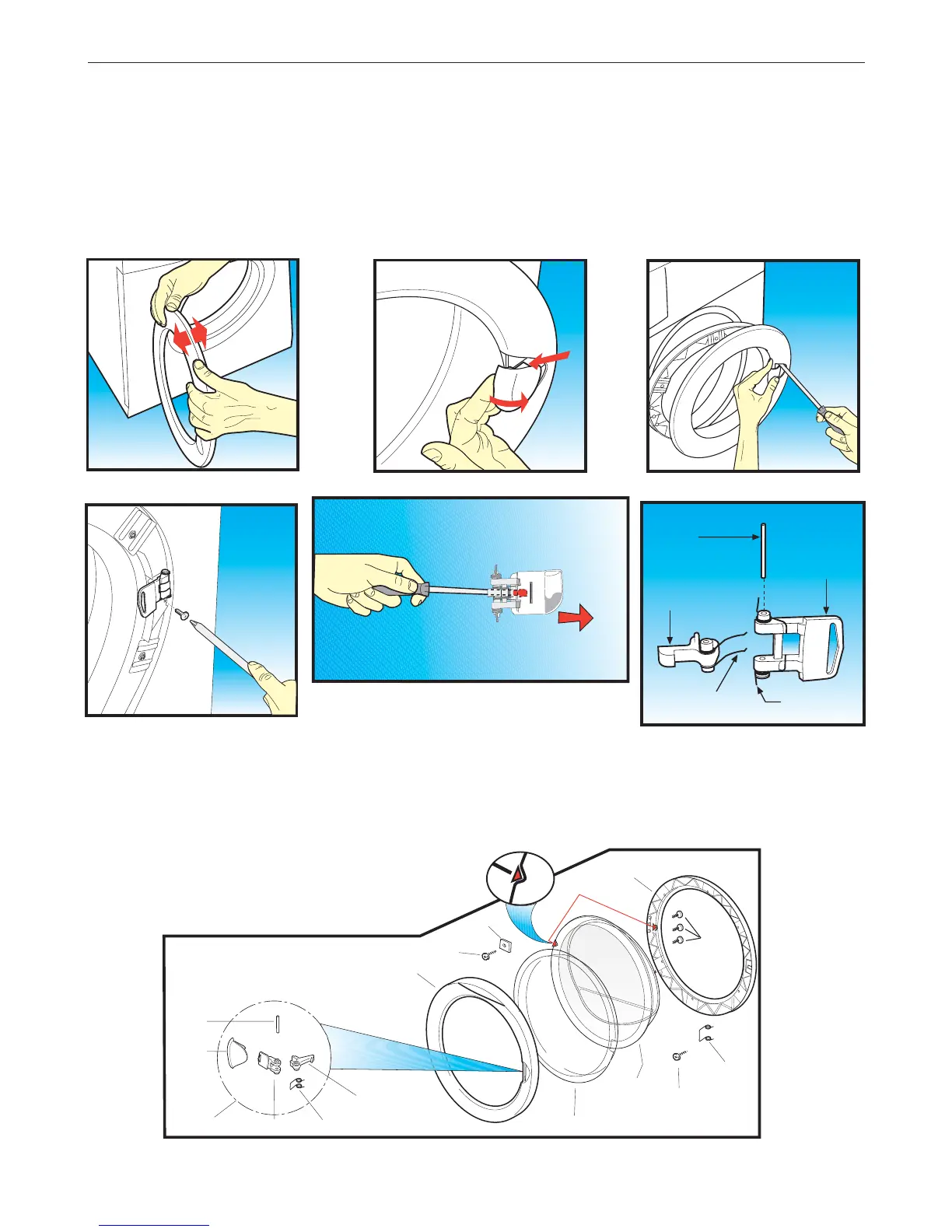

Step 5 Removing the door handle assembly (E090) and/or the door surround (E050):
(a) Open the machine door.
(b) Lever off the top part of the door surround using your hands to access the two screws (E150)
securing the handle return spring (E160). Then remove the screws using a cross-head screwdriver.
(c) Remove the spring (E160) noting its position, then extract the entire handle assembly.
(d) To re-assemble, follow the same procedure in reverse order, taking care to assemble the handle
(E080) last.
Step 6 Removing the door glass (E040):
(a) Follow Step 5.
(b) Unscrew the six screws (E100) and the six glass fixing plates (E110). Then remove the glass.
(c) To re-assemble, follow the same procedure in reverse order, making sure that the door glass
is installed in the correct position (see index mark on drawing). Fit the handle (E080) last.
