Supra SW5L65D - Removing the Thermistor And;Or Fixed Thermostat; Removing the Upper Counterweight

G005 or G044
G560
G570
BOSTIK
G019
G440
G440
G430
G030
G600
G590
G320
G010
G200
G020
G300
G290
G014
G043
G042
For high-
speed spin
only
G030
G020
G066
G043
G065
G590
G065
G063
G042
G200
G440
G430
G010
For 47 litre
polypropylene
tubs
For 42 litre
polypropylene tubs
For 42 litre tubs

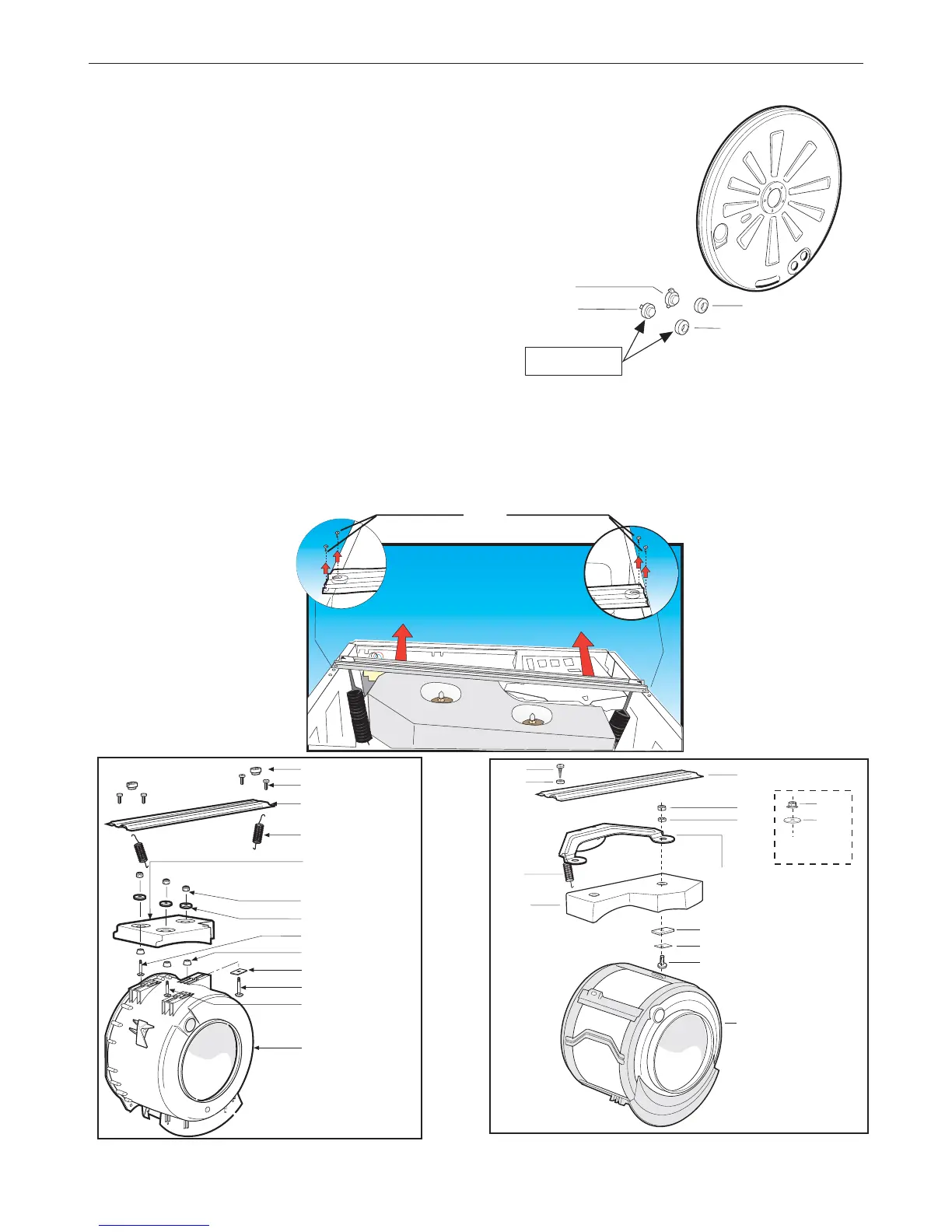

Step 17 Removing the upper counterweight (G020):
(a) Remove the top cover (Step 1).
(b) Remove the two locknuts (G290) or (G042) and the two washers (G300) or (G043) securing the
counterweight, lower the oscillating unit and move it to the rear, then remove the counterweight vertically.
In the case of a stainless steel tub, first remove the four fixing screws (G440) of the cross-member on
which the springs (G010) are anchored and then move the oscillating unit forward.
(c) To re-assemble, follow the same procedure in reverse order.
Step 16 Removing the thermistor (G005) and/or fixed thermostat (G560):
(a) Remove the rear cover (Step 2).
(b) Disconnect the wiring, noting the position of each wire.
(c) Use a flat screwdriver as a lever between the thermistor (G005)
and the gasket (G570) to remove the thermistor.
(d) To re-assemble, follow the same procedure in reverse order.
When re-assembling, clean off any hardened sealant residues
from the component housing. Refit the component using a new high-
temperature and water resistant sealant (Bostik type), spreading
the sealant around the circumference of the capsule and avoiding
the part in contact with water.
