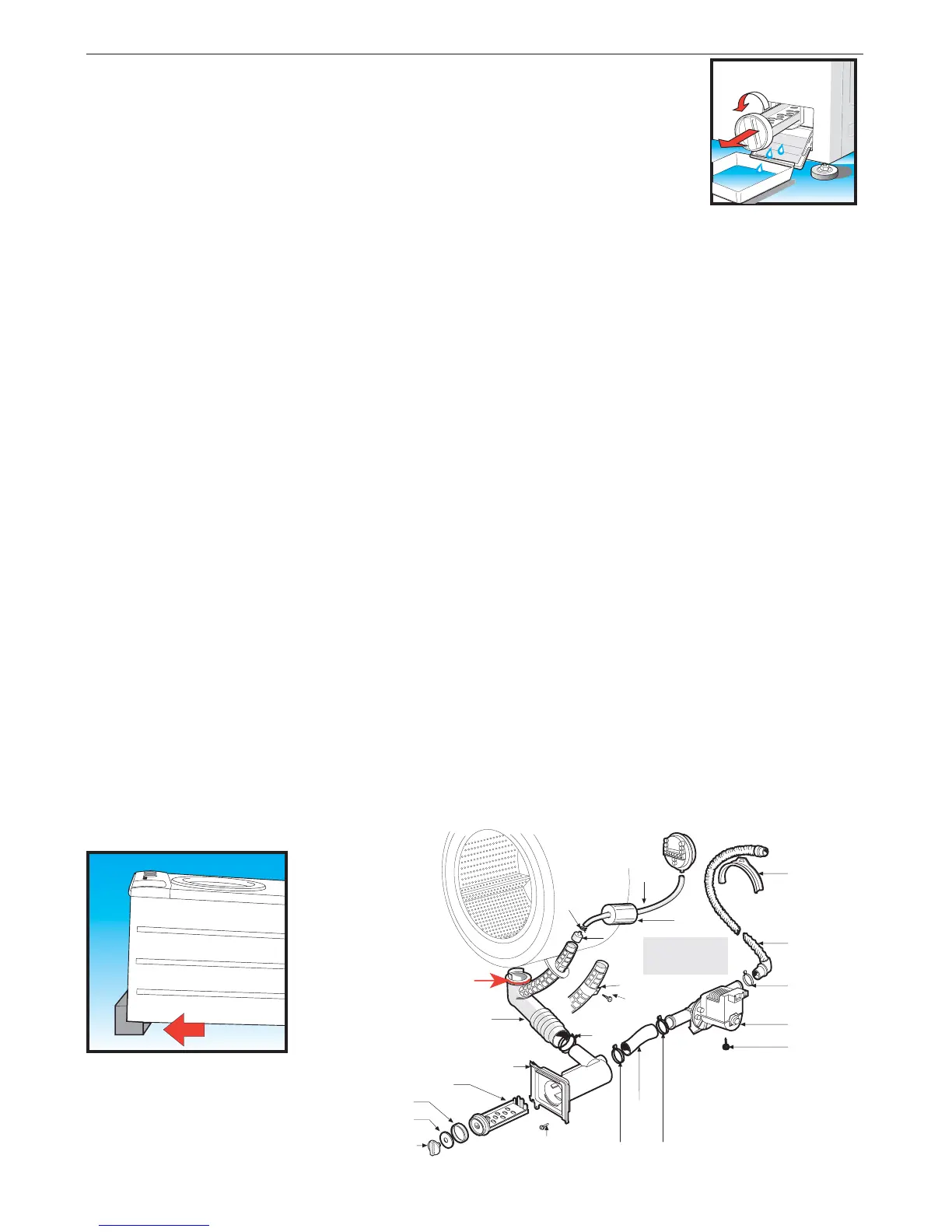

Step 19 Removing and/or replacing:
- the drain hose (F090)
- the electric drain pump (F010)
- the union (F080) between the electric pump (F010) and the filter body
(F020)
- the drain coupling (F070) between the tub and filter body (F020)
COMMON OPERATIONS:
(a) Remove the rear cover (Step 2).
(b) Use a shallow container capable of holding the approximately half a litre of
water that remains in the filter at the end of the wash cycle.
(c) Open the filter door, release the filter cap (F060) without removing it completely, then remove the filter.
Removing the drain hose (F090):
(d) Use a pair of pliers to release hose clip (F150) and slide it towards the drain pump, then remove the hose.
Removing the electric drain pump (F010):
(e) Disconnect the wiring.
Release hose clip (F100) and slide it onto the rubber union (F080). Remove rubber union (F080) from
the electric pump (F010).
From the bottom of the machine, remove the two screws (F130) using a 10 mm socket. Remove the
electric pump from its housing.
Removing union F080:
(f) All the above operations (points a, b, c) must be carried out, except for the removal of the electric pump
(F010) and drain hose (F090).
To remove union (F080), use a pair of pliers to slacken the two hose clips (F100),
For 33 cm and 39 cm washing machines:
Removing union F080:
(f) All the operations reported above must be carried out.
Use a crosshead screwdriver to remove the two screws (F120) securing the filter body (F020) to
the cabinet.
Use a 7 mm open-ended spanner to slacken hose clamp (F110) and then remove the water drain
coupling (F070).
Remove the entire assembly consisting of the following parts from the back of the washing machine:
- the drain pump (F010)
- the drain coupling union (F080)
- the filter body (F020)
To remove union (F080), use a pair of pliers to slacken the two hose clips (F100),
Removing the drain coupling (F070):
(g) Lie the machine on its back on a protective surface in order not to damage the solenoid valves.
Slacken the hose clip (F110) (filter body side - F020) using a 7 mm box spanner or flat screwdriver.
Remove the pressure switch pipe by slackening hose clip (F200), then remove coupling (F070)
from the tub.
Rotate the pressure switch chamber support to allow the coupling to be extracted, then recover the
pressure switch pipe connector (G680).
Clean any hardened sealant from the drain hole in the tub.
(h) To re-assemble, follow the same procedure in reverse order, taking care to apply new sealant
(BOSTIK type) between the coupling (F070) and the hole in the tub
