16 Electrical connection

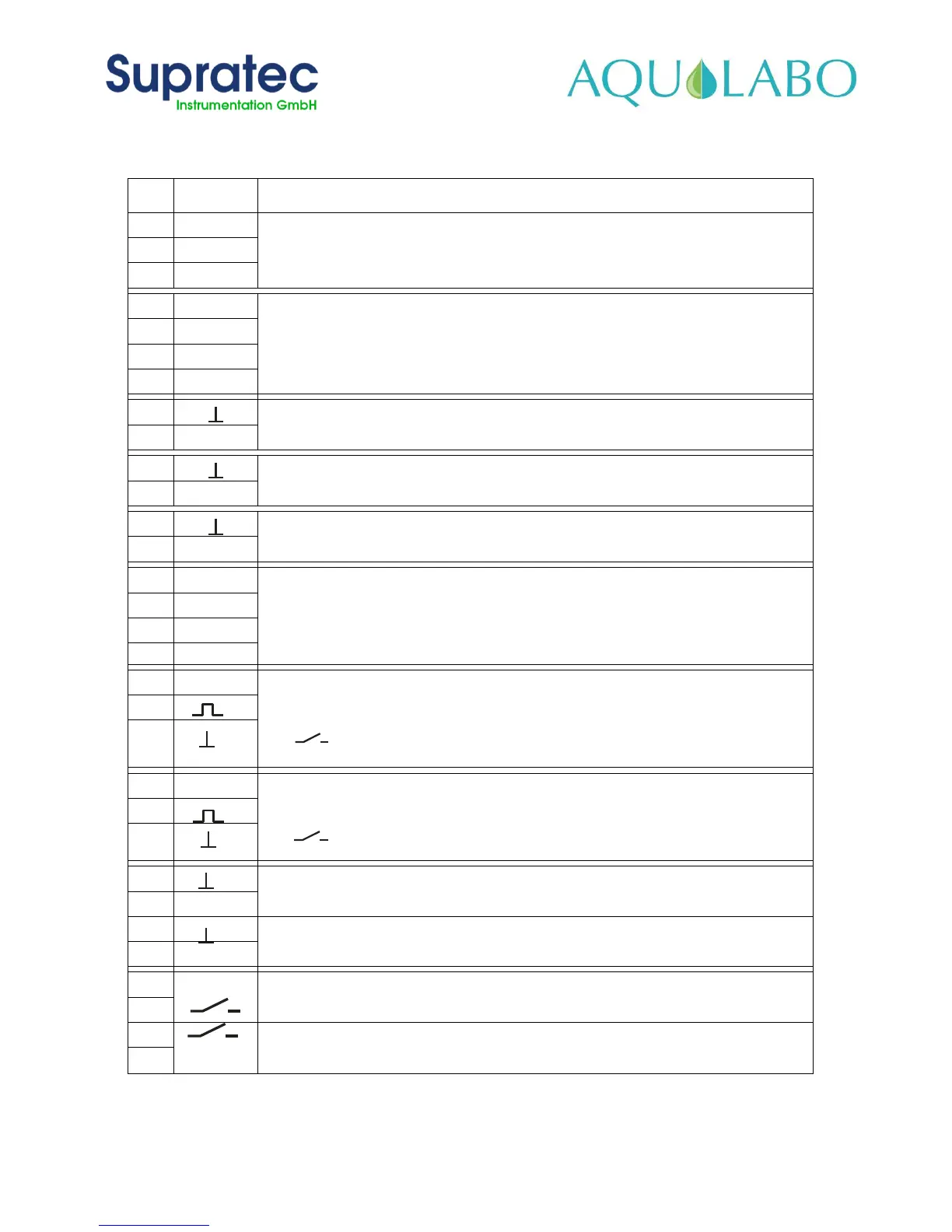

16.1 Assignment of terminals
No.
Post
Function
L
L
Power supply (see nameplate)
Warning: The voltage on the nameplate must be complied with.
N
N
PE
PE
PE
PE
PE terminal block
PE
PE
PE
PE
PE
PE
1
Measurement input 1, e.g. pH measurement
2
+
4
Measurement input 2, e.g. Redox or 0/4-20 mA measurement
with internal jumper
5
+
6
Pt 100 or Pt 1000 temperature sensor connection
7
+
10
Add-on module connection
Please see the module description for more information about assignment.
11
12
13
20
+ 12V
Digital input 1 - pulse input or switching input
Contact closed = controller shutdown
21 22
21
22
23
+ 12V
Digital input 2 - pulse input or switching input
24 25
24
25
30
Analog output 1 0/4...20 mA (500Ω load)
31
+
32
Analog output 2 0/4...20 mA (500Ω load)
33
+
70
Digital output 1 max. 200mA / 30V
e.g. For monitoring a membrane metering pump
71
72
Digital output 2 max. 200mA / 30V
e.g. For monitoring a membrane metering pump
73
