Supratec S200 - 7 Use of Measurements Provided by a Modbus RS485 Sensor; 7.1 OPTOD Digital Optical Sensor for Measuring Dissolved Oxygen

21
User Manual S200 Open
Update April 2018

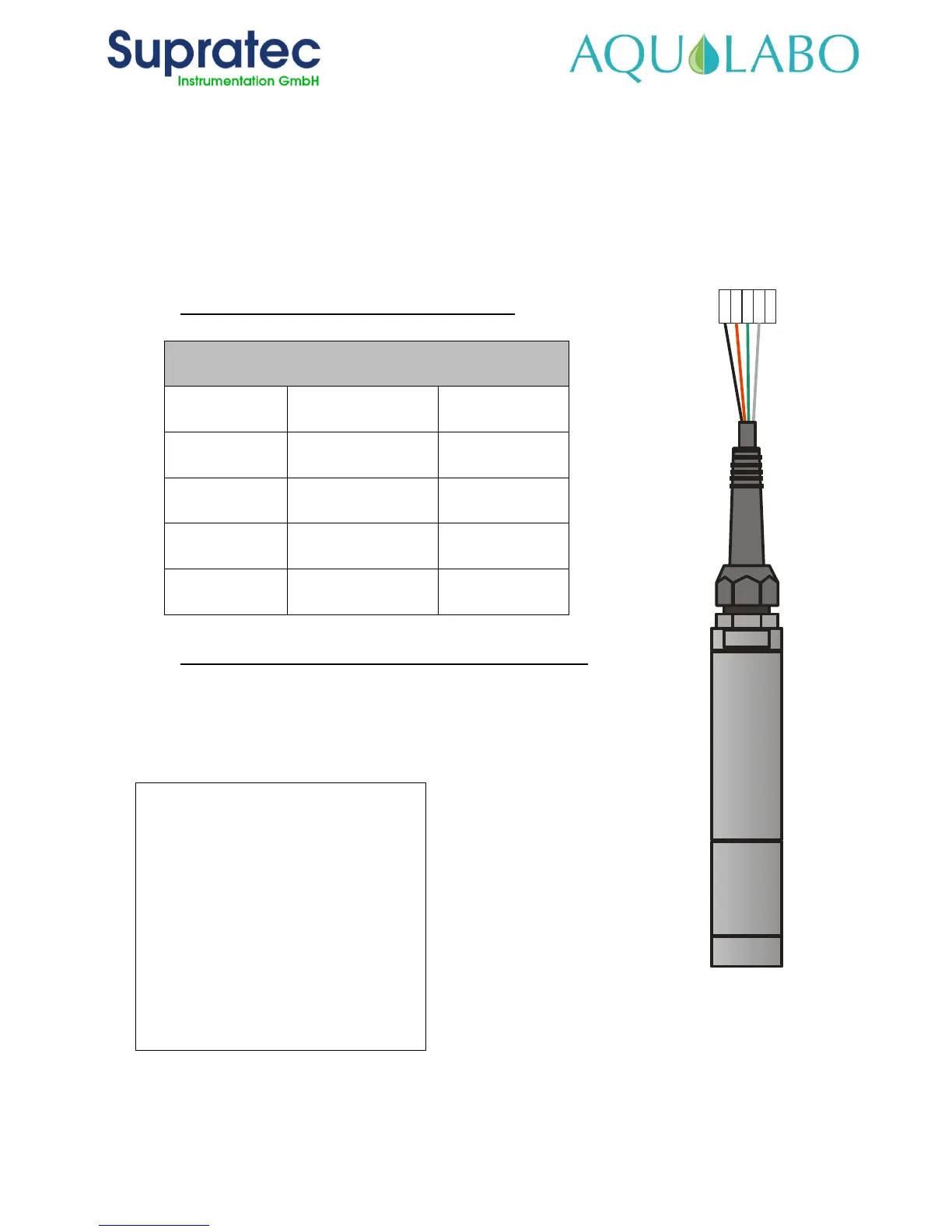

Assignment of terminals
Color of wires
Operation
Union
Black
Ground
Terminal 90
Red
DC 12V +
Terminal 91
Green
RS485 - (B)
Terminal 92
White
RS485 + (A)
Terminal 93
7 Use of measurements provided by a Modbus RS485 sensor
7.1 OPTOD digital optical sensor for measuring dissolved oxygen
MODBUS RTU
TERMINAL .RS485
90 91 92 93 94
7.1.1 Reminder of connection to the terminal:
7.1.2 Setting / configuring of displayed measurements
The operator has access to the range of parameters from a digital
sensor such as the OPTOD from the BASIC SETTINGS sub-
menu.
Calibration
Temp.
Compens./
Controller
setting
Manual mode
Time / date
↕→
Basic
settings
Service
