MAINTENANCE
Figure 10
Figure 11
Outer Edge
Call your local dealer to have the outer edge replaced when
it begins to look like .
Leading Edge
Call your local dealer to have the leading edge replaced
when it begins to look like .
Auger Timing
If, for any reason, the augers need to be removed, it is important that they are timed when installed to prevent the augers
from colliding.
If, for any reason, the driveshaft between the gearboxes needs to be removed for service or maintenance it is important to
ensure that the augers remain timed prior to the installation of the driveshaft. (See 24)

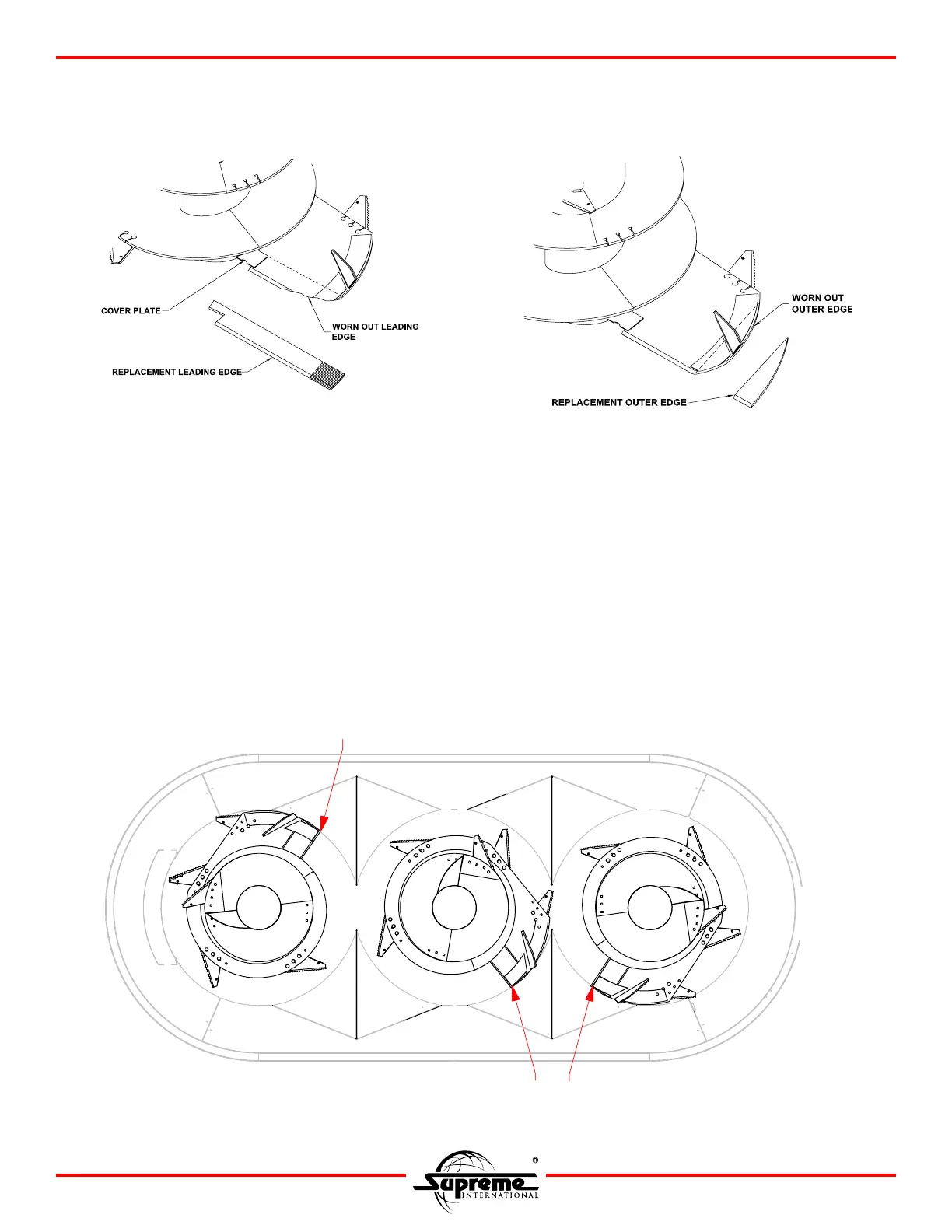

The leading edge of the front auger should be at approximately the 11 o’clock position when viewed from the front. The
second auger’s leading edge should be set to an approximate 8 o’clock position, and the third’s auger in a 4 o’clock
position when viewed the front of the tub.
Figure 12
FOR MODELS WITH A THIRD AUGER
FOR MODELS WITH TWO AUGERS
Front of tub
with platform
and motor
123
