396-3815Y1 SureFire PumpRight for Raven RCM 11 Revised 01/16/2018
701-20521-00
End Cap
400-1036A2
7-12 Row
Bracket
101-100075BRB
1” MPT x 3/4” HB
The full flow column is
typically used with rates over 10
GPA on 30” rows. For rates less
than 10 GPA SureFire recommends
the low flow columns with 1/4” push
to connect outlet fittings.
The full flow columns are
most often assembled with 3/8”
hose barb outlets. See the low flow
info below for the difference
between full and low flow columns.
701-20460-95
Full Flow Col-
umn w/ 3/8”
HB Outlet
701-20525-00
Center Fed Tee
with Gauge Port
380-1001
Fits 7”x7” Tube
Full Flow Indicators w/ 3/8” Hose Barb Outlet
Column Flow (GPM): .05-2.70 GPM
Equivalent Application Rate
On 30” Rows at 6 MPH: 2-70 GPA
Ball Selection for 30” Rows
GPM GPA Ball
.05-.18 2-6 Green Plastic*
.09-.30 3-10 Red Plastic*
.31-.72 10-20 Maroon Glass
.40-2.1 13-70 Stainless Steel (1/2”)
*Plastic balls may float on heavier fertilizers, such as 10-34-0.
SureFire recommends using the low flow column for these
flow rates.
1/4” x 2”
Bolt

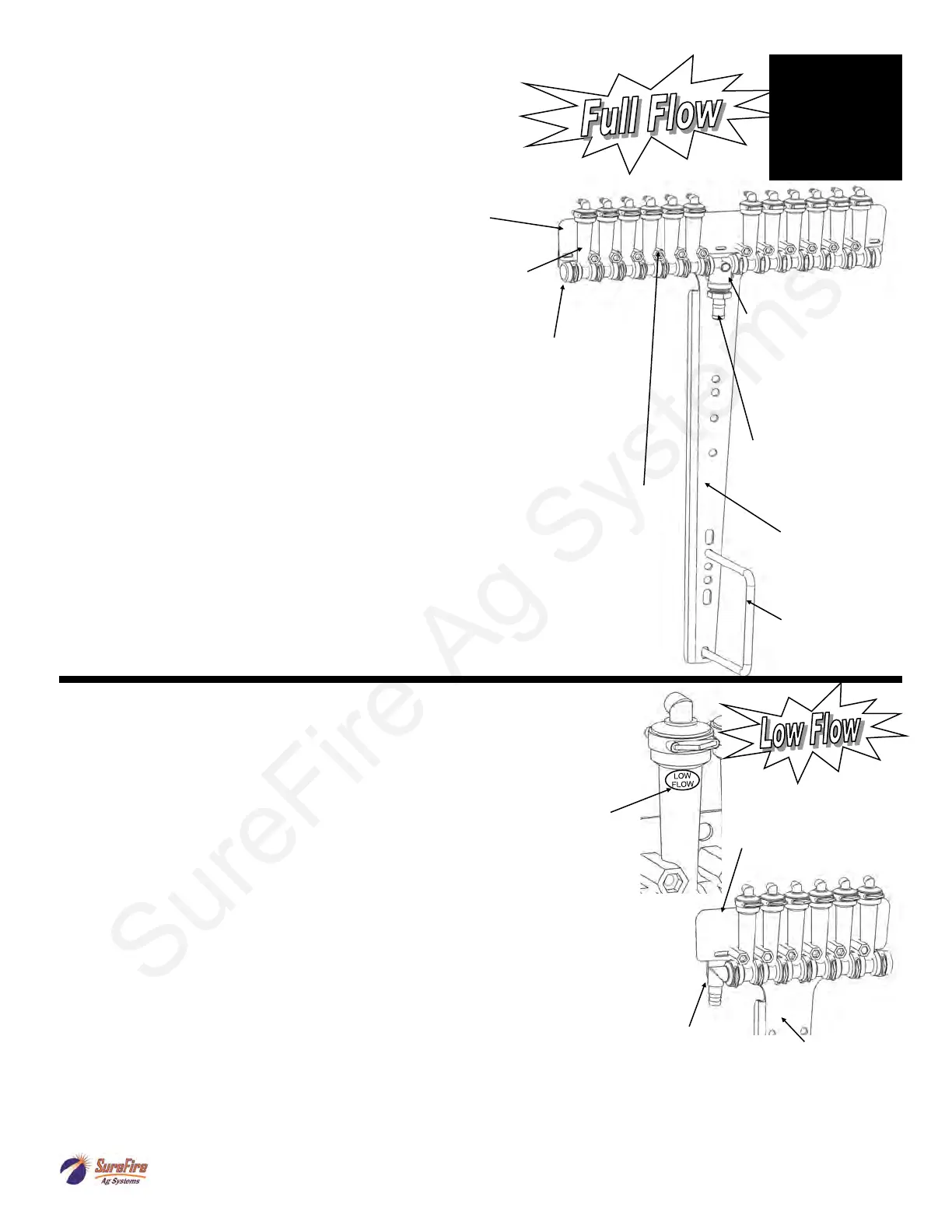

Floating Ball Flow Indicators-
Full Flow Column (mostly 3/8” HB)
B
Components
Liquid
400-2010A1
12 Row White
Visibility Back-
er Plate
400-1037A1
3-6 Row
Bracket
400-2011A1
6 Row White Visi-
bility Backer Plate
701-20513-
00 3/4” HB
90 degree
inlet
Low Flow Column (mostly 1/4” QC)
The low flow column has a smaller internal diameter. This means a
heavier ball can be used to monitor a smaller flow.
SureFire uses the low flow columns with 1/4” push to connect outlet
fittings. The flow capability of 1/4” tubing and the low flow column are a
great pair for rates on 30” rows under 10 GPA.
Externally, the low flow column can only be identified by “Low Flow”
molded into one side of the column. All the same fittings work with low flow
and full flow columns.
Low Flow Indicators w/ 1/4” Push to Connect Outlet
Column Flow (GPM): .03-.30 GPM
*** Low Flow Column with 3/8” hose barb .03 - .70 GPM
Equivalent Application Rate
On 30” Rows at 6 MPH (1/4” QC): 1-10 GPA
Ball Selection for 30” Rows
GPM GPA Ball
.03-.09 1-3 Green Plastic*
.05-.14 2-4 Red Plastic*
.10-.18 3-6 Maroon Glass
.15-.70 5-10 Stainless Steel (1/2”)
*These balls may float on heavier fertilizers, such as 10-34-0. Use Maroon
Glass in this case.
